1. LCD DISPLAY – Indicates test results. Backlit, 320 x 240 pixels
display
2. OK BUTTON – Confirms a selection (or action) from a menu.
3. ESC BUTTON – Cancels a selection (or action) from a menu or
returns to the menu.
4. LEFT SCROLL BUTTON –Move to left menu in main menu
mode; When more than one screen of data is retrieved, use the
left button could move to previous screens.
5. RIGHT SCROLL BUTTON –Move to right menu in main menu
mode; When more than one screen of data is retrieved, use the
right button could move to next screen for additional data.
6. UP SCROLL BUTTON –Moves up through menu items in main
menu mode； When more than one screen of data is retrieved,
use the up button could move to previous screens.
7. DOWN SCROLL BUTTON –Moves down through menu items in
main menu mode；When more than one screen of data is
retrieved, use the down button could move to next screen for
additional data.
8. OBD-16PIN CONNECTOR – Connects the scan tool to
vehicle’s Data Link Connector (DLC).
9. “I/M” BUTTON - A snapshot of emission-related systems states -
i.e., misfire monitor, EVAP system monitor etc.

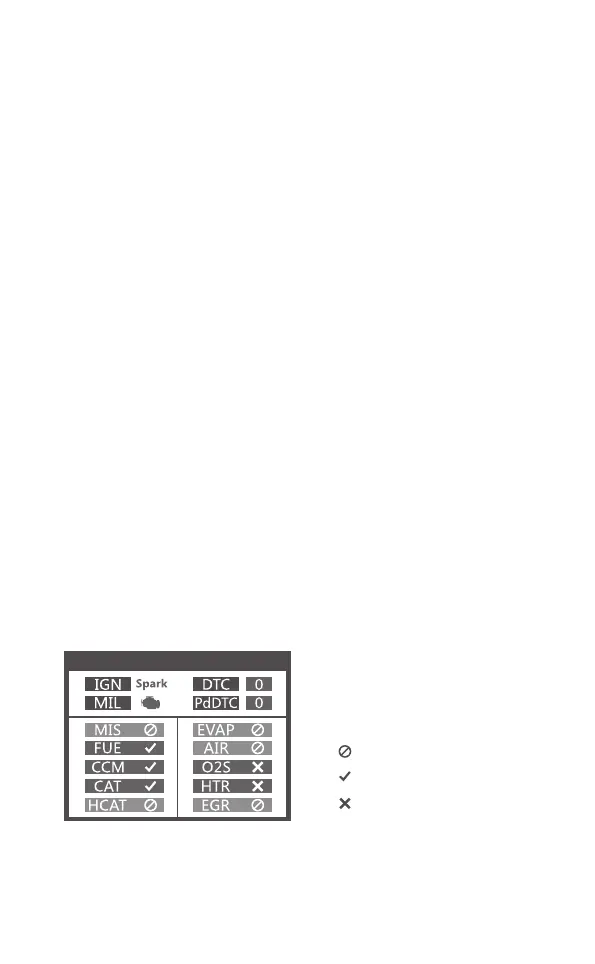

I/M Readiness
Remarks:
MIL Yellow- Dashboard MIL ON
MIL Gray-Dashboard MIL OFF
-not support
-complete
-not complete
EN3
