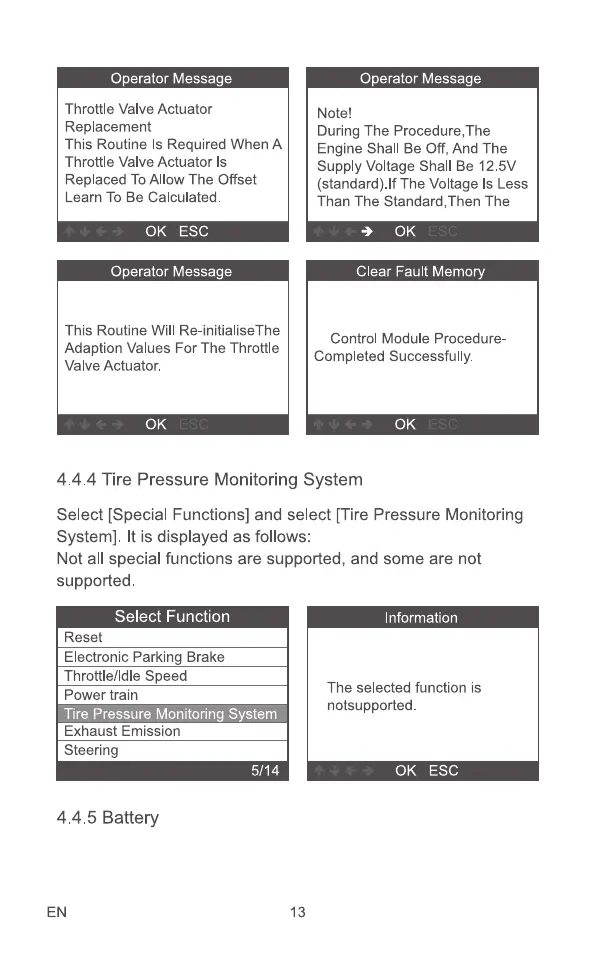

Operator Message
Throttle Valve Actuator
Replacement
This Routine Is Required When A
Throttle Valve Actuator Is
Replaced To Allow The Offset
Learn To Be Calculated
0K ESC
Operator Message
This Routine Will Re-initialiseThe
Adaption Values For The Throttle
Valve Actuator.
0K
Operator Message
Note!
During The Procedure, The
Engine Shall Be Off, And The
Supply Voltage Shall Be 12.5V
(standard).lf The Voltage Is Less
Than The Standard, Then The
0K
Clear Fault Memory
Control Module Procedure-
Completed Successfully.
0K
4.4.4 Tire Pressure Monitoring System
Select [Special Functions] and select [Tire Pressure Monitoring
System]. It is displayed as follows:
Not all special functions are supported, and some are not
supported.
Select Function
Reset
Electronic Parking Brake
Throttle/ldle Speed
Power train
Tire Pressure Monitoring System
Information
The selected function is
Exhaust Emission
Steering
44.5 Battery
EN
5/14
notsupported.
0K ESC
13
