Information
Has been performed,
Press [0K] to continue.
0K

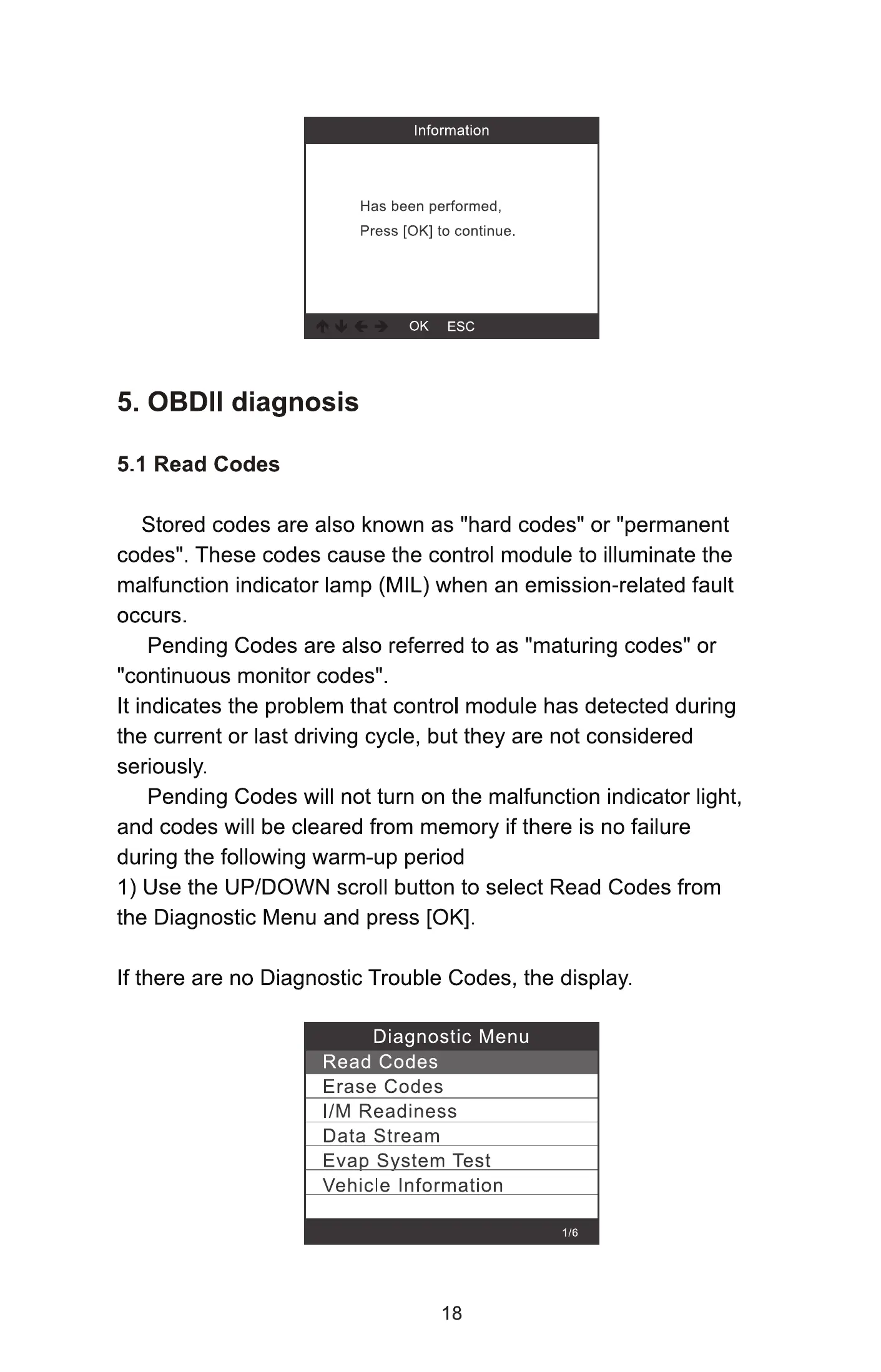

5. OBDII diagnosis
5.1 Read Codes
ESC
Stored codes are also known as "hard codes" or "permanent
codes". These codes cause the control module to illuminate the
malfunction indicator lamp (MIL) when an emission-related fault
occurs.
Pending Codes are also referred to as "maturing codes" or
"continuous monitor codes".
It indicates the problem that control module has detected during
the current or last driving cycle, but they are not considered
seriously.
Pending Codes will not turn on the malfunction indicator light,
and codes will be cleared from memory if there is no failure
during the following warm-up period
1) Use the UP/DOWN scroll button to select Read Codes from
the Diagnostic Menu and press [0K].
If there are no Diagnostic Trouble Codes, the display.
Diagnostic Menu
odes
Erase Codes
I/M Readiness
Data Stream
Eva S stem Test
Vehicle Information
1/6
18
