Andamiro AVENGERS - Exploded Views and Part Identification; Card Dispenser Component Details

28)

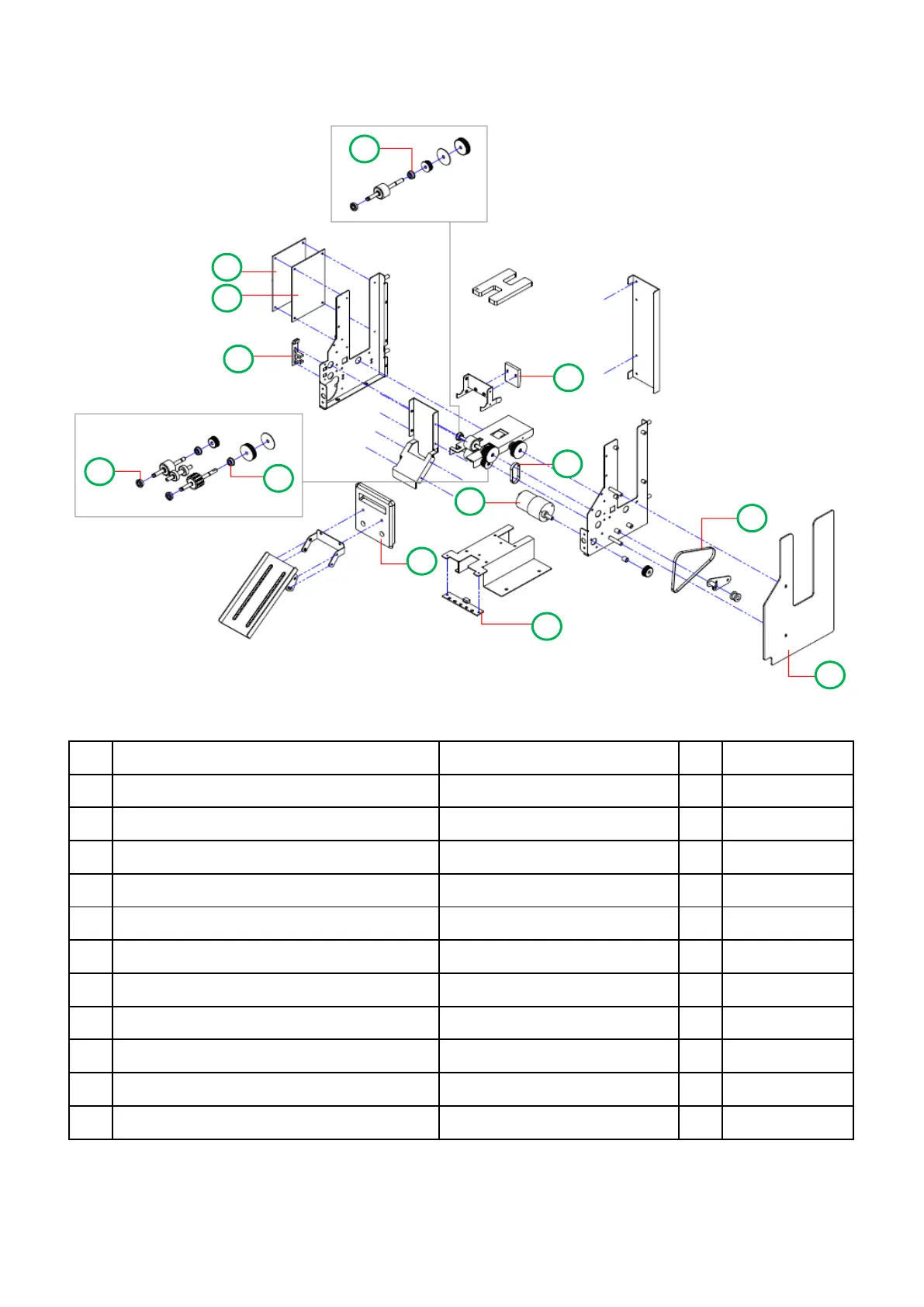

CARD DISPENSER PART
* CARD VERSION ONLY
11
BEARING
F686ZZ
6
MZZZ0BEA094
9
CARD DISPENSER TIMMING BELT-A
52MXL
1
MZZZ0BEL018
10
CARD DISPENSER TIMMING BELT-B
147MXL
1
MZZZ0BEL019
7
CARD DISPENSER IO PCB ASS'Y
-
1
ASBP0PCB008
8
MOTOR
KGC-3429
1
MZZZ0MOT089
5
PHOTO INT-1 PCB ASS'Y
ANGLE TYPE
1
AZZZ0PCB103
6
LED PCB ASS'Y
-
1
AMUM0PCB005
3
CARD OUTLET GUIDE BLOCK
-
1
MZZZ0PLA042
4
CARD DISPENSER FRONT MASK MOLD
-
1
MDCC0PLA009
1
CARD DISPENSER DECO COVER
PET 1T
1
AAV10ACP017
2
CARD DISPENSER IO PCB COVER
PET 1T
1
AAV20ACP041
NO
PART NAME
SPEC
Q'TY
CODE NO
11
3
10
1
6
4
11
11
9
8
2
7
5
1
- 44 -
