Page 5 of 14 • Andersen Ultimate 5th Wheel Connection (Gooseneck Mount) Installation Manual 1-2022 • www.AndersenHitches.com
12”
15
-1/2”
12-1/8”
15-1/2”
5-7/16”
5-7/16”
5-3/8”
5-3/8”
14-1/16”
10-9/16”
14”
10-5/8”
31-1/2”
31-1/2”
31-1/2”
31-1/2”
35-5/8”35-5/8”35-5/8”35-5/8”
18-5/16”18-5/16”14-5/16”14-5/16”
16-1/2”16-1/2”12-1/2”12-1/2”
13”13”9”9”
High Ball Position
High Ball Position
High Ball Position
High Ball Position
Base Height
Base Height
Base Height
Base Height
Low Ball Position
Low Ball Position
Low Ball Position
Low Ball Position

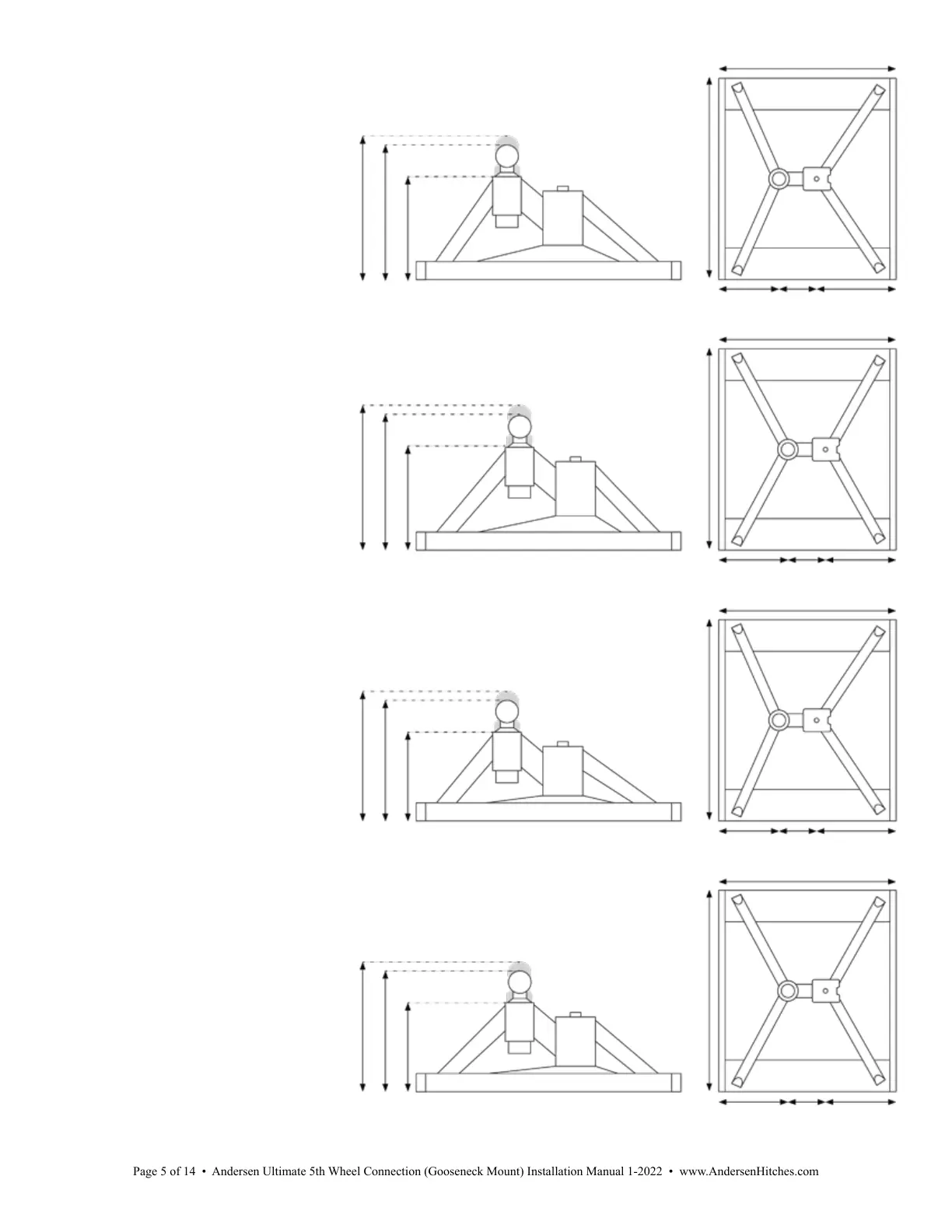

Standard Ultimate Connection
(#3220)
Ball Height & Base Dimensions
• Base Height: 13”
• Low Ball Position: 16-1/2”
• High Ball Position: 18-5/16”
Standard Ultimate Connection
Tool Box Version (#3220TBX)
Ball Height & Base Dimensions
• Base Height: 13”
• Low Ball Position: 16-1/2”
• High Ball Position: 18-5/16”
Lowered Ultimate Connection
(#3221)
Ball Height & Base Dimensions
• Base Height: 9”
• Low Ball Position: 12-1/2”
• High Ball Position: 14-5/16”
Lowered Ultimate Connection
Tool Box Version (#3221TBX)
Ball Height & Base Dimensions
• Base Height: 9”
• Low Ball Position: 12-1/2”
• High Ball Position: 14-5/16”
