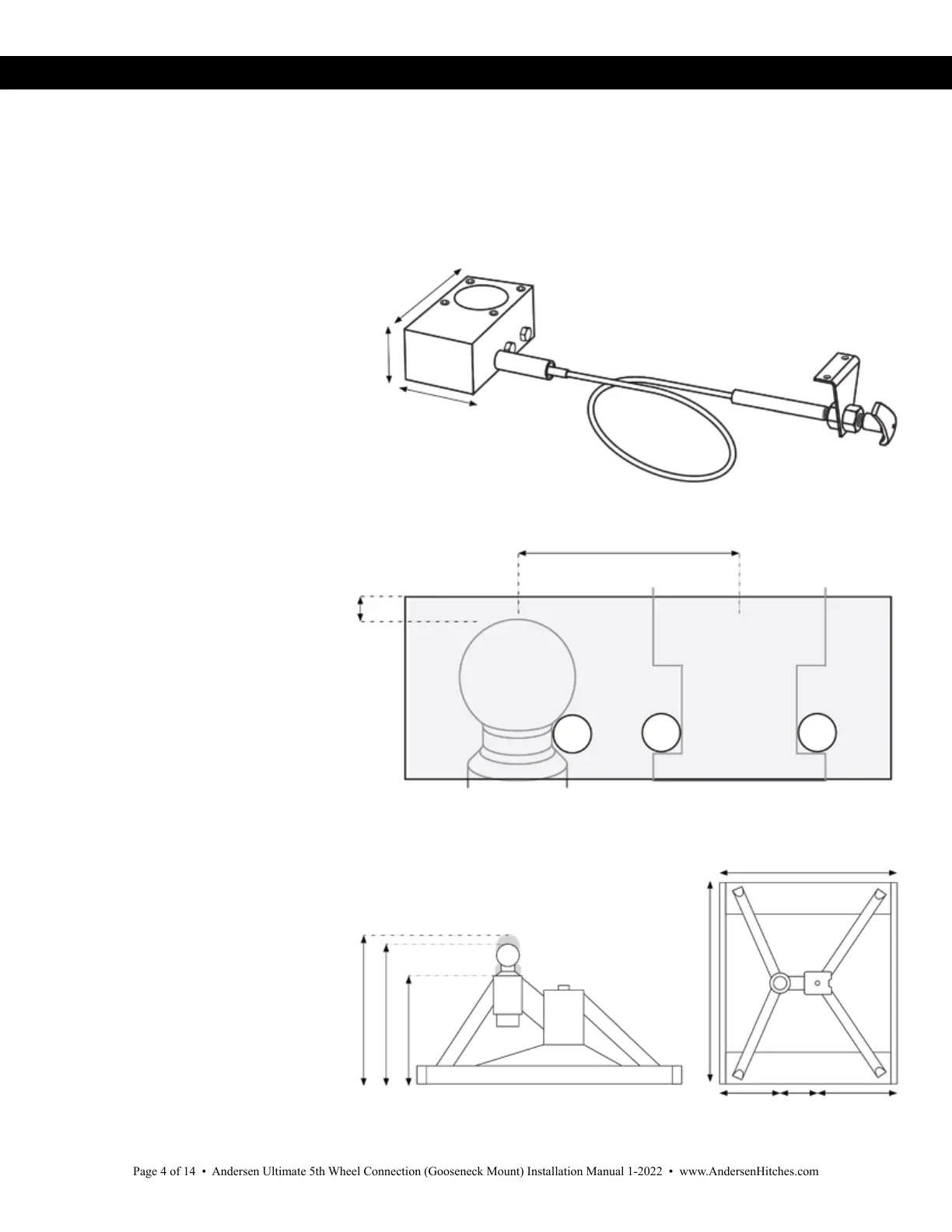

DIMENSIONS – Kingpin Coupler Block & Ultimate Connection Bases
4”
4” offset
1/2”
20-5/16”
18-1/2”
15”
12” 5-7/16” 14-1/16”
31-1/2”
35-5/8”
3”
8”
Ultimate Connection Ball
High Ball Position
Base Height
Low Ball Position
Raised Ultimate Connection
(#3217)
Ball Height & Base Dimensions
• Base Height: 15”
• Low Ball Position: 18-1/2”
• High Ball Position: 20-5/16”
King Pin Coupler Block
Side View
King Pin Coupler Block
(#3246)
Block Dimensions
King Pin
These measurements can be helpful before and during the installation process,
especially for turning clearance (see page 6) and side rail clearance (see page 7).
