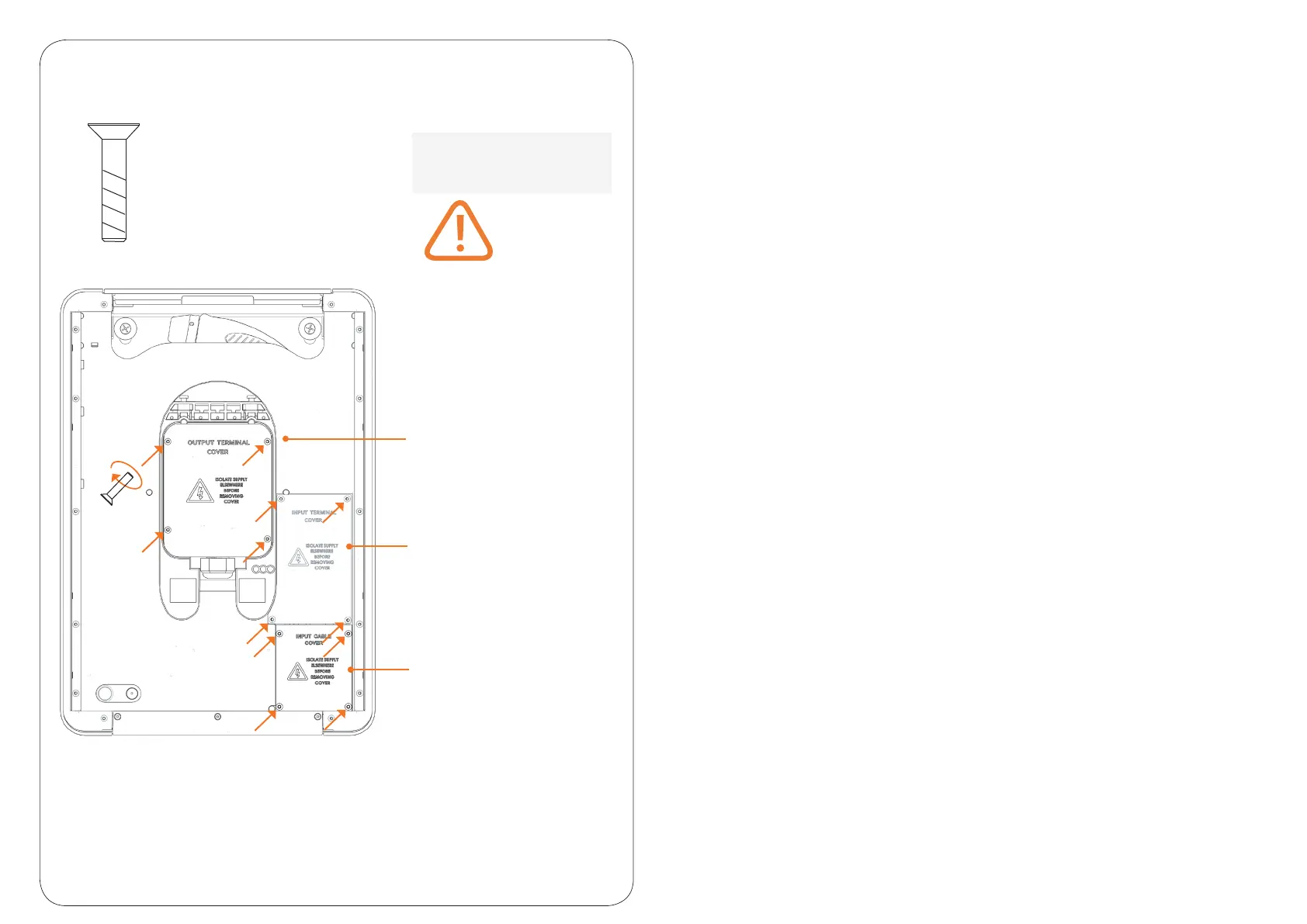

Step 6: Fit weather project covers
A: Fit Output terminal cover
Ensure seals are correctly
positioned and fixing
screws correctly torqued to
2.5nM
B: Fit input terminal cover
Ensure seals are correctly
positioned and fixing
screwscorrectly torqued
to 2.5nM
C: Fit input supply cover
Ensure seals are correctly
positioned and fixing
screwscorrectly torqued
to 2.5nM
x12
M3 x 16mm long
countersunk screw
steel
T
orque setting must be
2.5nM
