Intelligent room controller
TRC-D TECHNICAL MANUAL
Item Description
1 FIRE icon or FLAKE icon Fire icon for Heating action; Flake icon for Cooling action
2 ON/ACTIVE icon Indicate room controller ON status
3 SLEEP icon [not used]
4 CLOCK icon Indicate Protect mode
5 DOWN button Decrease setting / Previous item
6 UP button Increase setting / Next item
7 FAN SPEED button Toggle to change fan speed over Auto / Off / Stage I / Stage II / Stage III
8 POWER ON/OFF button Turn room controller on/off
9 MODE button Cooling/Heatingchangeover/Settingconrmation
10 HOUSE WITH THERMOMETER icon Indicate Anti-Freezing active
11 AUTO icon Automatic fan mode
12 FAN icon Indicate fan state
13 LCD Display temperature and operation data
14 MOON icon Indicate Economy mode
15 THERMOMETER icon Temperature set-point mode

2
3
4
5
6
7
8
9
10
11
12
13
14
15

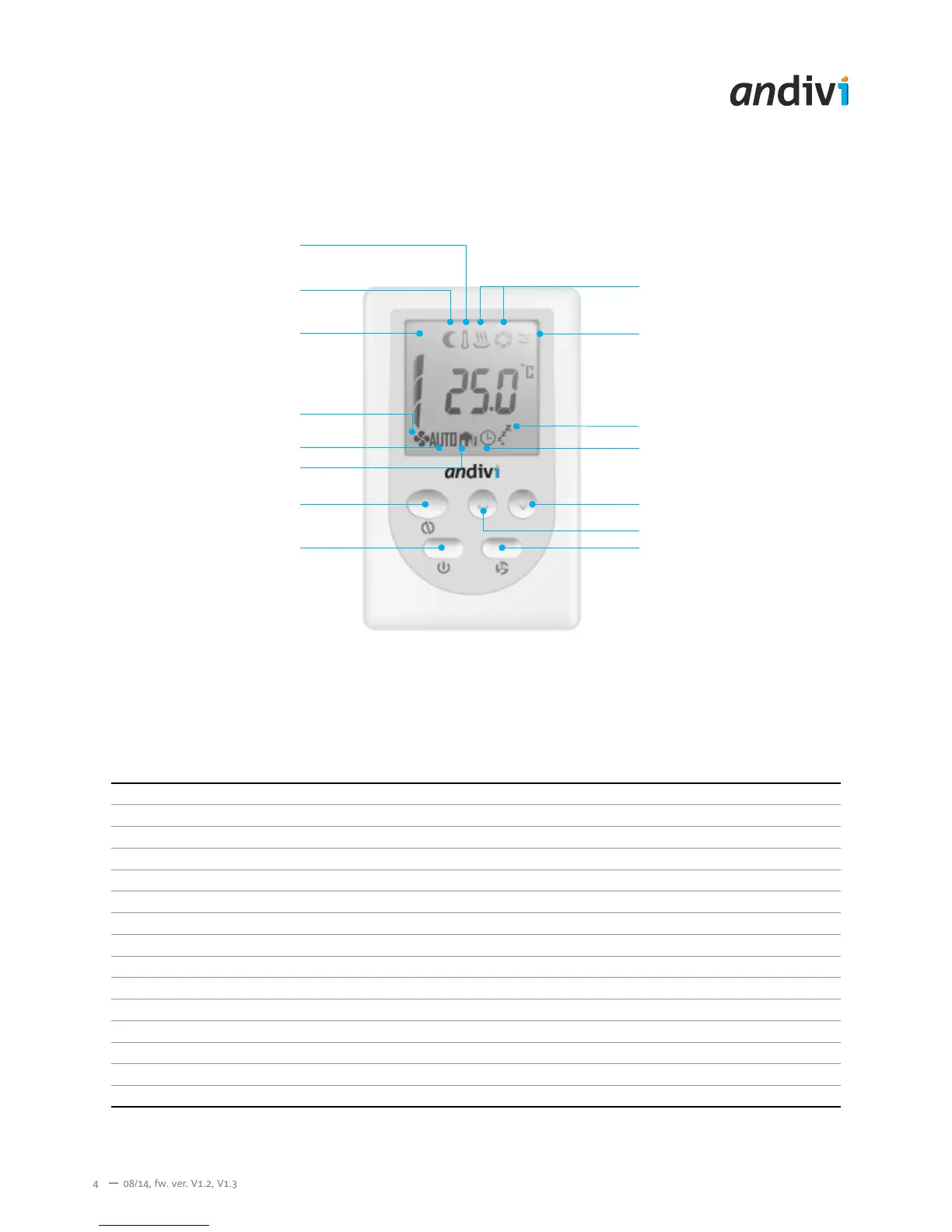

Fig 1-1: Front view
