Andivi TRC-d - Working Mode

Andivi – TRC-D – Technical Manual
7
08/14, fw. ver. V1.2, V1.3
1. For Cooling or Heating mode manually
selectable type (B, E), working mode
depends on the users’ setting.
2. For Cooling and Heating mode
automatical changeover type (C),
working mode depends on the Room
temperature as following:

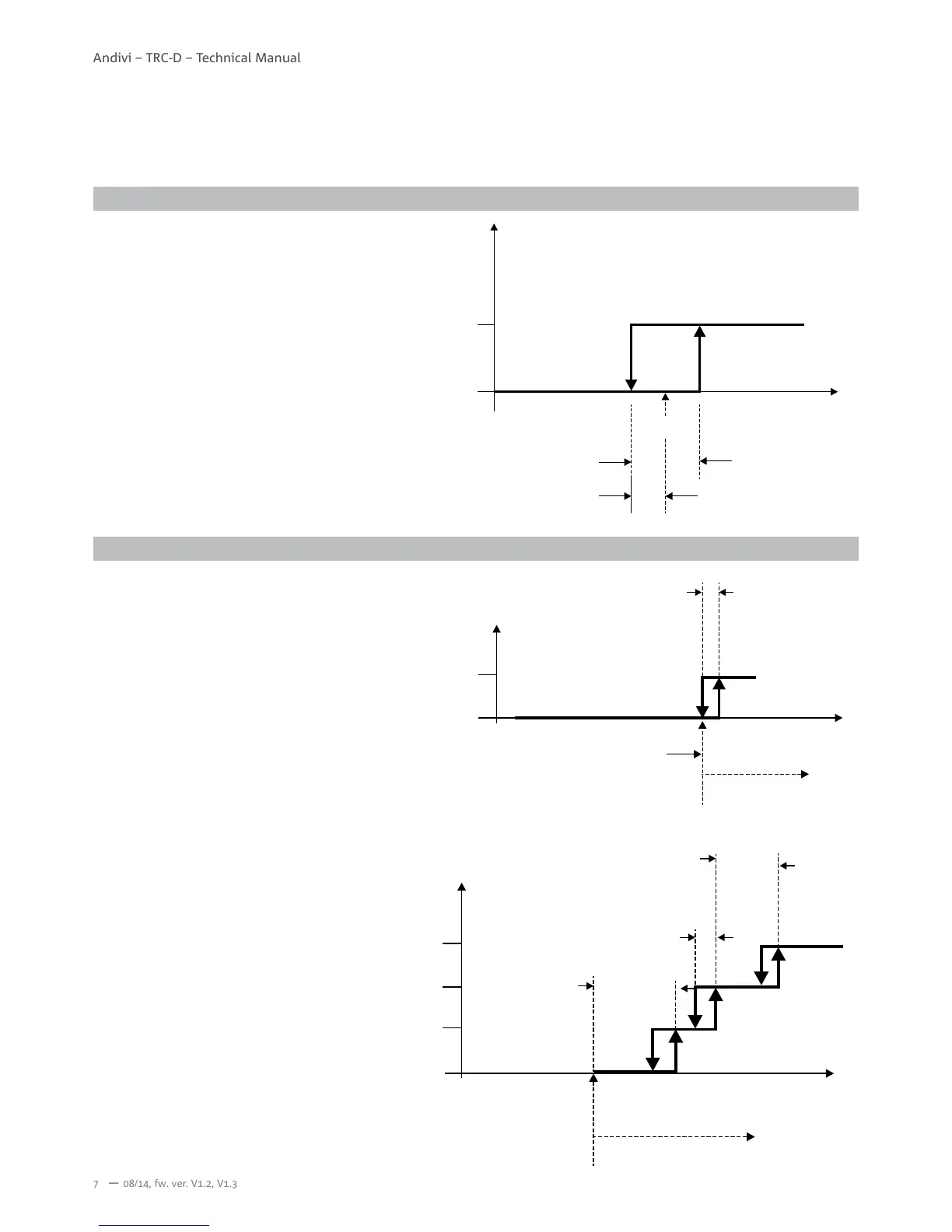

WORKING MODE
Room
Temperature
Dead Band
(DB)
½ DB
Cooling Mode
Heating Mode
Set-point
(SP)
COOLING MODE
Valve control for Cooling mode
FAN control for Cooling mode
Set-point
Cooling
Cooling
Set-point
Room
Temperature
1/3
Proportional
Band (PB)
1/3 PB
Stage
Differential
Valve
active
Valve
not active
Room
Temperature
Stage
Differential
Fan Stage III
Fan Stage III
Fan Stage III
Fan Off
Set-point
Cooling
Cooling
Set-point
Room
Temperature
1/3
Proportional
Band (PB)
1/3 PB
Stage
Differential
Valve
active
Valve
not active
Room
Temperature
Stage
Differential
Fan Stage III
Fan Stage III
Fan Stage III
Fan Off
