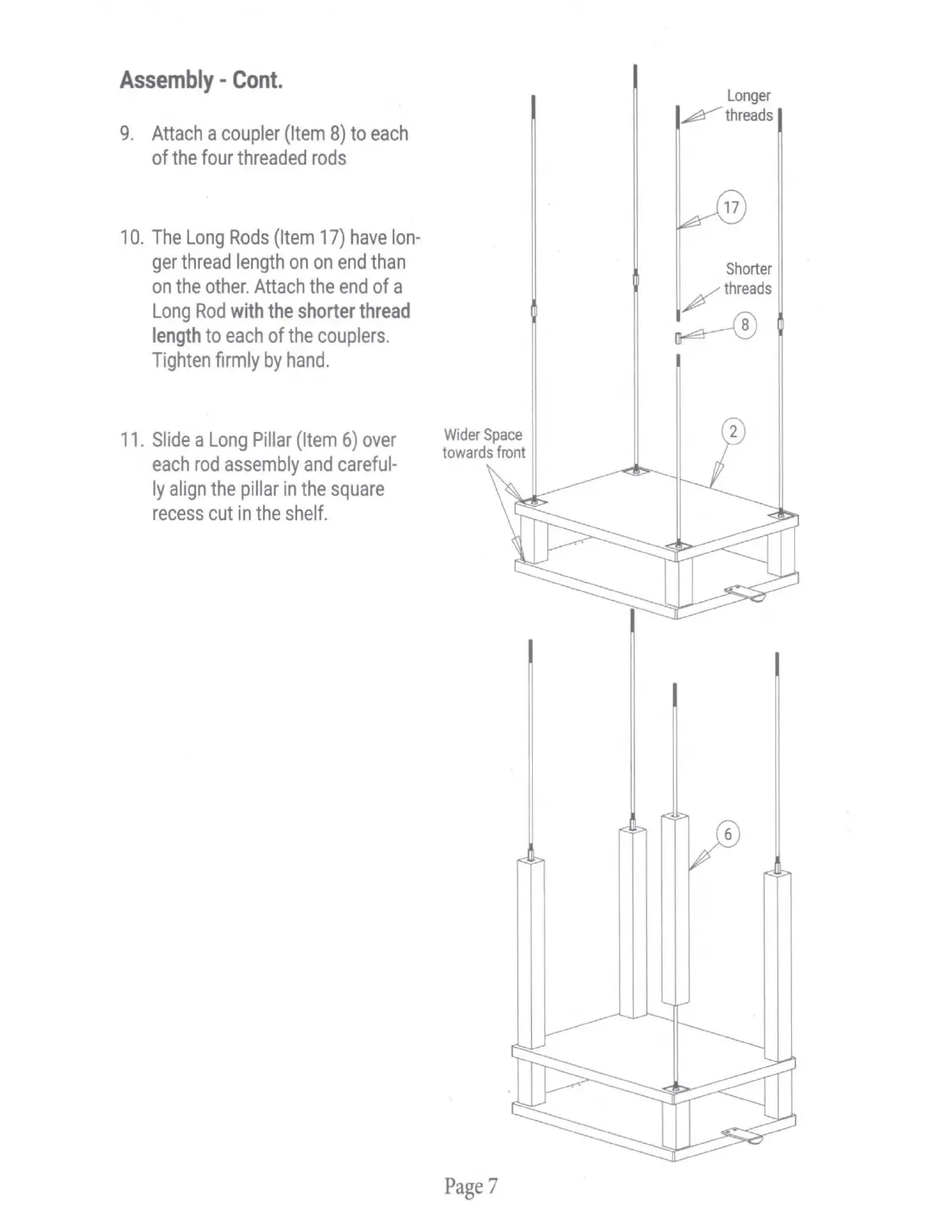

Assembly

-

Cont.

9.

Attach

a

coupler

(Item

8)

to

each

of

the

four

threaded

rods

10.

The

Long

Rods

(Item

17)

have

lon-

ger

thread

length

on on

end

than

on

the

other.

Attach

the

end

of

a

Long

Rod

with

the

shorter

thread

length

to

each

of

the

couplers.

Tighten

firmly

by

hand

.

11.

Slide

a

Long

Pillar

(Item

6)

over

each

rod

assembly

and

careful-

ly

align

the

pillar

in

the

square

recess

cut

in

the

shelf.

Wi

der

Space

towards

front

Page

7

Longer

~

threads

Shorter

/

threads

~
