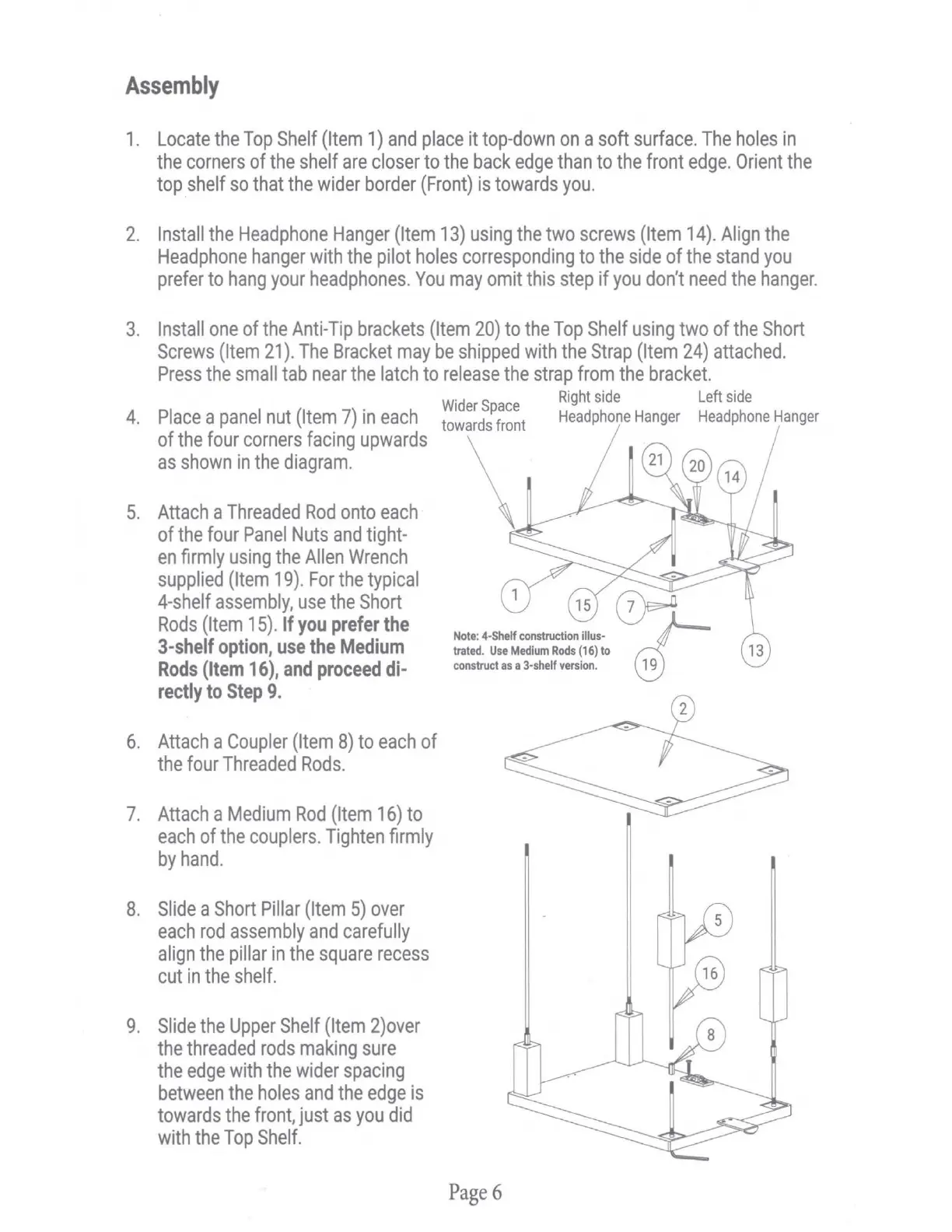

Assembly

1.

Locate

the

Top

Shelf

(Item

1)

and

place

it

top-down

on

a

soft

surface.

The

holes

in

the

corners

of

the

shelf

are

closer

to

the

back

edge

than

to

the

front

edge.

Orient

the

top

shelf

so

that

the

wider

border

(Front)

is

towards

you

.

2.

Install

the

Headphone

Hanger

(Item

13)

using

the

two

screws

(Item

14).

Align

the

Headphone

hanger

with

the

pilot

holes

corresponding

to

the

side

of

the

stand

you

prefer

to

hang

your

headphones

.

You

may

omit

this

step

if

you

don't

need

the

hanger.

3.

Install

one

of

the

Anti-Tip

brackets

(Item

20)

to

the

Top

Shelf

using

two

of

the

Short

Screws

(Item

21

).

The

Bracket

may

be

shipped

with

the

Strap

(Item

24)

attached

.

Press

the

small

tab

near

the

latch

to

release

the

strap

from

the

bracket.

4.

Place

a

panel

nut

(Item

7)

in

each

of

the

four

corners

facing

upwards

as

shown

in

the

diagram.

5.

Attach

a

Threaded

Rod

onto

each

of

the

four

Panel

Nuts

and

tight-

en

firmly

using

the

Allen

Wrench

supplied

(Item

19).

For

the

typical

4-shelf

assembly,

use

the

Short

Rods

(Item

15).

If

you

prefer

the

3-shelf

option,

use

the

Medium

Rods

(Item

16),

and

proceed

di-

rectly

to

Step

9.

6.

Attach

a

Coupler

(Item

8)

to

each

of

the

four

Threaded

Rods.

7.

Attach

a

Medium

Rod

(Item

16)

to

each

of

the

couplers.

Tighten

firmly

by

hand.

8.

Slide

a

Short

Pillar

(Item

5)

over

each

rod

assembly

and

carefully

align

the

pillar

in

the

square

recess

cut

in

the

shelf

.

9.

Slide

the

Upper

Shelf

(Item

2)over

the

threaded

rods

making

sure

the

edge

with

the

wider

spacing

between

the

holes

and

the

edge

is

towards

the

front,

just

as

you

did

with

the

Top

Shelf

.

Wider

Space

towards

front

\

Page6

Right

side

Left

side

Headphone

Hanger

Headphone

Hanger
