Main Parts

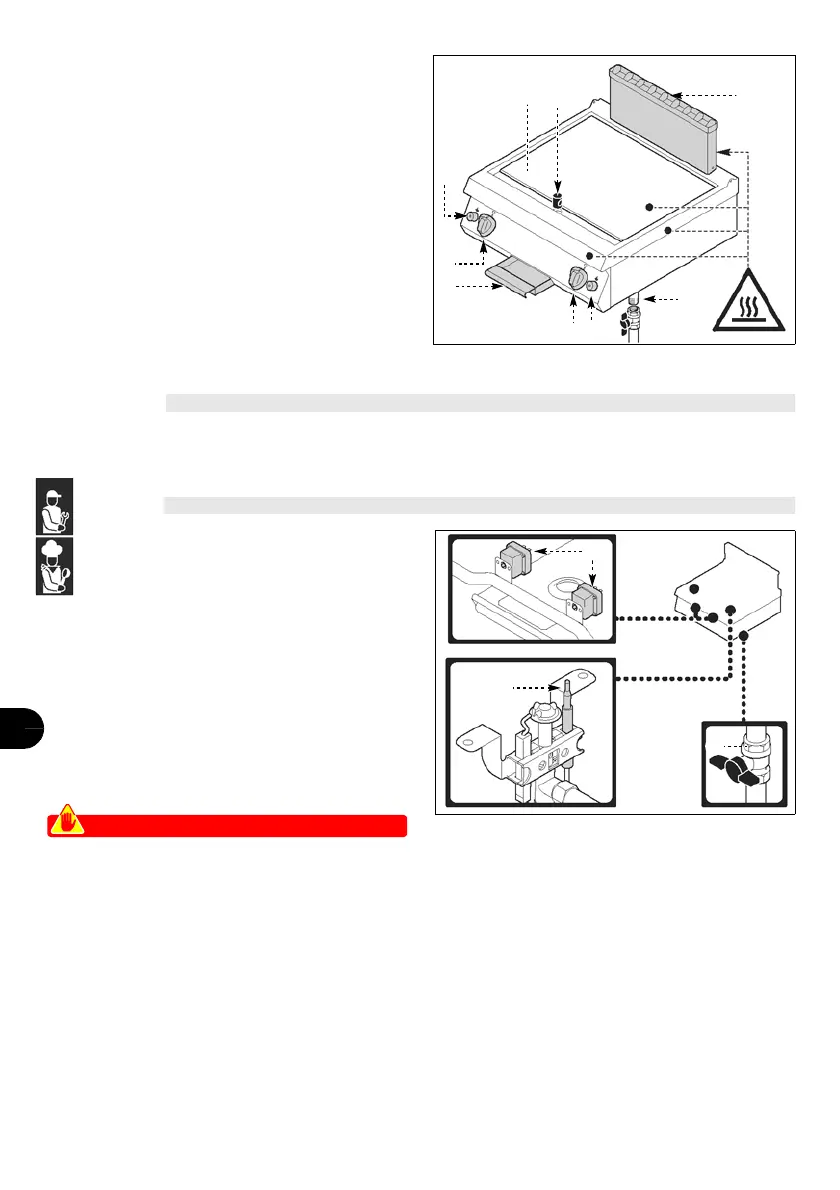

A)Cooking plate: produced in a variety of shapes
and materials to meet the different requirements.
B)Fume exhaust vent (Type A): for removal of the
fumes generated by the burner.
C)Drain plug: for draining cooking residues into the
drip tray.
D)Gas supply connection: for connecting the gas
supply.
E)Burner control knob: controls the supply of gas to
the burner.
F)Drip tray: collects the cooking residues.
G)Piezoelectric ignition: lights the burner.
TECHNICAL DATA
See “Connection card” at back of manual.
SAFETY DEVICES
Although the appliance is complete with all
safety devices, during installation and connec-
tion additional devices must be added if nec-
essary to comply with the relevant legal
requirements.
The illustration shows the position of the devices.
A)Gas supply tap: for turning the connection to the
gas supply line on and off.
B)Safety thermocouple: cuts out the gas supply if the
flame goes out.
C)Safety thermostat: cuts off the gas supply in case of
overheating.
Caution - warning
Make a daily check that the safety devices are
properly installed and in good working order.
