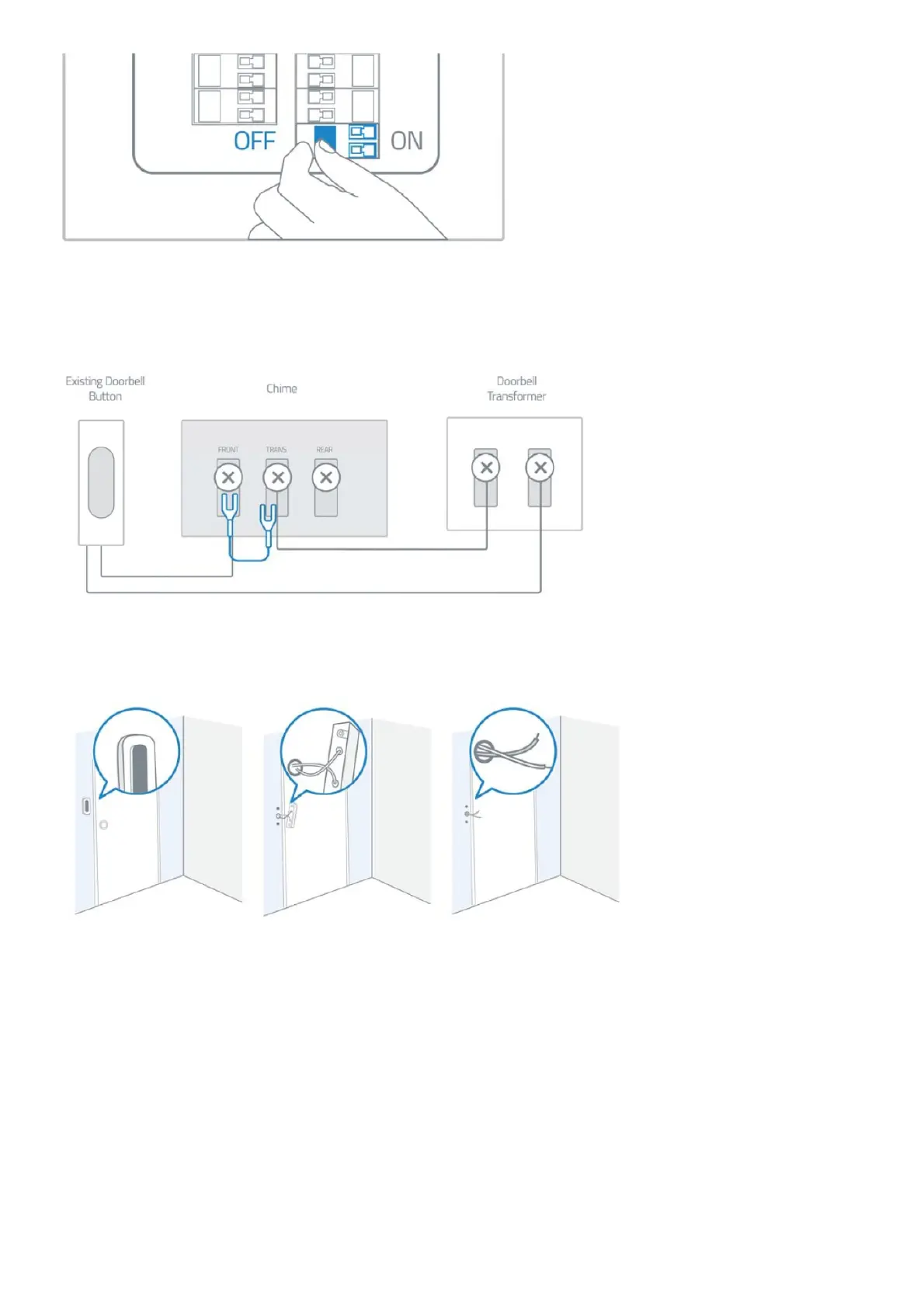

3. Find the doorbell chime in your house, then remove the cover and find the screw terminals with
TRANS and FRONT markings. Use the provided wire for existing chime to connect the two
terminals. This is to bypass the doorbell chime and will not affect the normal operation of the
circuit.
4. Remove the existing doorbell button at the front door. Pull the two wires out carefully when
removing the old doorbell. Straighten the wire ends if necessary.
5. Use the screw hole positioning-card to mark the screw holes in the place of the existing doorbell
button, place it at least 1.2m(48″) high from the ground for optimal viewing result, then drill two
holes (Use 15/64″ (6mm) drill bit).
