5.2 Replacing the Tubing (Continued)
Tubing Installation - A300 Pump Heads
Step 1 - With the pump running, insert tube into the channel of the inlet (suction) of pump head.
(Figure 8)
Step 2 - Carefully guide the tube into pump head and through the channel of the outlet (discharge)
side of the pump head and then stop the pump. (Figure 9)
Step 3 - Reinstall the pump head cover. (Figure 10)
Step 4 - Attach retention clips on inlet and outlet tubing, just below the base of the pump head, to
prevent tube migration during operation. (Figure 11)
Tubing Removal - A300 Pump Heads
Step 1 - Disconnect any suction and discharge tubes from the pump tube.
Step 2 - Remove the pump head cover.
Step 3 - With the pump running in clockwise rotation, pull the inlet (left) side of the tubing out of
the pump head channel. Carefully guide the tube clockwise away from the rollers and
pull the tube out of the pump head.

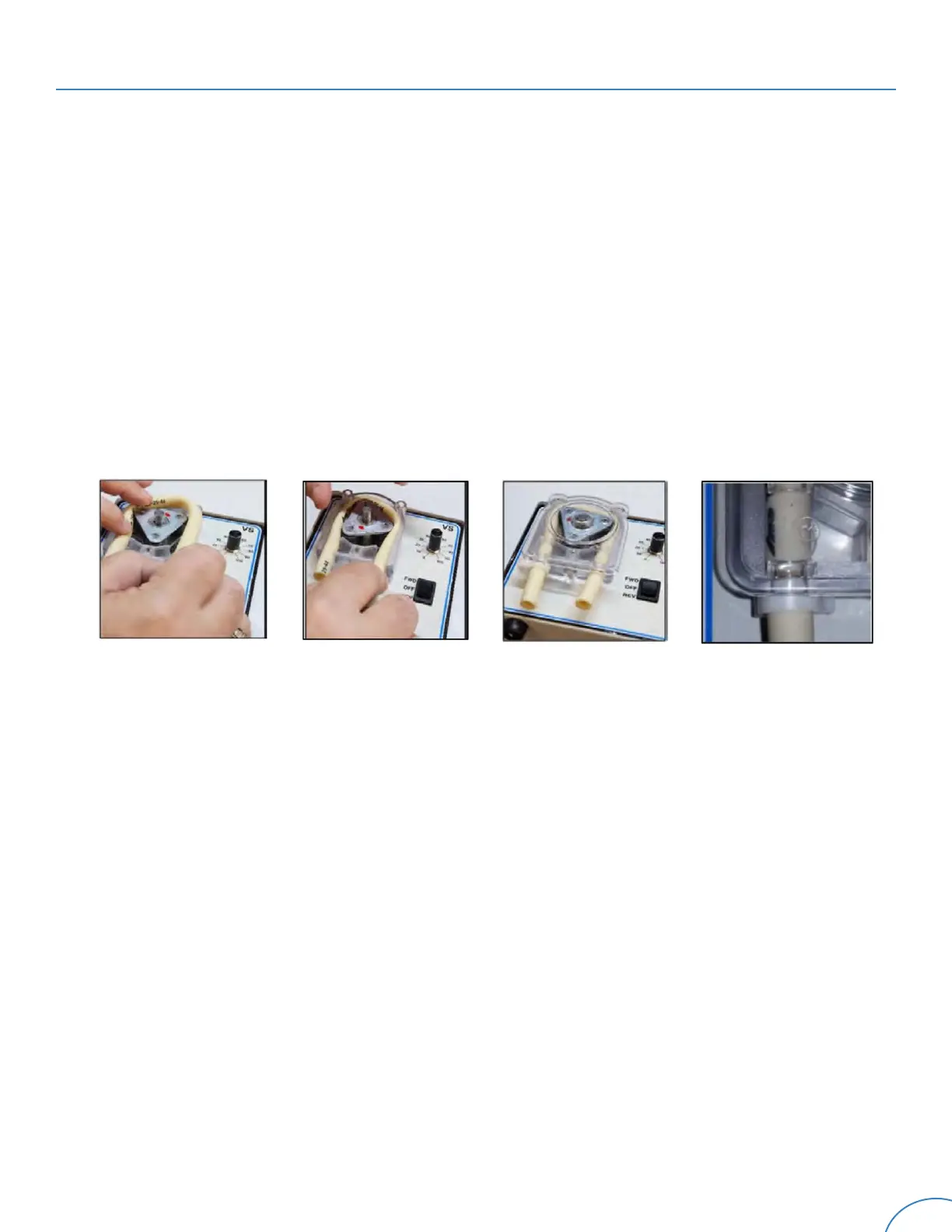

Figure 8 Figure 9 Figure 10 Figure 11
Start with a section of tubing at least 9” in length. Once installed, this length will result in
approximately 1 1/2” extending below both sides of the pump head for ttings and attachments.
