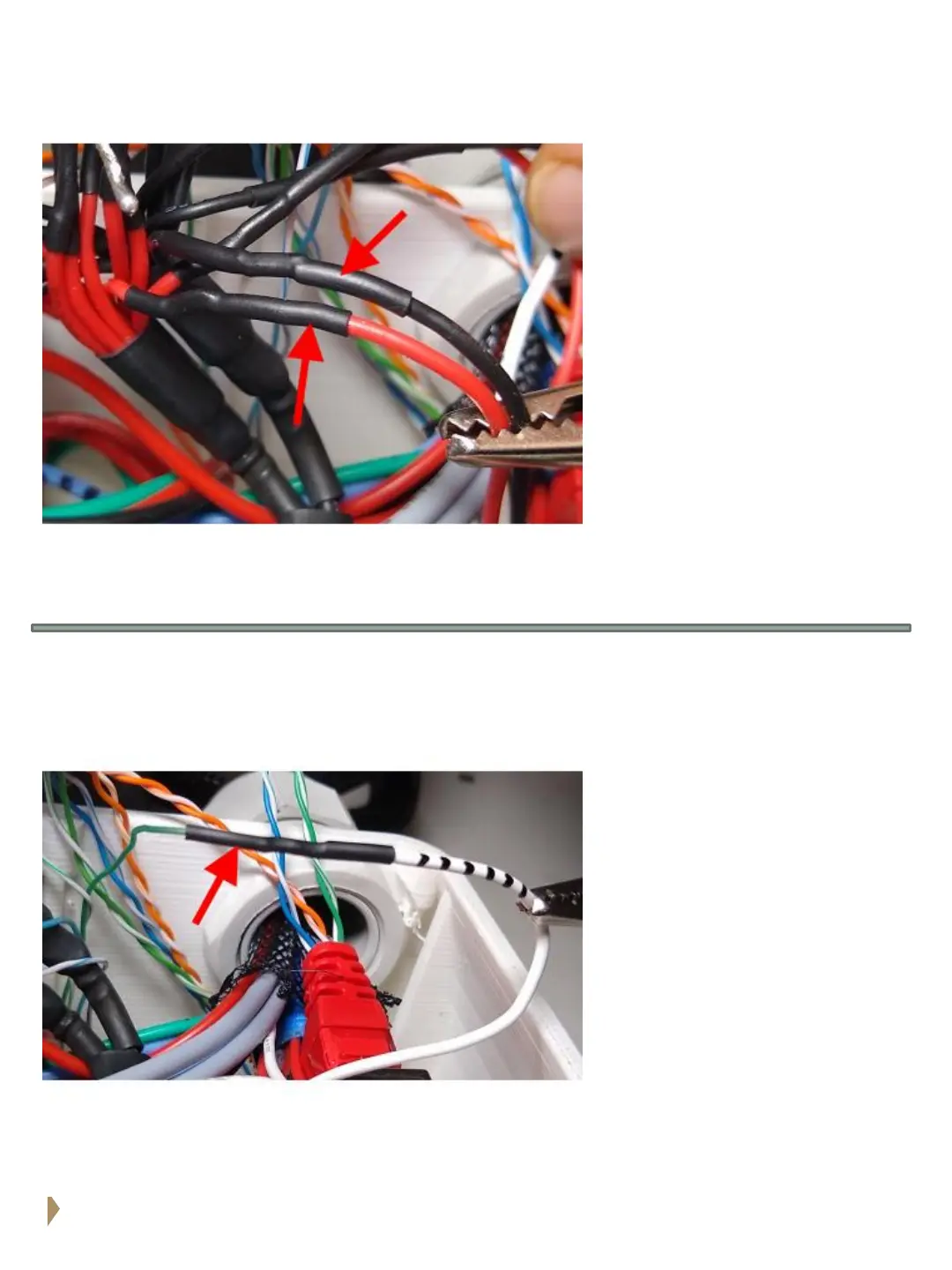

Solder and heat shrink the
J6 limit switch signal wire
(white) to the Yellow
Ethernet cable wire for the
J6 limit switch (green)
• J6 limit switch wire
(white) to Yellow
Ethernet cable – (green)
Solder and heat shrink the
5vdc red and black wires
from the J5 limit switch to
one of the red and black
5vdc source bundle wires.
• Black wire from J5 limit
switch goes to one of the
black wires from -5vdc
bundle.
• Red wire from the J5
limit switch goes to one
of the red wires from the
5vdc bundle.
