ANNIN ROBOTICS AR3 - Page 207

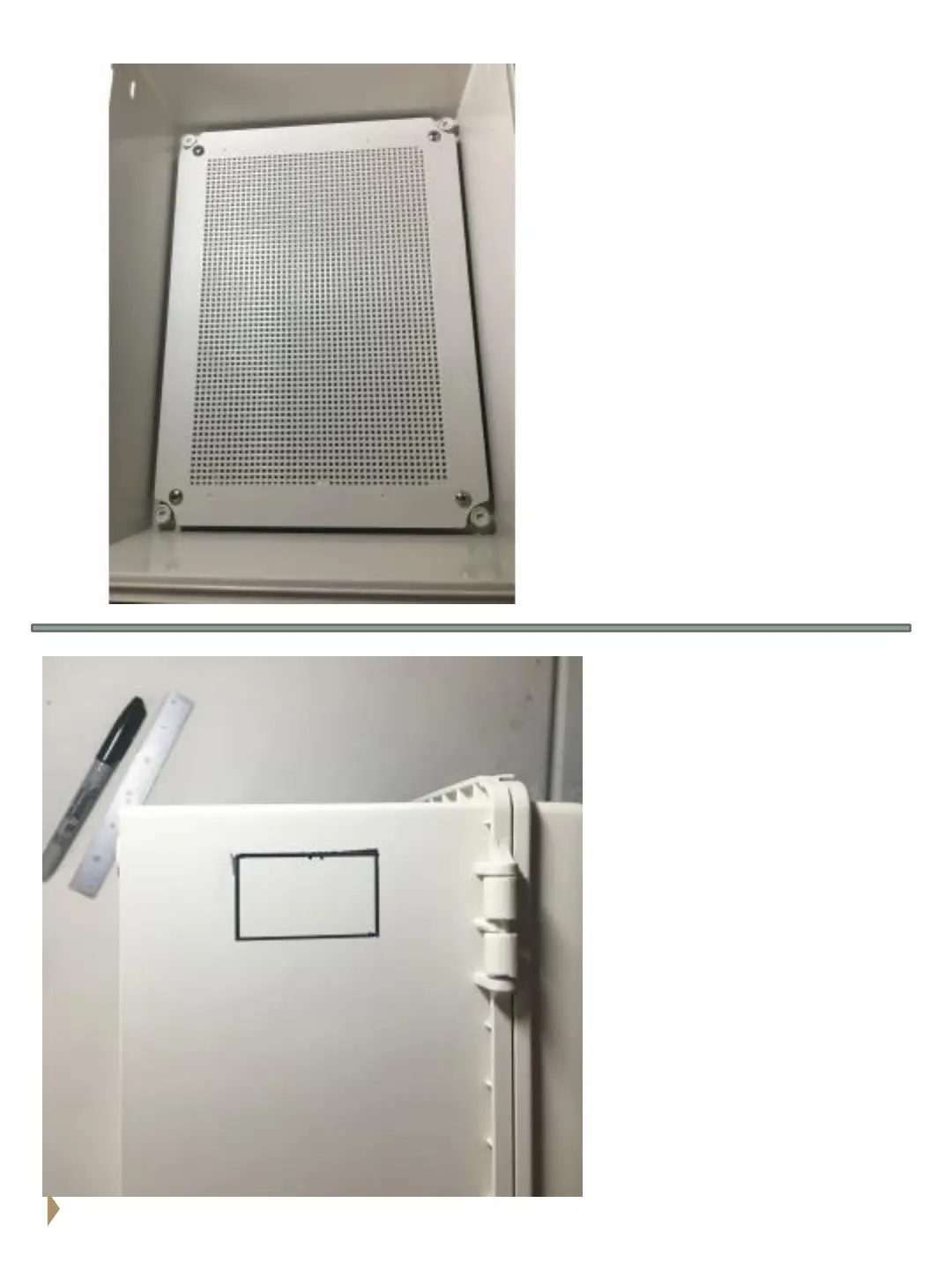

On left hinge side of
enclosure use marker and
straight edge to draw
rectangle as shown.
Rectangle should measure:
1.875” (48mm) wide
1.125” (29mm) tall
Rectangle should be
centered in side panel of
enclosure and be .75”
(19mm) down from top.
Install backplane into
enclosure using (4)
supplied screws.
