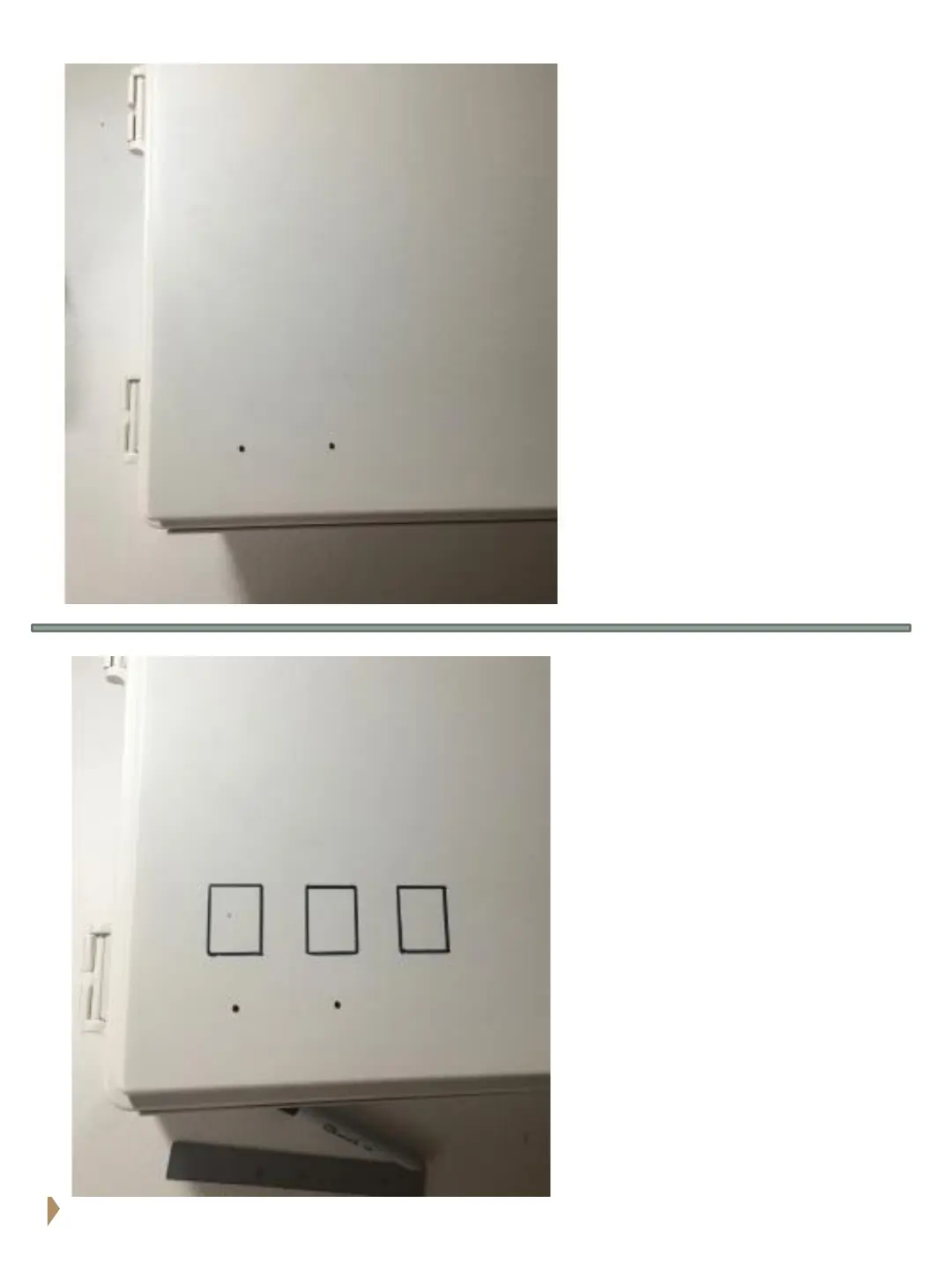

On front panel of enclosure
draw (3) rectangles as shown.
Rectangles should measure:
.70” (18mm) wide.
.95” (24mm) tall.
Rectangles center should be
2.25” (58mm) from bottom.
Left rectangles center should
be 1.5” (38mm) from left hinge
side of door.
Rectangles center should be
1.5” (38mm) apart from each
other.
On front panel of enclosure
mark (2) points as shown.
Points should be 1” (26mm)
from bottom.
Left point should be 1.5”
(38mm) from left hinge side
of door.
Points should be 1.5”
(38mm) apart from each
other.
To Next Page
