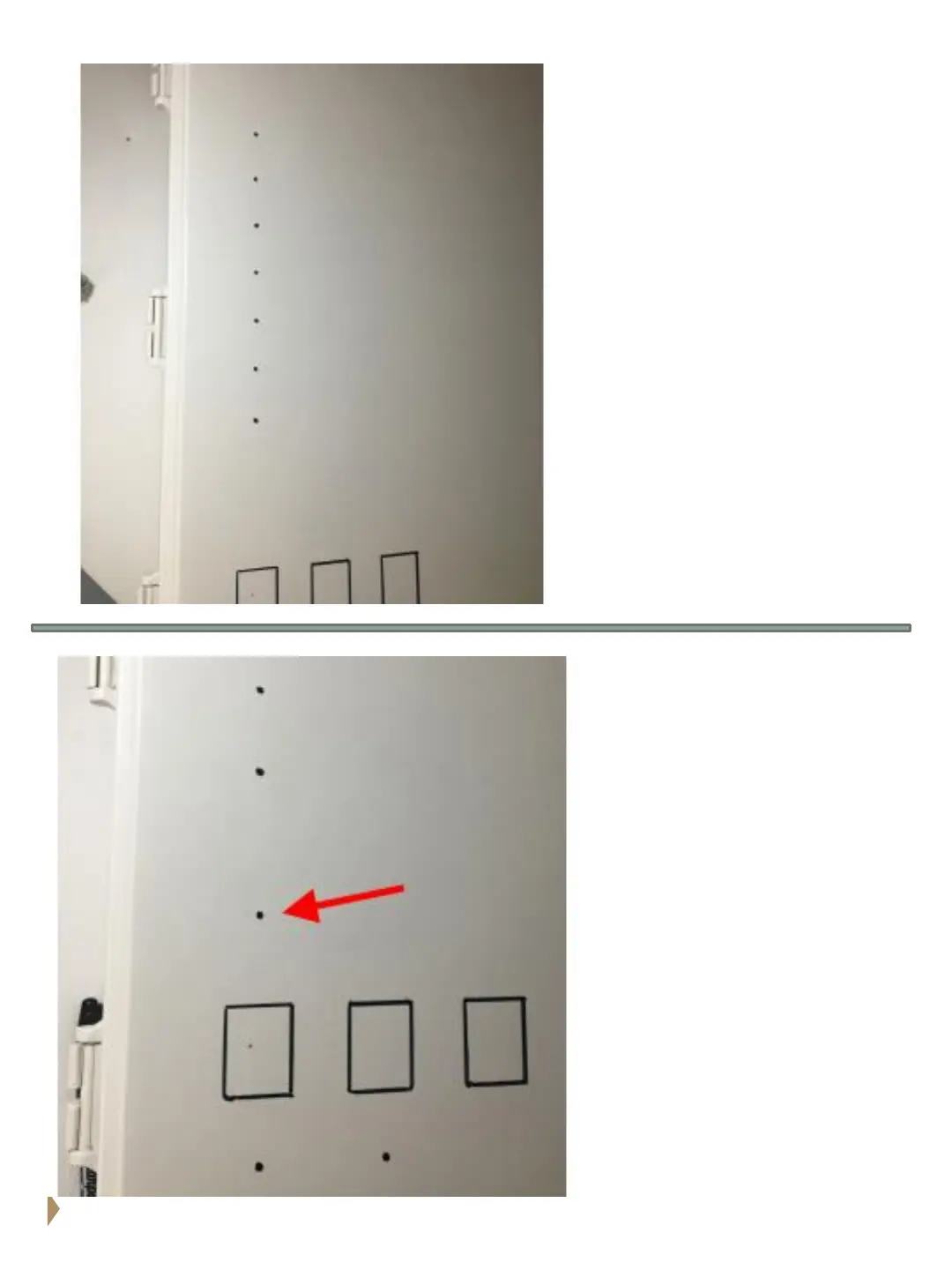

Mark additional point on
front door of enclosure as
shown.
Point should be 1.5”
(38mm) from left edge.
Point should be 4”
(102mm) from bottom.
Mark 7 points on front door
of enclosure as shown.
Points should be 1.5”
(38mm) from left hinge
edge.
Top point should be 3.5”
(89mm) from top.
Points should be 1”
(25.5mm) apart.
Note: 7
th
(bottom) point is
optional for 7
th
axis travel
track.
