ANNIN ROBOTICS AR3 - Page 210

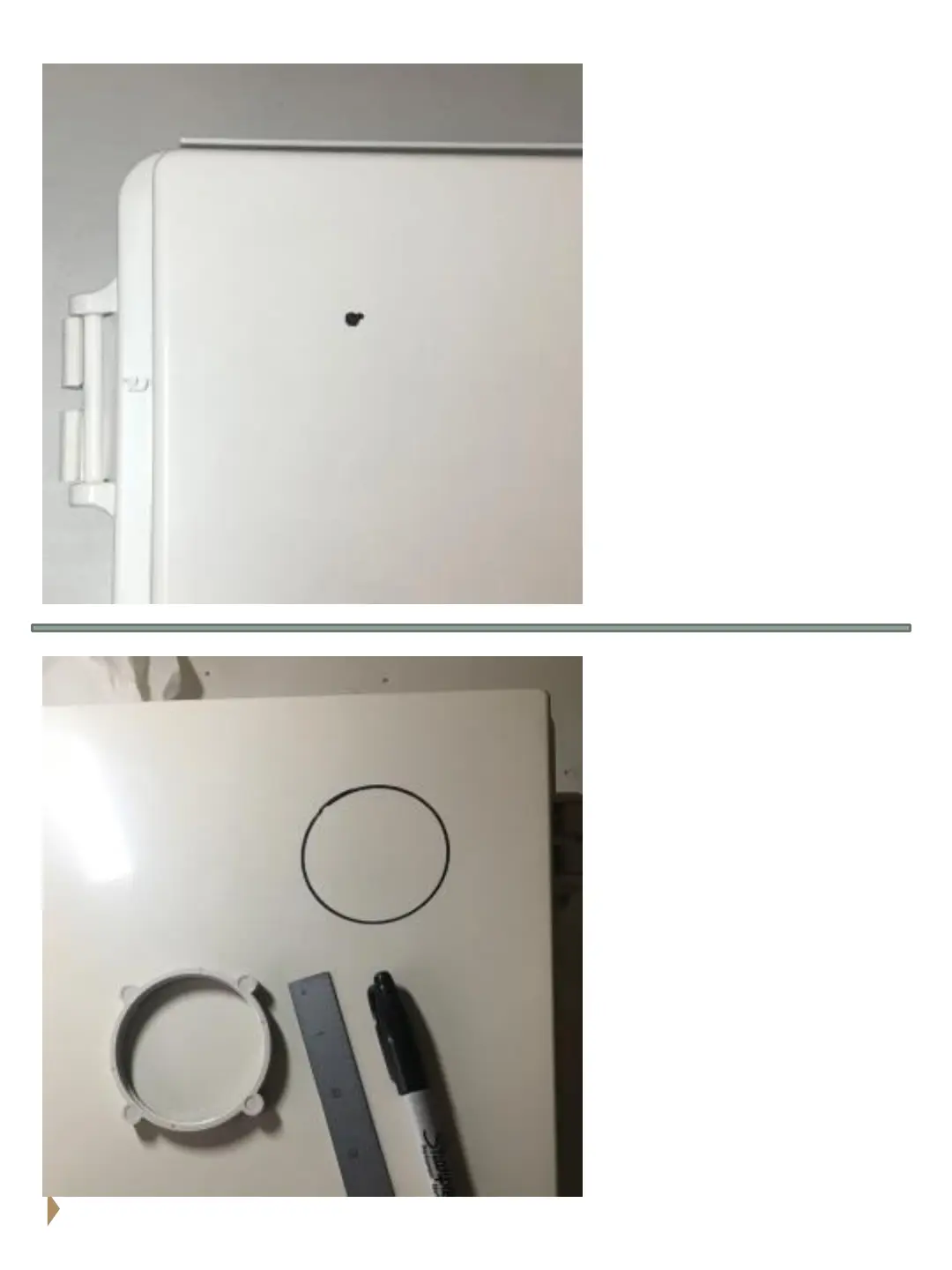

Use threaded ring from air
vent to trace circle on
enclosure door as shown.
Circle should be 3” (76mm)
from right edge of door.
Circle should be 3” (76mm)
from top edge of door.
Mark point in upper left
corner of door as shown.
Point should be 1.5”
(38mm)
From top of door.
Point should be 1.5”
(38mm)
From left hinge side of
door.
