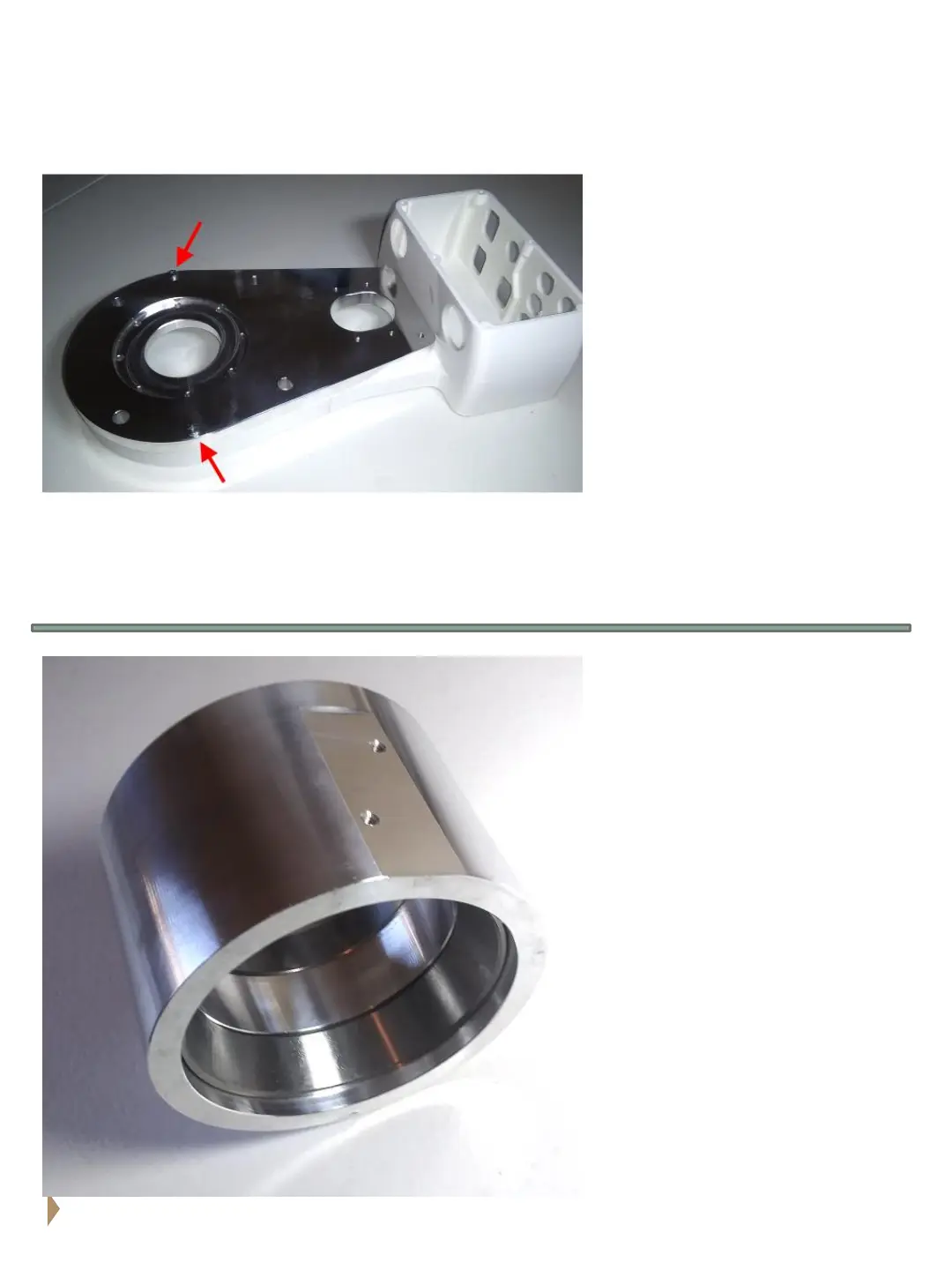

Press (x2) #32009 bearing
races into the J1 turret
housing. If you do not have
access to a press place
turret housing in oven @
350° and bearing races in
freezer for 60 minutes,
quickly remove housing
from oven – the cold races
will drop into the expanded
housing. (you will need to
do this for both races one
at a time)
(See notes on bearing fit in
overview section)
Secure J1 base plate to J1
enclosure assembly using
(2) M4x20 pan head
machine screws.
NOTE: these screws are
meant to hold base plate to
enclosure for assembly and
transport purposes only –
when assembly is complete
and you are ready to use
your robot you will need to
secure robot to table or
work surface using 8mm
fasteners through (4)
mounting holes.
