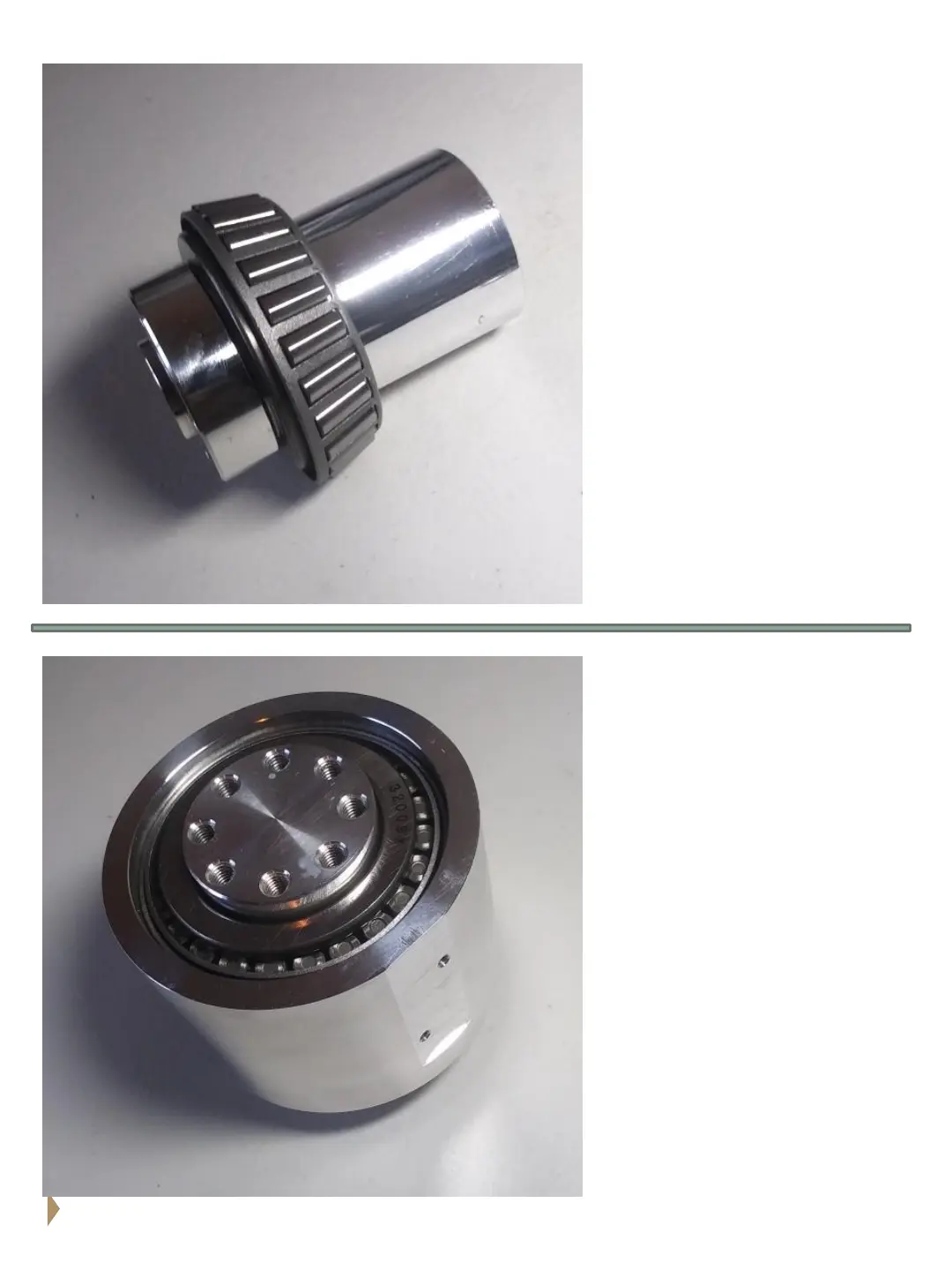

Insert J1 spindle into turret
housing then install the
other #32009 bearing on
top side of spindle.
Install #32009 bearing on
J1 spindle as shown.
