ANNIN ROBOTICS AR3 - Page 59

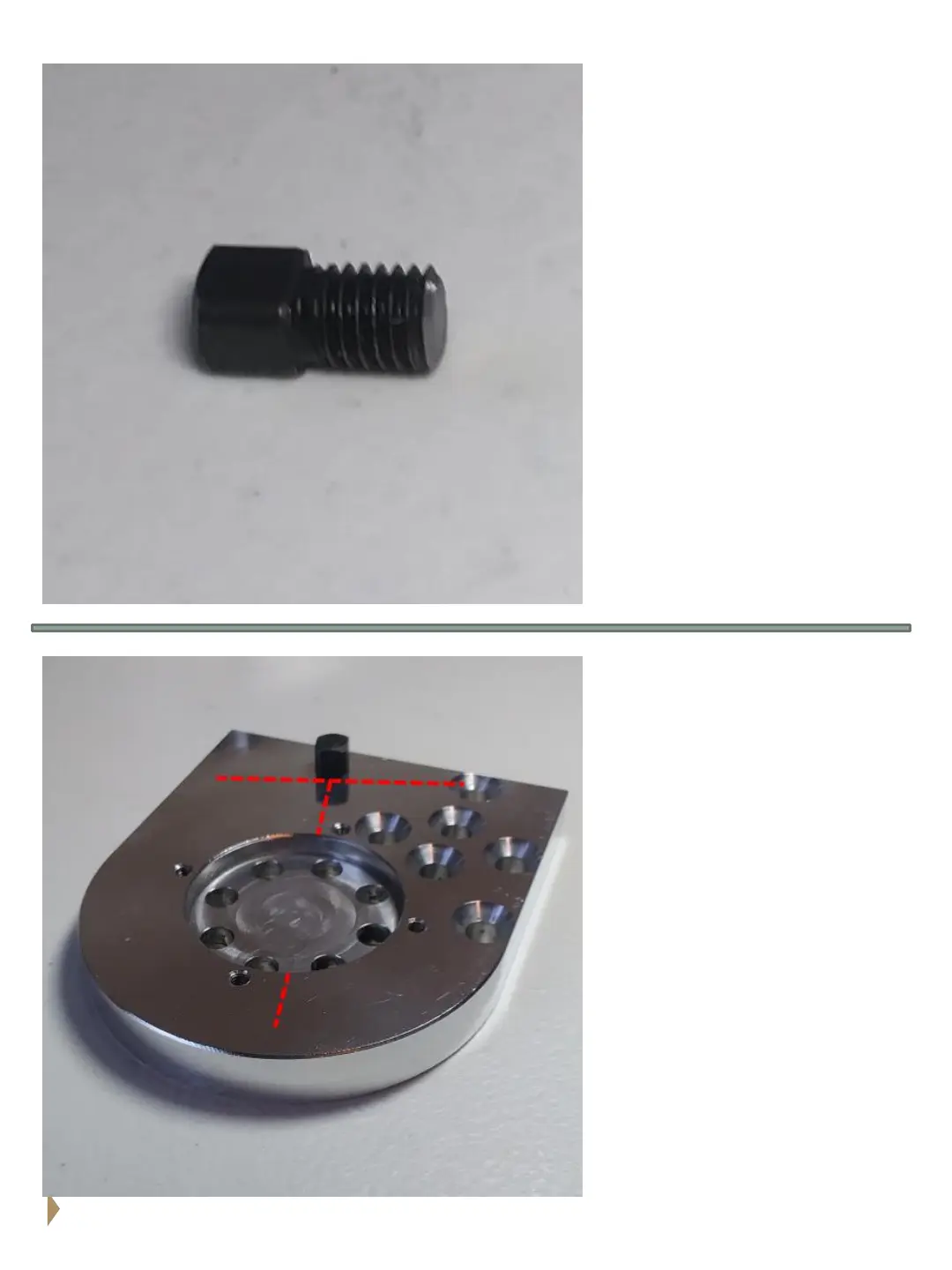

Install square head M8
screw into J1 turret
platform as shown – make
sure square head is
tangent to center bolt circle
as indicated by dashed line
in picture.
Use abrasive saw to cut
square head M8 screw
down as shown leaving
approx. 8mm of threads
remaining.
