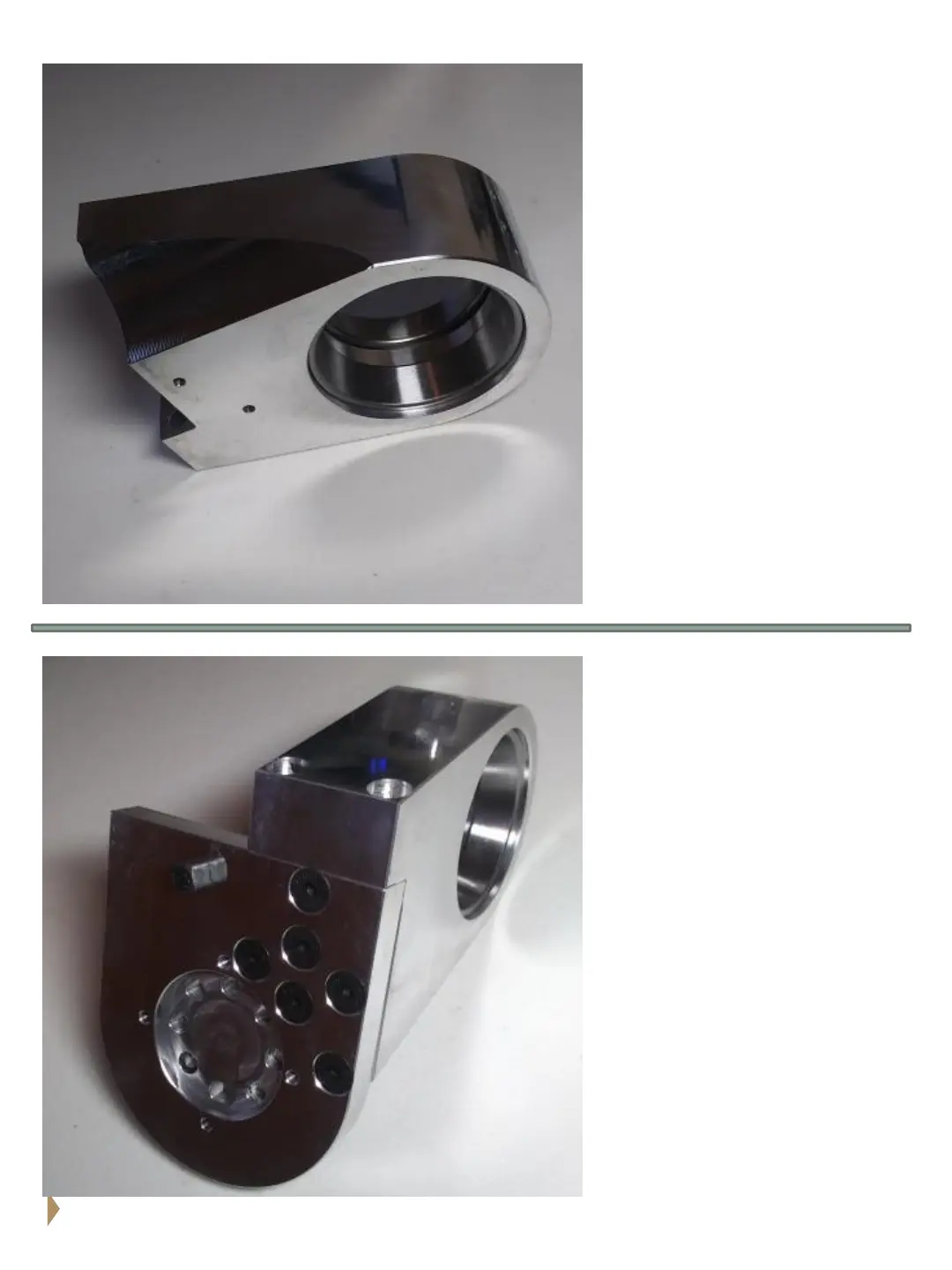

Secure J2 turret housing to
J1 platform using (6)
M6x18 flat head screws.
Press (x2) #30206 bearing
races into the J2 turret
housing. If you do not have
access to a press place
turret housing in oven @
350° and bearing races in
freezer for 60 minutes,
quickly remove housing
from oven – the cold races
will drop into the expanded
housing. (you will need to
do this for both races one
at a time)
(See notes on bearing fit in
overview section)
