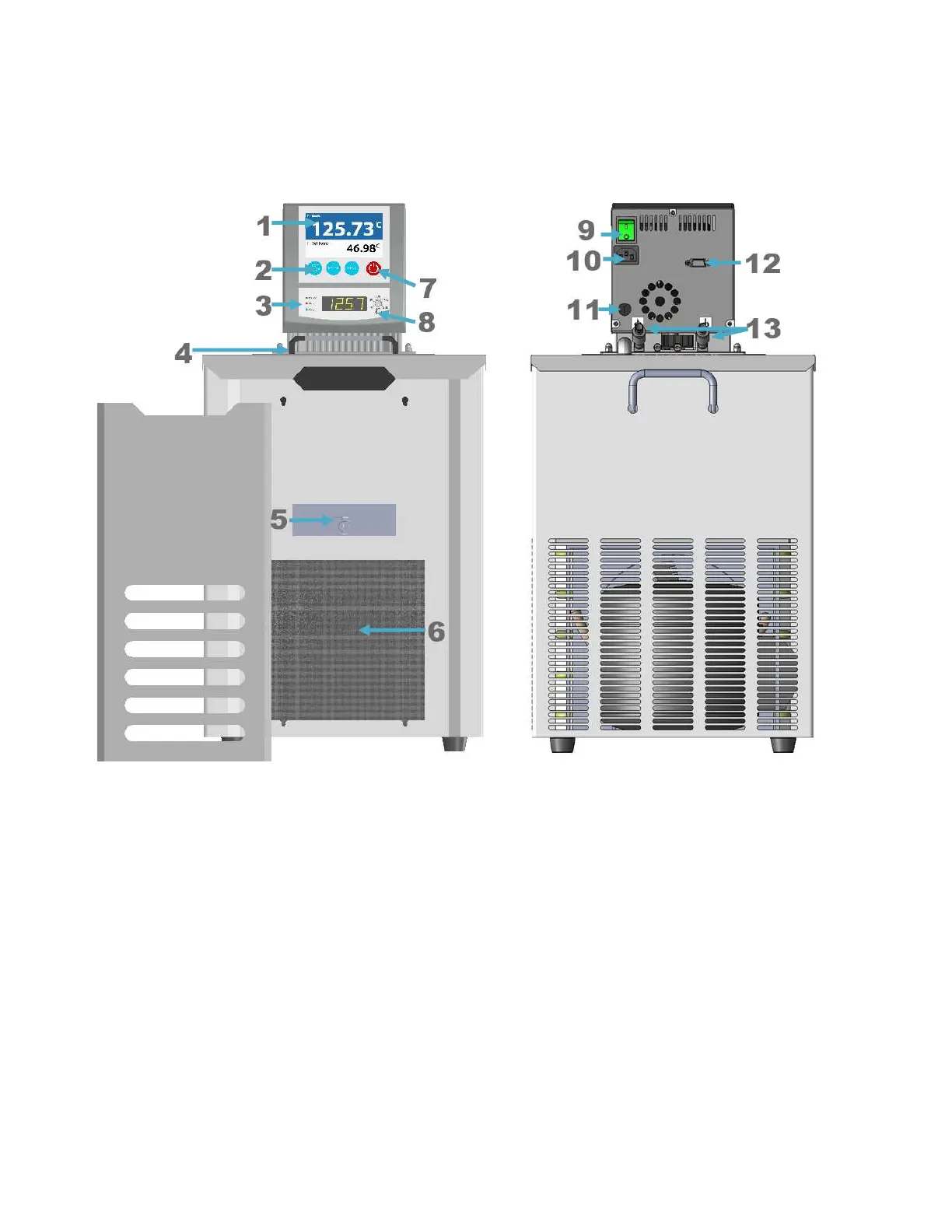

Operating controls and functional elements (cooling systems)
1) LCD with touchpad
2) Control Keypad
3) Indication LEDS
4) Bath opening
5) Drain port (on back in some models)
6) Air Filter for condenser
7) Start/Stop
8) Temperature LED Indicator / Safety Dial
9) Power Switch
10) Power Plug – Please used use Anova supplied heavy duty power cord
11) Fuse – (location may vary)
12) RS232 Port – for PC control
13) Circulation Inlet/outlet
