Ansul 100/30 User Manual

ANSULITE AFFF RECHARGE GUIDE
PAGE8 REV. 01 2012-MAR-22
ANSUL Fire Suppression/Securing Systems
Operation and Maintenance – Model 100/30

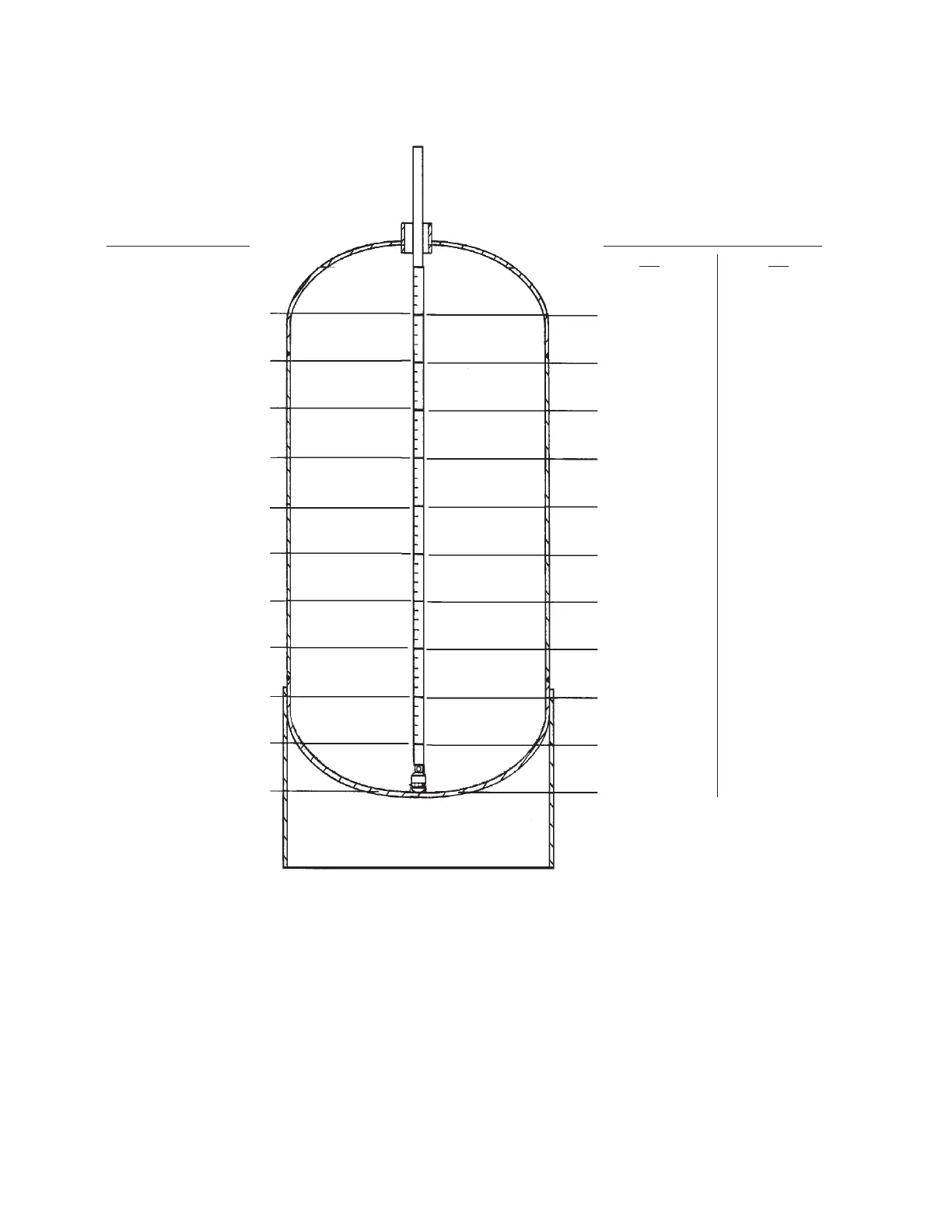

DEPTH OF SOLUTION
in. (mm)
__ ____
34.00 (863)
30.75 (781)
27.50 (699)
24.25 (616)
21.00 (533)
17.75 (450)
14.50 (368)
11.25 (286)
8.00 (203)
4.75 (121)
0 (00)
AFFF CONCENTRATE REQUIRED
6% 3%
Gal (L) Gal (L)
___ __ ___ __
0.0 (0) 0.0 (0.0)
0.2 (0.8) 0.1 (0.4)
0.4 (1.5) 0.2 (0.8)
0.6 (2.3) 0.3 (1.1)
0.8 (3) 0.4 (1.5)
1.0 (3.8) 0.5 (1.9)
1.2 (4.5) 0.6 (2.3)
1.4 (5.3) 0.7 (2.6)
1.6 (6.1) 0.8 (3.0)
1.8 (6.8) 0.9 (3.4)
2.0 (7.6) 1.0 (3.8)
30 GAL (114 L) AFFF SOLUTION TANK
FILL TO 3 IN. (76 mm) BELOW BOTTOM OF FILL OPENING
006043
