3 Installation
This chapter describes how to install the AUTOPULSE Z-20. It can be semi-flush or surface mounted.
3.1 Mounting the AUTOPULSE Z-20
• Due to the danger of metal fragments falling into electronics when drilling the holes for the conduits, remove the electronics in the
system:
- To remove the electronics, unscrew the ten screws. Remove the power supply and store it in a safe, clean, and dry location until the
panel installation is completed, see Figure 4.
- Remove the Zone/Relay card (three screws).
• The knockouts are not provided. Locate and create a suitable punch for a conduit entrance if necessary.

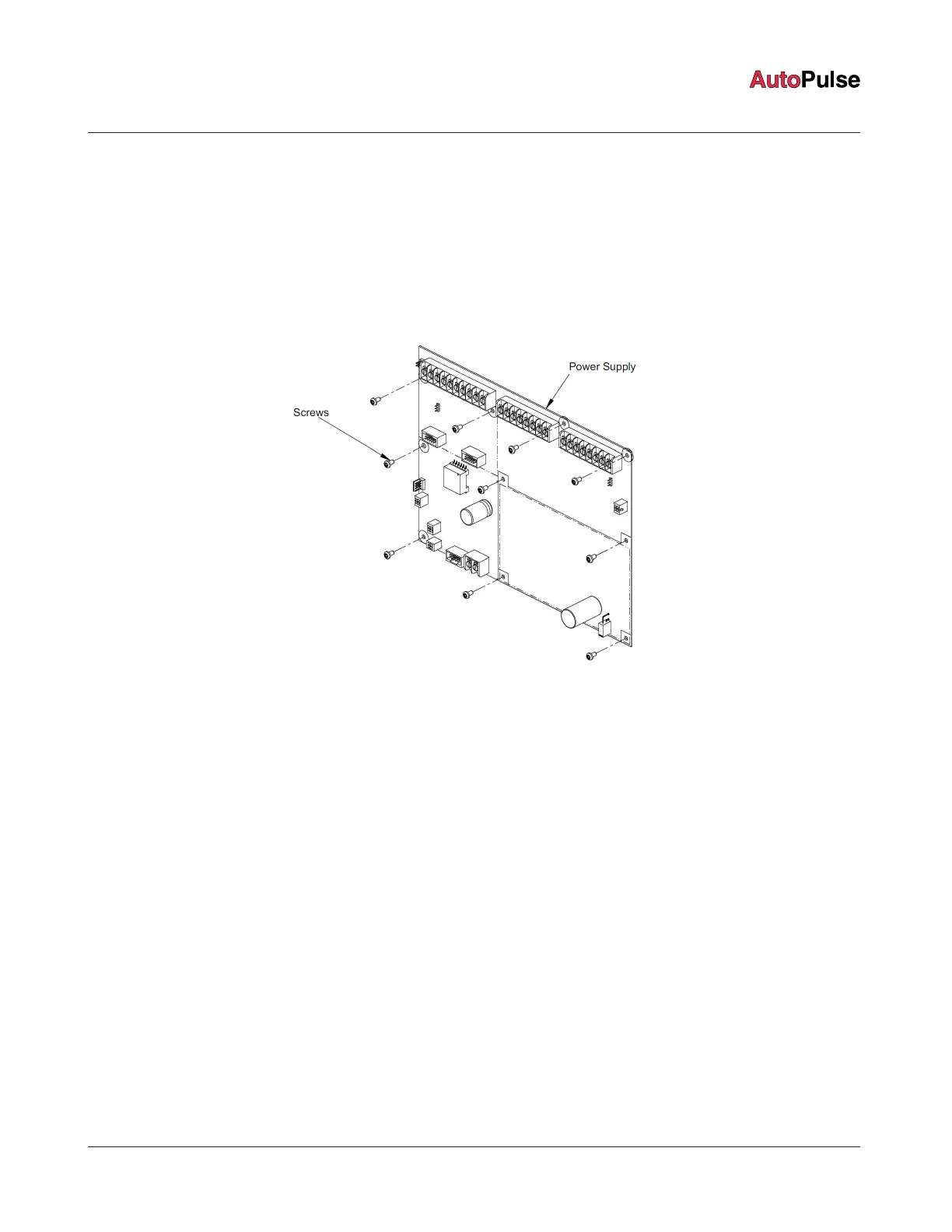

Figure 4: Screws location
• For surface or semi-flush mounting to a wooden wall structure, the panel must be attached with four 1 1/2 in. (38 mm) lag bolts and
four 1/2 in. (13 mm) diameter washers, supplied by others.
• For surface mounting, secure the box to the wall using the tear-drop mounting holes on the back surface. For semi-flush mounting,
secure the box along the sides to the wall studs. Note that the front surface of the back box must protrude at least 1 1/2 in. (38mm)
from the wall surface for semi-flush installation. A trim kit is supplied for semi-flush mounting, see the Applying the trim kit section for
more information.
• To install the panel, see Figure 5 for the dimensions and use the holes in the back box to secure it to the wall.
page 8 579-1102AR Rev C
Z-20 Agent Releasing Panel Installation Manual
