5.2.4 Class A Wiring
To wire an IDNet section as a Class A circuit:
1. Make sure the jumpers on P2 are set to positions 3-5 and 4-6.
2. Route the wiring from the IDNet circuit primary terminals (B+, B-) on TB1 of the IDNet to the corresponding inputs on the first
device.
3. Route the wiring from the first device to the next as in/out. See Figure 19. Repeat this for each device.
4. Route the wiring from the last device to the terminals A+, A- to the panel, maintaining polarity.
5. Shielded wire is not recommended. If shielded wires are present, cut and tape off the shield at each end in the panel to prevent
it from coming into contact with other components. The metallic continuity of the shield must be maintained and insulated
throughout the entire length of the cable.

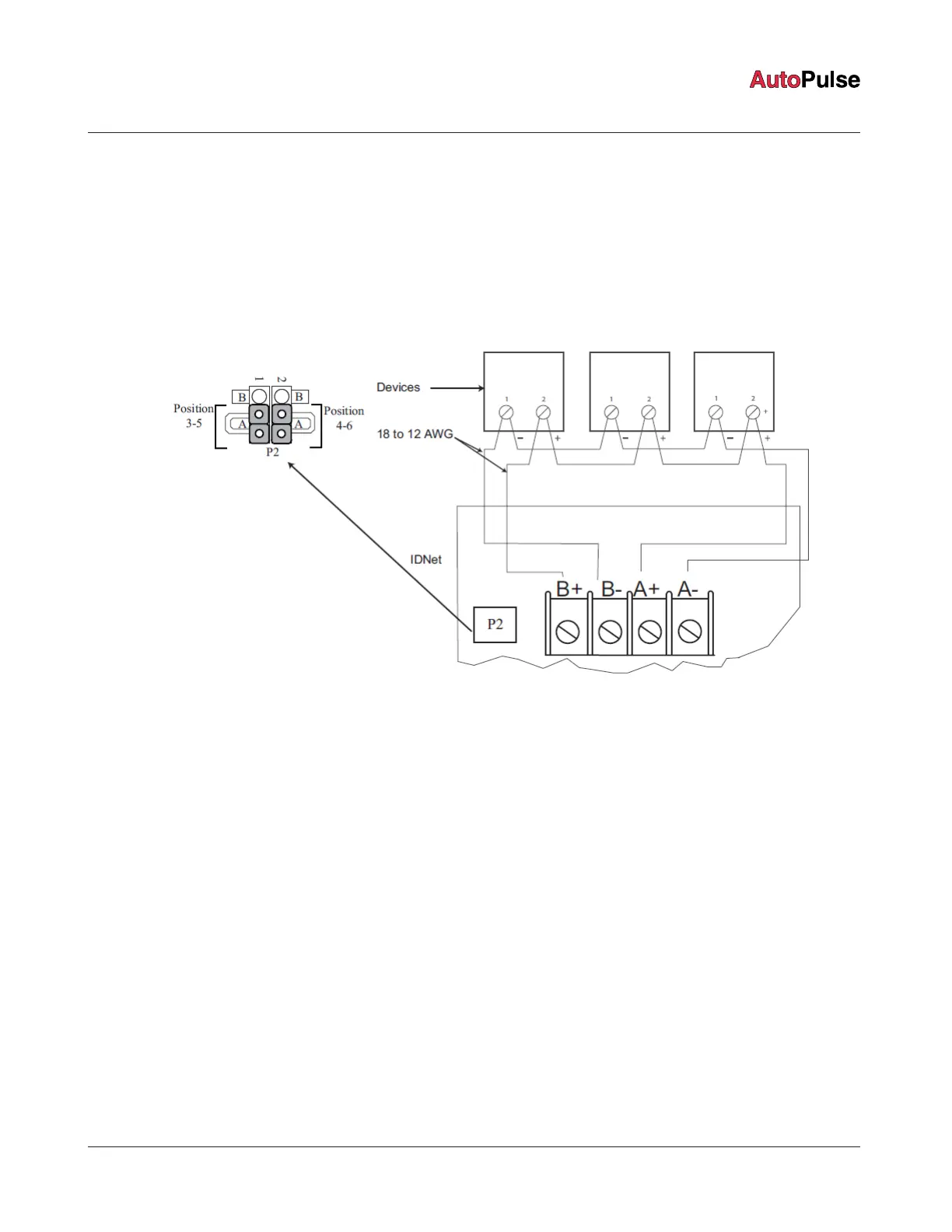

Figure 19: IDNet Class A wiring
page 25 579-1102AR Rev C
Z-20 Agent Releasing Panel Installation Manual
