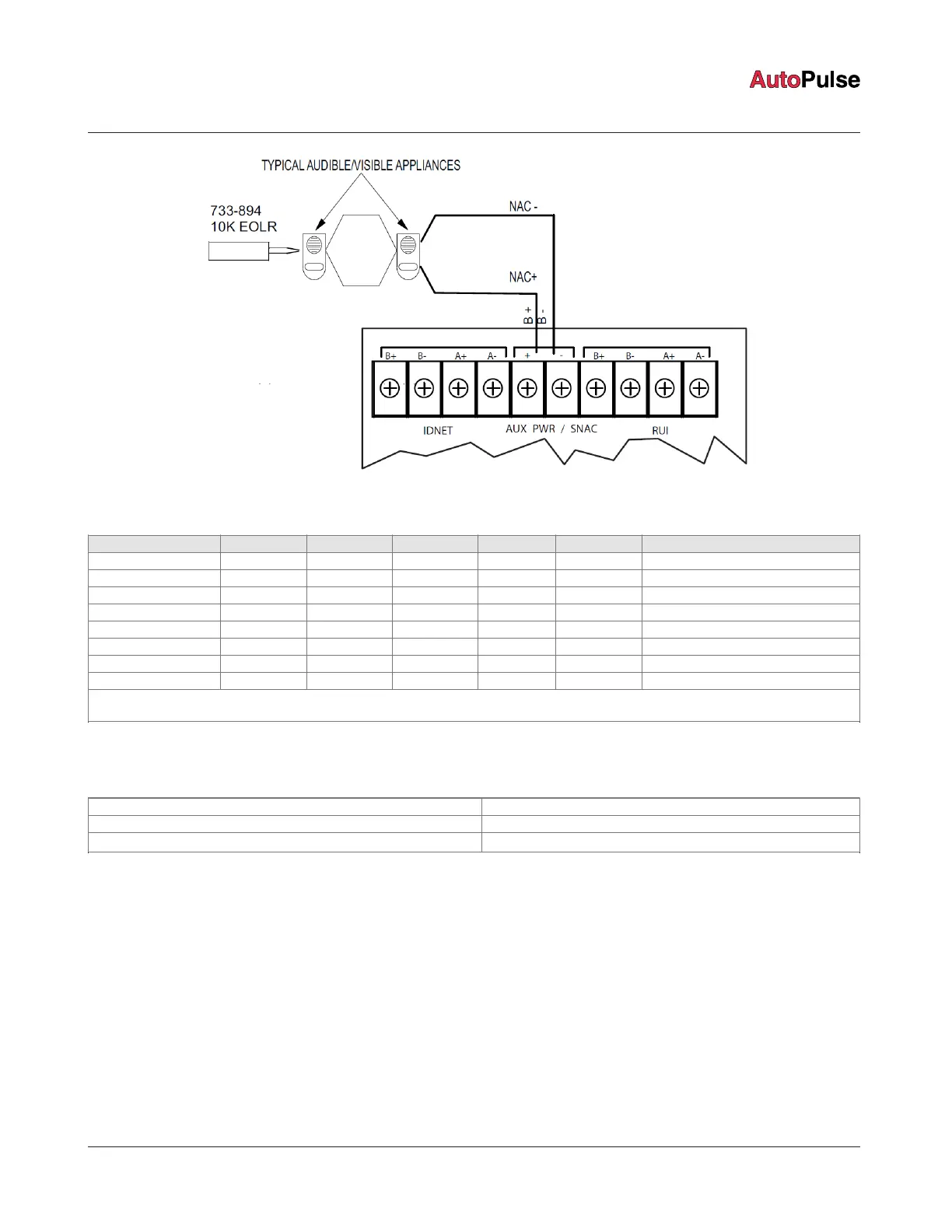

Figure 22: Simple NAC wiring
Table 17: Simple NAC wiring limits
Alarm current 20 AWG 18 AWG 16AWG 14 AWG 12 AWG Line resistance (Ohms)
0.25 617 ft 981 ft 1560 ft 2480 ft 3944 ft 14.00
0.50 308 ft 490 ft 780 ft 1240 ft 1972 ft 7.00
0.75 206 ft 327 ft 520 ft 827 ft 1315 ft 4.67
1.00 154 ft 245 ft 390 ft 620 ft 986 ft 3.50
1.25 123 ft 196 ft 312 ft 496 ft 789 ft 2.80
1.50 103 ft 163 ft 260 ft 413 ft 657 ft 2.33
1.75 88 ft 140 ft 223 ft 354 ft 563 ft 2.00
2.00 77 ft 123 ft 195 ft 310 ft 493 ft 1.75
Note: This chart indicates the maximum distance for 1/4 -2A loads. The wiring distance is from the panel terminals to the last appliance.
Use of a 2081-9044 protector reduces wiring distance.
Output of AUX or NAC is 24 V nominal. The minimum voltage is 19.5 at minimum battery; the maximum is 29.5 V. Aux Loads include the
4090 series of IDNet ZAMs and IAMs, and any listed device operating within the output limits of the AUX. Calculate the wiring loss for the
actual devices used. Compatible appliances include the 4009 NAC extenders, used in reverse-polarity activation mode.
Table 18: Compatible devices with 24V Aux. power
2088-series relays 2098-series four-wire smoke detectors
4098-series four-wire smoke detectors 4190-9050/9051 4-20mA ZAMs
4090-series IDNet ZAMs
page 28 579-1102AR Rev C
Z-20 Agent Releasing Panel Installation Manual
