P
OWER
O
UTPUT
The EA-750 PSU distributes a maximum number of amps on each rail. To see the output capacity and regulation for
each different voltage, see Table 2.
T
ABLE
2
Output Voltage Load Max. Regulation Ripple
+3.3V 25A ±5% <50 mV
+5V 25A ±5% <50 mV
+12V 25A ±5% <120 mV
+12V 25A ±5% <120 mV
+12V 25A ±5% <120 mV
+12V 25A ±5% <120 mV
–12V 0.5A ±10% <120 mV
+5VSB 3A ±5% <50 mV
+12-V
OLT
R
AIL
D
ISTRIBUTION

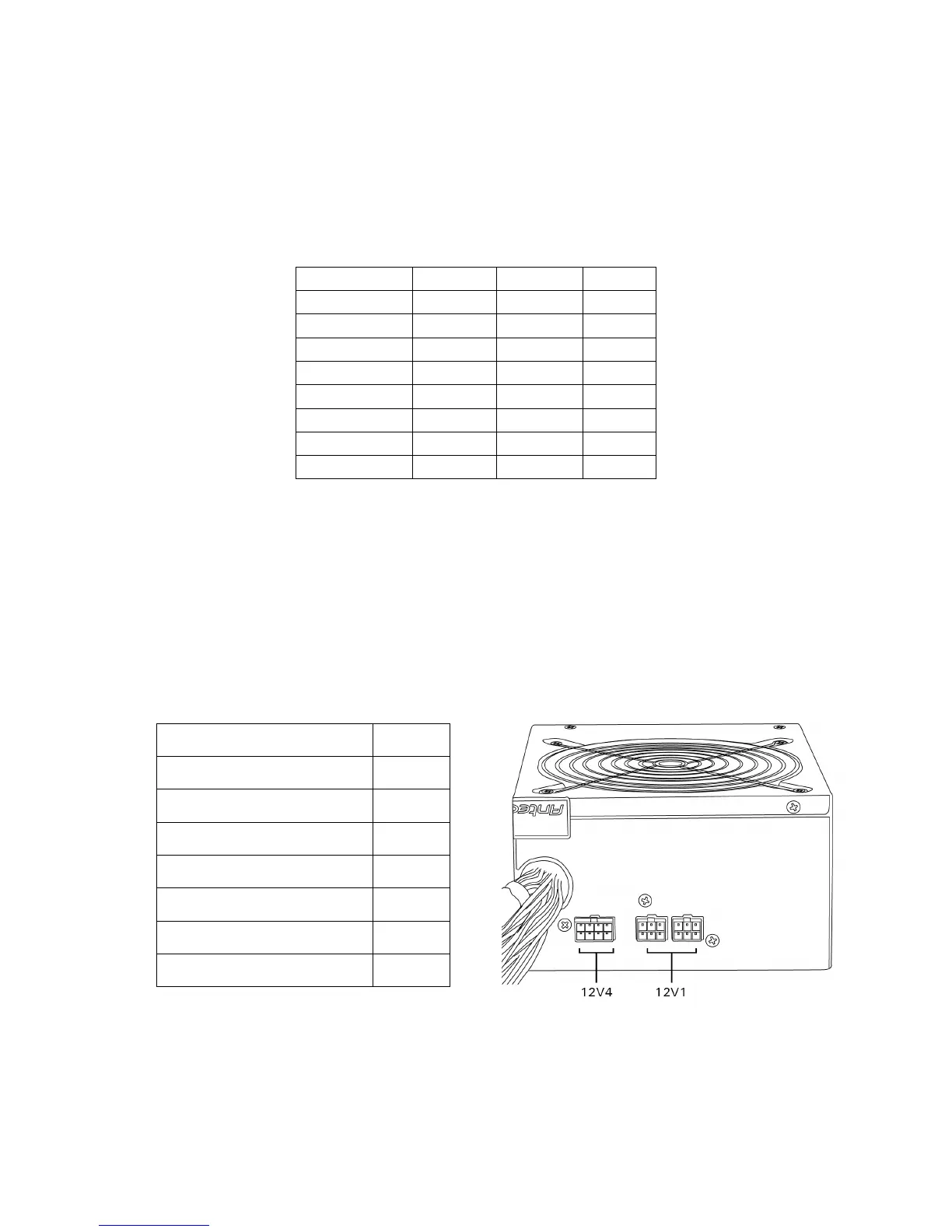

The EA-750 PSU uses four separate +12-volt power rails. Different connectors are hooked up to separate circuits to
aid in the balanced distribution of power between devices in your computer. The engineers have allocated the rails
to different connectors to prevent voltage sags in one device due to sudden demands for power in another device.
T
ABLE
3
PSU Direct Cabling Connector +12V Rail
(20+4) Motherboard 1
4-pin ATX12V 2
8-pin EPS12V 2
PCI-E w/ blue stripe 3
PCI-E w/ green stripe (modular) 4
Molex cable from PSU 1
SATA cable from PSU 1
