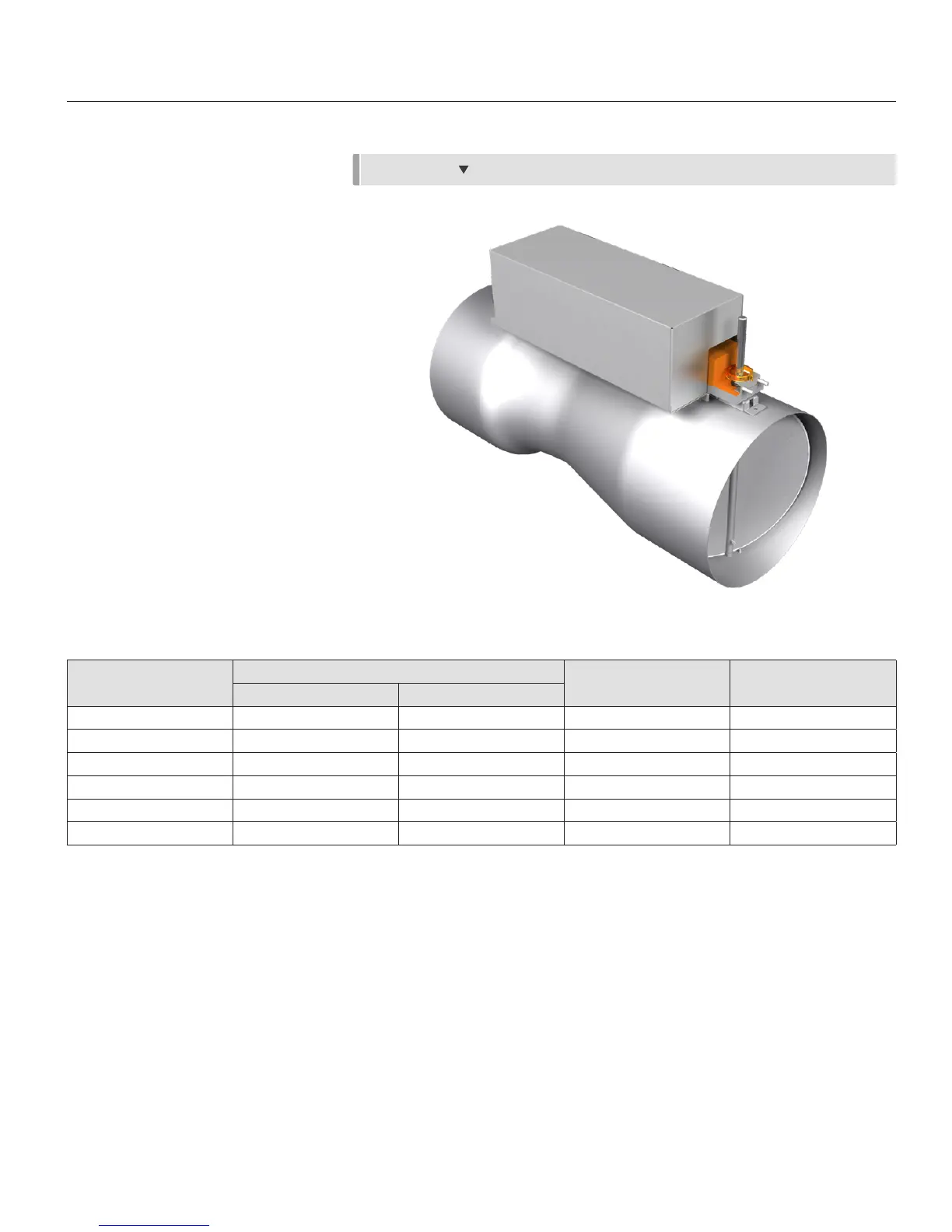

Antec VFX Series - Receiving Inspection; Flow and Pressure Data

VENTURI FX
PRODUCT OVERVIEW
2
VFX - Manual
|
AntecControls.com
Receiving Inspection
After unpacking the assembly, check
carefully for shipping damage. If any
damage is found, report it immediately
to the delivering carrier. Damage may
result from improper handling. Do not
tamper with actuator positioning as it
is shipped factory calibrated.
• Never carry or lift the valve by the
damper shaft, flow measuring
station, or the control box.
Flow Data
Unit Size
Airflow Range
K-factor Weight (lbs)
Min Flow (CFM) Max Flow (CFM)
108 80 800 600 19
110 120 1300 975 20
112 180 1800 1400 22
114 250 2500 1985 24
212 360 3600 2800 40
214 500 5000 4000 45
NOTES:
1. Factory calibrated controls must be selected within the above flow range limits. When setting the flow, the value must
be greater than the minimum setting and within the range limits. Selection of air flow below the listed values is not
recommended. Stability and accuracy may not be acceptable at lower than recommended air flow limits.
2. Please refer to VFX submittals for all dimensional data.
3. Weights are +/- 5 lbs depending on options
4. Valves are rated to operate between 32-120°F within 10-95% RH non-condensing.
