4. CONNECTIONS
continued …

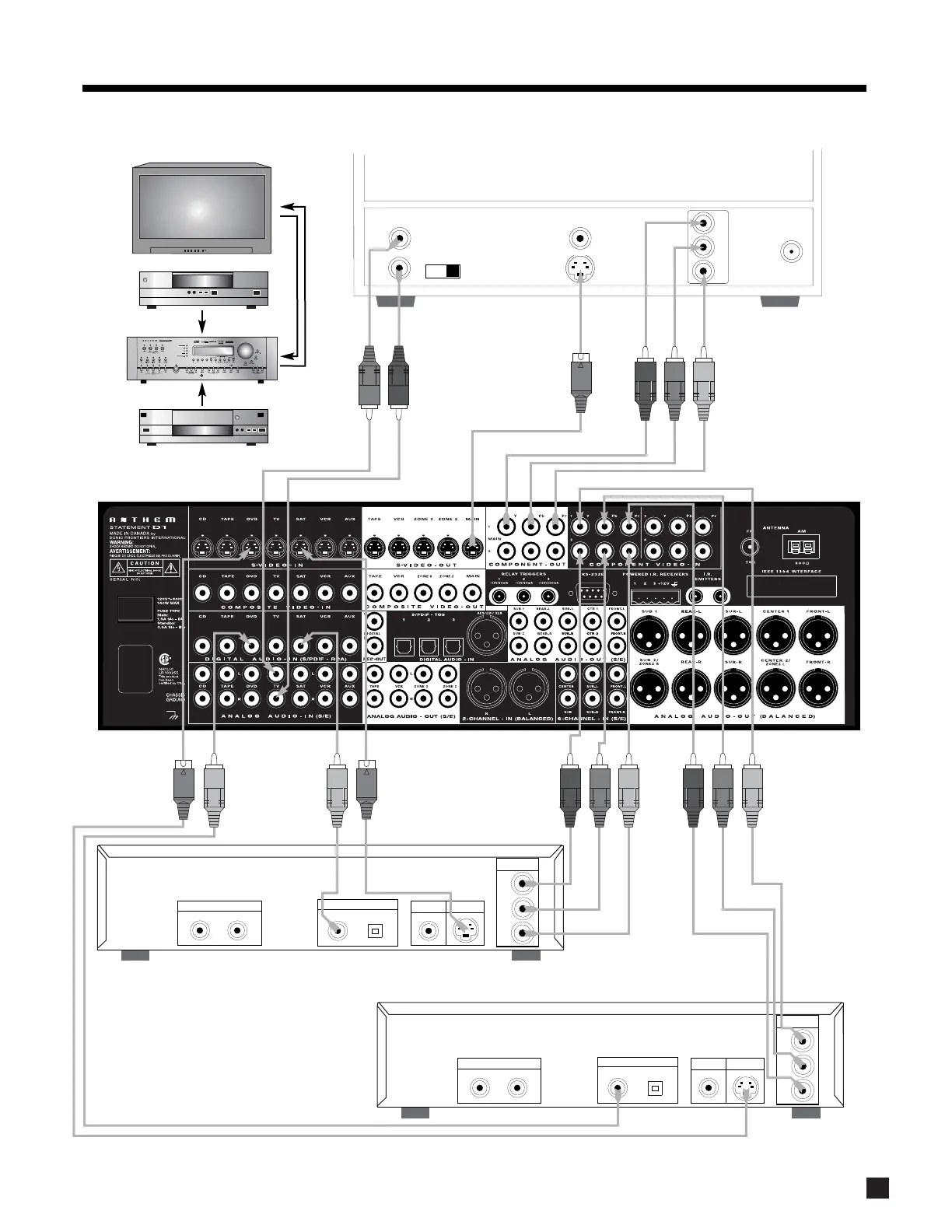

DVD Player, Satellite Receiver, and TV Connections with Statement D1 as Video Input Selector
Audio
Out
Composite
Video In
Component
Video In
S-Video In
Vari Fixed
L
R
Pb
Pr
Y
Rear Panel of TV
CATV
In
DVD Player
Composite
Video Out
S-Video Out
Audio Out
RL
Digital Out
RCA
Toslink
Component
Video Out
Pb
Y
Pr
Satellite Receiver
Composite
Video Out
S-Video Out
Audio Out
RL
Digital Out
RCA
Toslink
Component
Video Out
Pb
Y
Pr
DVD
SATELLITE
Note:
For info on Component
Video use, see sections
4.3, 7.4.5, and 7.4.10
