2 / Connecting

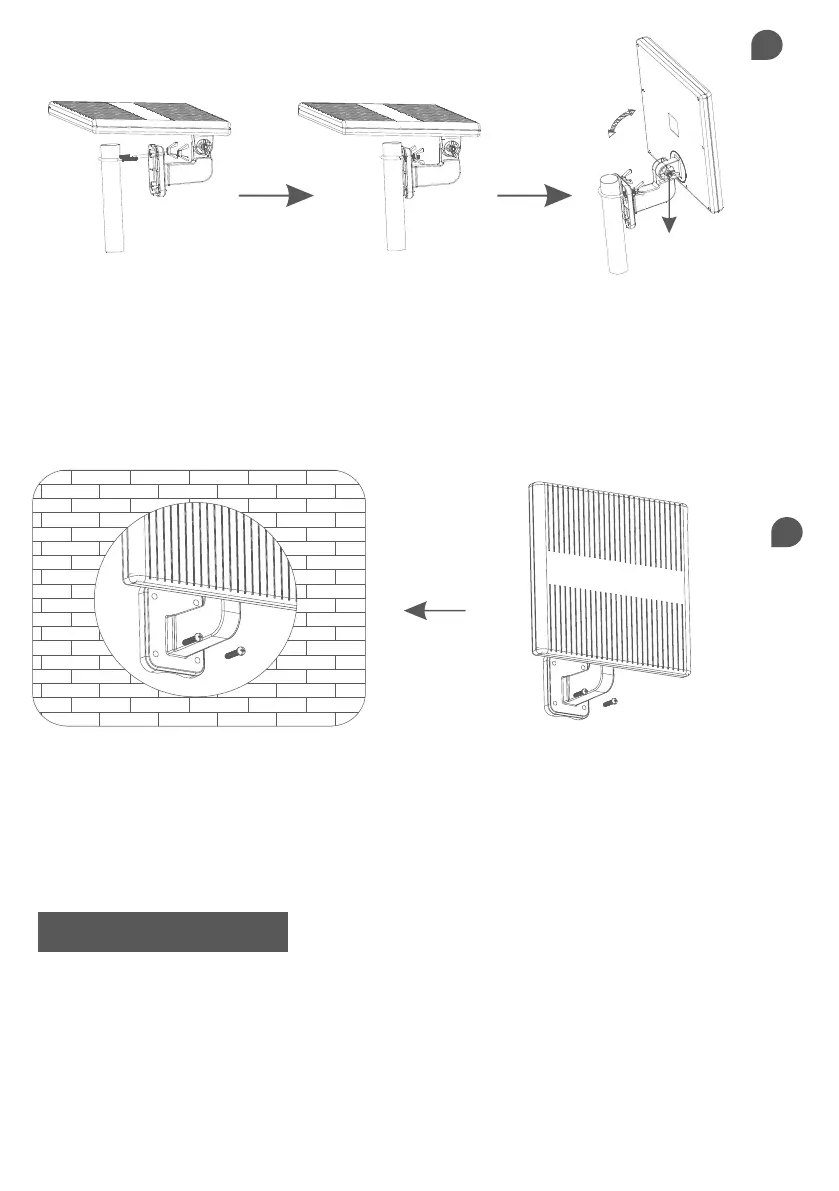

Take off the clamp kit from the antenna. Determine the location on the wall where the antenna
is to be mounted, preferably on the side of the house facing the TV station transmitters. Fix
the antenna onto the wall with screws (screws not provided).
2.1.1 Select entry point to house. Drill hole under the eaves at entry point. Attach coaxial
cable with water proof cap end to connector in the antenna. For horizontal Wall Mount utilize
U-shape coaxial cable setup to prevent water from entering interior of antenna casing. With
antenna fixed to either a mast pole or an exterior wall, feed lose end of coaxial cable through
drilled opening.
2.1 For Outdoor Use, Mast Pole or Wall Mount Prepping for Connection
1.2 For Outdoor Use of House, Wall Mounting
2
Determine location in attic where antenna will be placed. To mount antenna onto a beam or
wall, preferably on the side of the house facing the TV station transmitters, fix the antenna
onto the beam or wall with screws (screws not provided).
1.3 For Indoor Use, In Attic
Screw A
1.1
1.2
To Next Page
