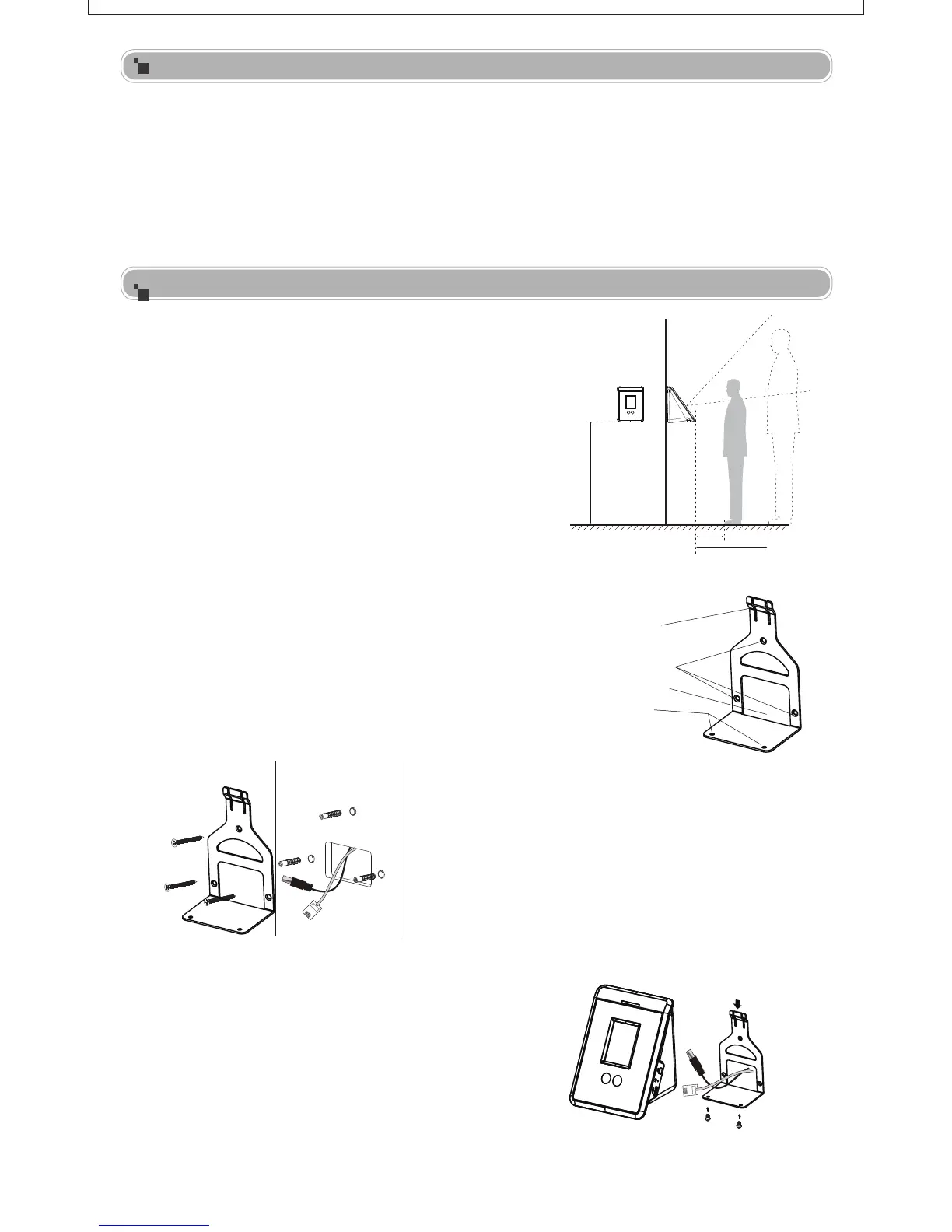

Anviz FacePass Quick Guide

Installation Environment
Installation Steps
Before Installation:
The FacePass working temperature：0℃---45℃，working humidity：20%---80%
Direct sunlight would cause great impact on the face recognition performance. So the terminal is not allowed to be installed
outside. Please install the terminal indoor and avoid strong light shining straight into the camera.
The best verification distance of FacePass is 11.8’’-31.5’’ (30-80 cm)
and the best image capture angle of the camera is level：±20°, vertical：±20°.
The recommended installation height is 43.3’’ (110cm) from the ground.
In this position the FacePass can capture body height rangeing is 57’’-76.8’’
(145-195 cm) the person’s face image is in valid verify distance.
For the actual installation height please refer to the user’s height.
Step 1: Installation Position
Installation Position
43.3”
(110cm)
Ground
57”
(145cm)
31.5”
(80cm)
11.8”
(30cm)
76.8”
(195cm)
Figure（1）
Step 2: Holing fot the Steel Bracket
（1）Please refer to the size of the steel bracket, mark out the screw and
wiring holes. Make sure the back board is on horizontal position.
（2）Drill the hole (Recommended dia.6 mm).
Step 3: Fixing Steel Bracket
（1）Fix the steel bracket on the wall with self tapping screws.
（2）Pull all the cables out from the wiring hole of the steel bracket.
Step 4: Fixing the Terminal
（1）Connect cables with the terminal.
（2）Push down the terminal into the rabbet of the steel bracket.
（3）Fix the terminal with screws.
Rabbet
Fixing Holes for Steel Bracket
Fixing Holes for Terminal
Wiring Hole
Rabbet
Steel BracketFigure（2）
Fixed TerminalFigure（4）
Fixed Steel BracketFigure（3）
