AnyWireASLINK
4-10
4.9 AnyWire filter
If any of the side-by-side lines of DP, DN, 24 V and 0 V exceeds the total length of 50 m in a power
supply system to be supplied, serially connect the “ASLINK filter [Type ANF-01]” or “filter of COSEL
Co., Ltd. [Type EAC-06-472]” to 24 V and 0 V in the starting position of the side-by-side lines.
This will improve noise resistance, reduce the impact of crosstalk by transmission signals and
stabilize the signals.
In any case of power supply to the entire system from the master driving power supply or power
supply from the local power supply, insert a filter.
Insert the “ANF-01” regardless of installation method and distance when
complying with CE Standards.
Filter allowable power current
Filter of COSEL Co., Ltd.

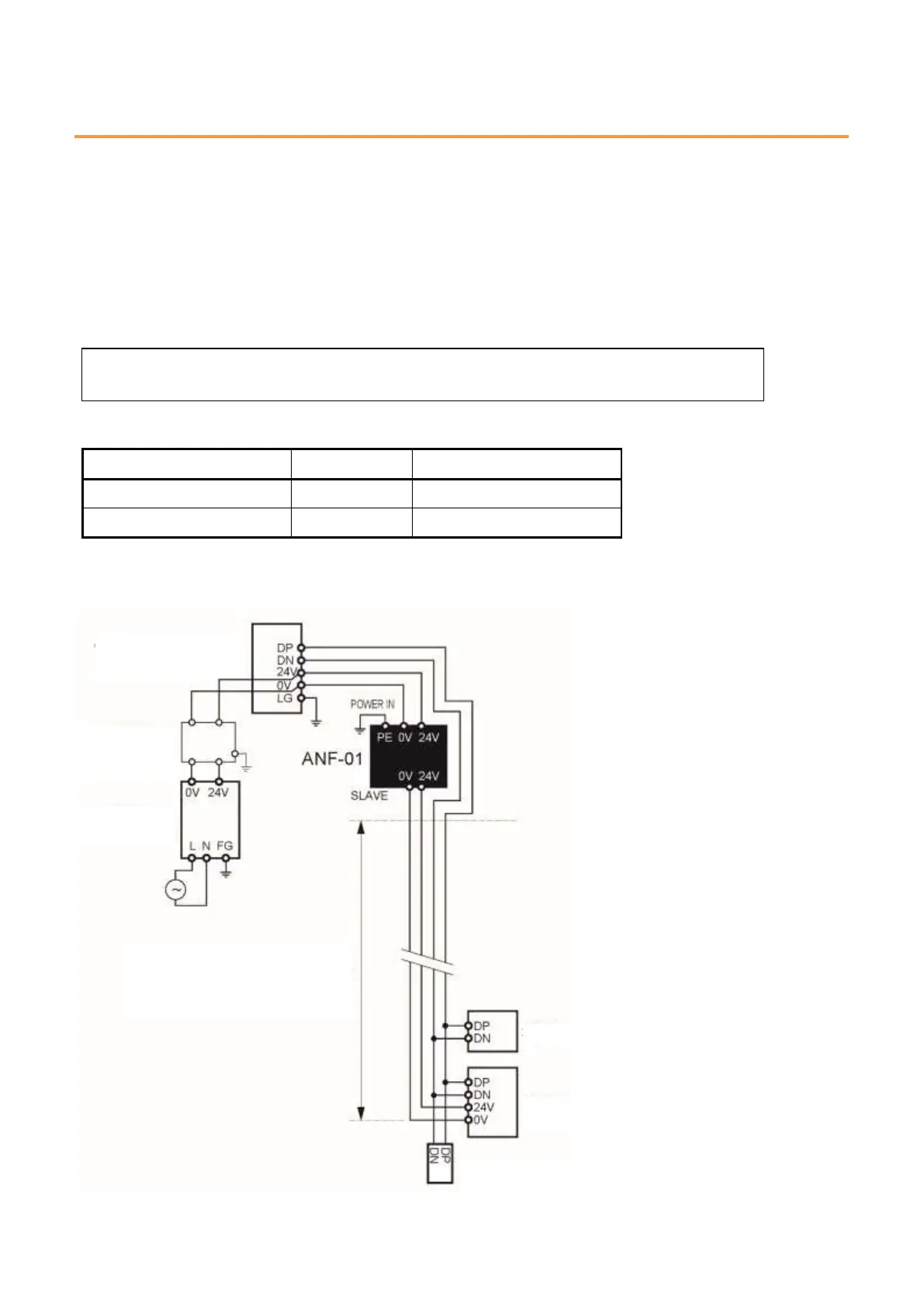

Connection example of ASLINK filter (ANF-01) for power supply to the entire system
General purpose power
supply filter
(Use if necessary.)
24V DC stabilized
power supply
If any of the side-by-side lines of
DP, DN, 24 V and 0 V exceeds
the total length of 50 m
