Connecting the Monitor
1. Connect power cord
Connect the power cord to a properly grounded AC outlet, then to the monitor.
2. Connect Analog video cable (D-Sub cable)
Make sure both monitor and computer are powered OFF. Connect the video
cable (D-Sub cable) to the computer.
3. Connect DVI cable (Optional)
Connect the DVI cable from DVI output of computer to the DVI input of the monitor.
4. Connect audio cable*
Connect one end of the audio cable to the back of the monitor and connectthe
other end to the computer’s audio out port.
5. Power-ON computer and monitor
Power-ON the computer, then Power-ON the monitor.
6. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)
Example: 1680 x 1050 @ 60Hz
Resolution Right-click on the Windows desktop > Properties > Settings >
“Desktop Area”. Set the resolution.
Refresh Rate (vertical frequency) See your graphic card’s user guide for
instructions.
Note:
Audio function is optional feature,its depend on your purchased monitor.

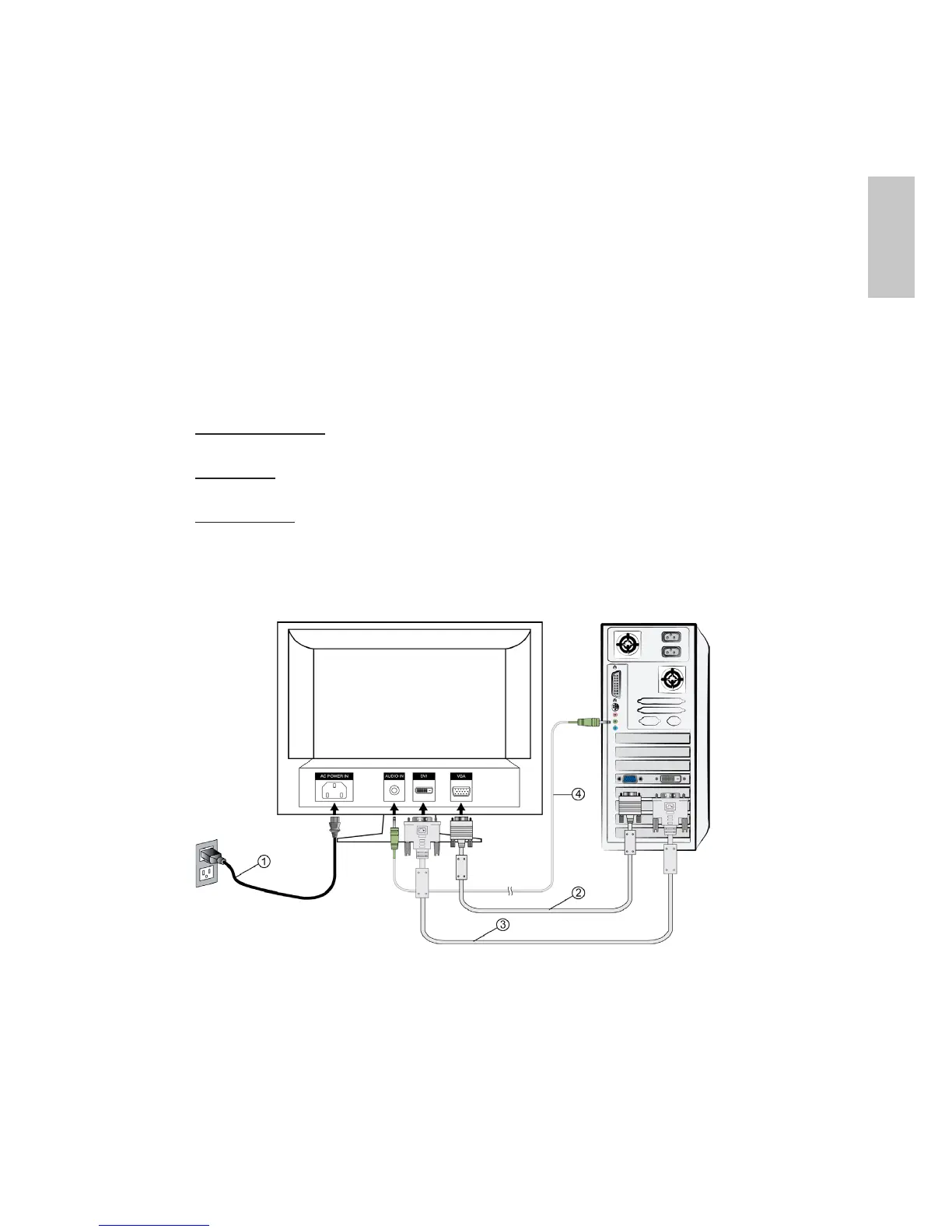

Connection Diagram (For example)
(Please be advised that some illustrations are simulated for your reference)
To Next Page
