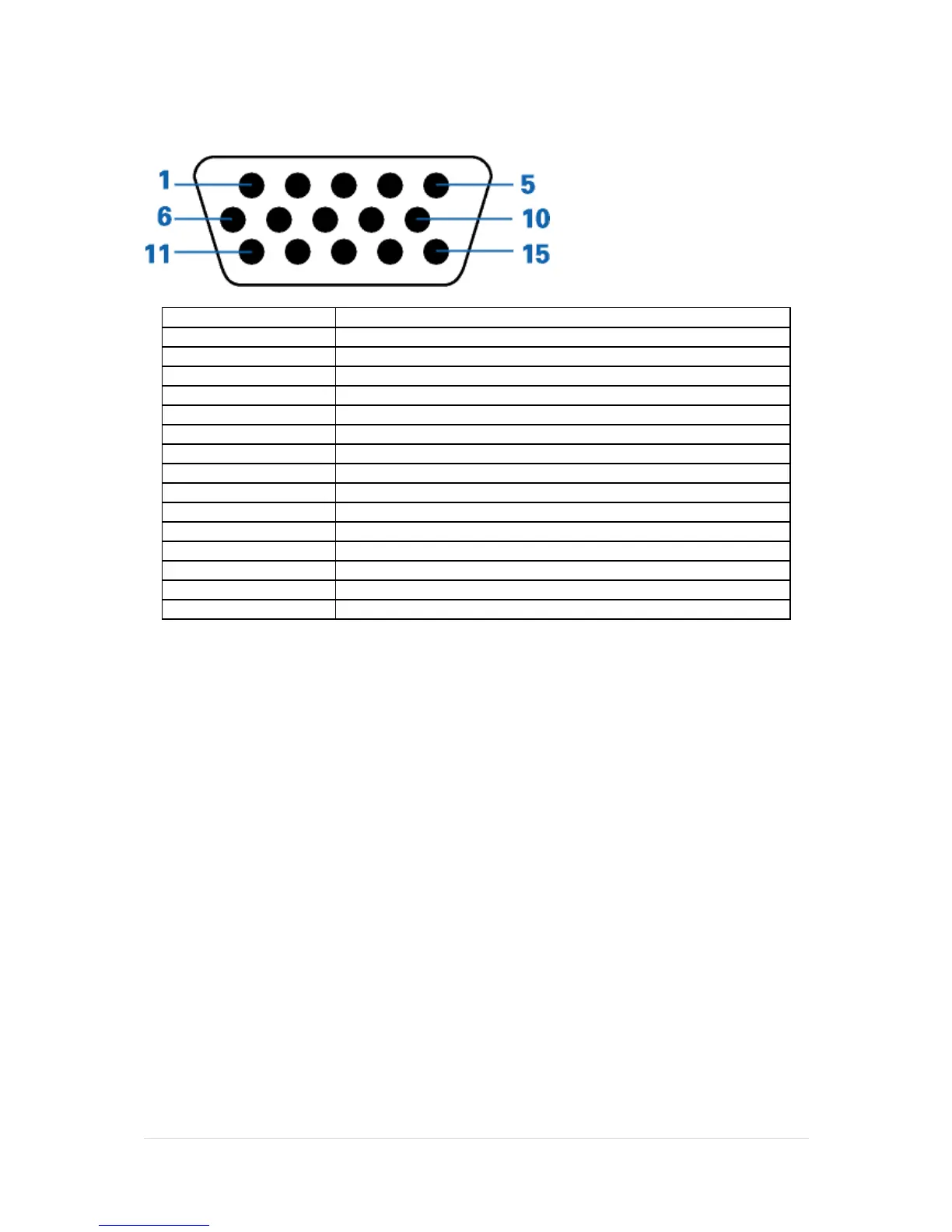

Pin Assignments

Pin Number 15-Pin Side of the Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 N.C.

5 Detect Cable

6 GND-R

7 GND-G

8 GND-B

9 +5V

10 Ground

11 N.C.

12 DDC-Serial data

13 H-sync

14 V-sync

15 DDC-Serial clock

PLUG & PLAY

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD.

It allows the monitor to inform the host system of its identity and, depending on the level of DDC used,

communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I

C protocol. The host can request EDID information

over the DDC2B channel.

Other manuals for AOC 2436Vwa

Questions and Answers:

Need help?

Do you have a question about the AOC 2436Vwa and is the answer not in the manual?

General

Pixel pitch	0.2715 x 0.2715 mm
Aspect ratio	16:9
Display diagonal	23.6 \
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	60000:1
Contrast ratio (typical)	-
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Digital vertical frequency	55 - 75 Hz
Digital horizontal frequency	31 - 83 kHz
Display brightness (typical)	300 cd/m²
HDCP	Yes
DVI-I ports quantity	0
Product color	Black
Power consumption (standby)	1 W
Power consumption (typical)	49 W
