AOC 2436Vwa User Manual

40

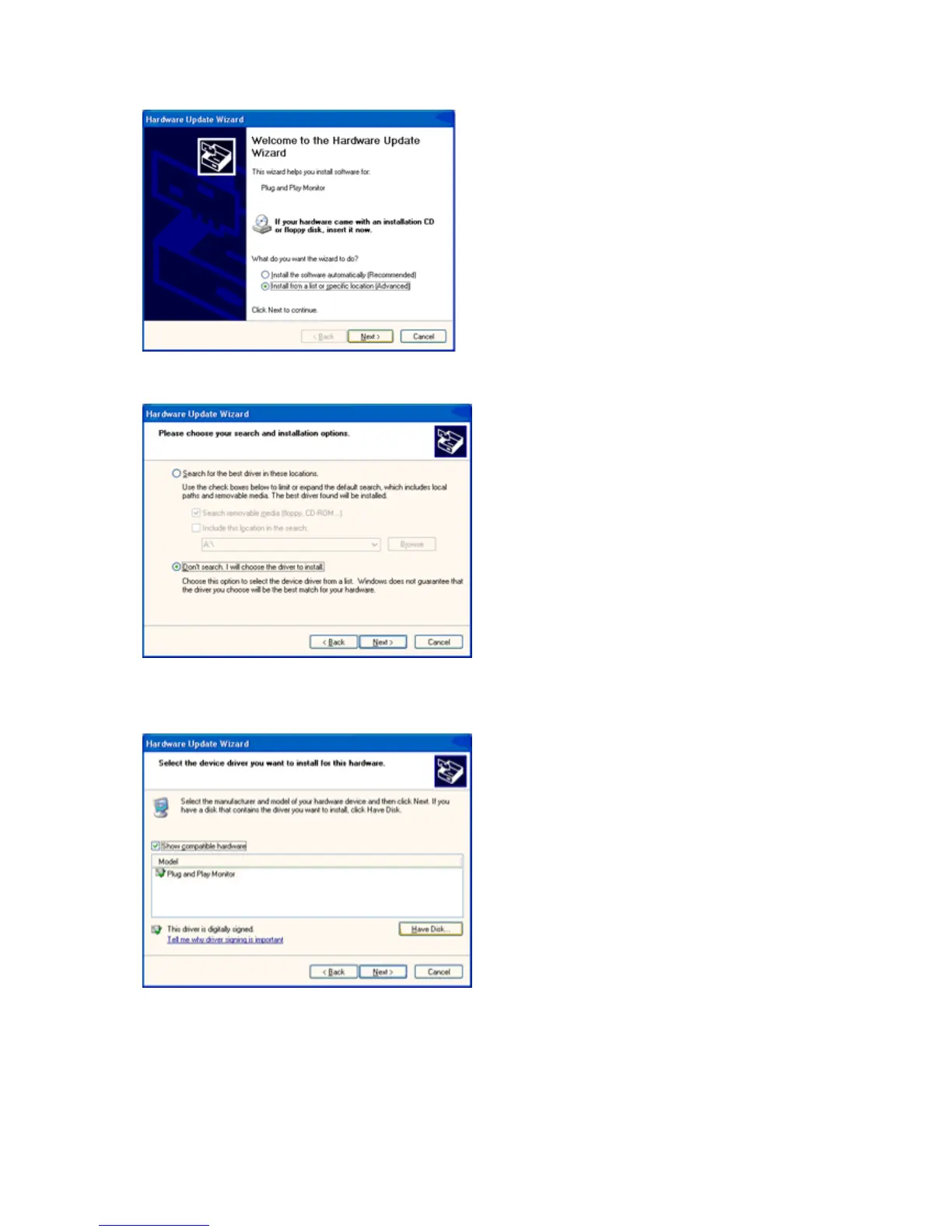

8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.
9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.
10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:
(CD-ROM Drive).
11. Click on the 'Open' button, then click the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message,
please click on the 'Continue Anyway' button.
13. Click on the 'Finish' button then the 'Close' button.
14. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

AOC 2436Vwa Specifications

General

Pixel pitch	0.2715 x 0.2715 mm
Aspect ratio	16:9
Display diagonal	23.6 \
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	60000:1
Contrast ratio (typical)	-
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Digital vertical frequency	55 - 75 Hz
Digital horizontal frequency	31 - 83 kHz
Display brightness (typical)	300 cd/m²
HDCP	Yes
DVI-I ports quantity	0
Product color	Black
Power consumption (standby)	1 W
Power consumption (typical)	49 W

Weight and Dimensions

Depth (without stand)	206 mm
Width (without stand)	582 mm
Height (without stand)	424 mm
Weight (without stand)	5500 g
