AOC 24P2QM User Manual

33

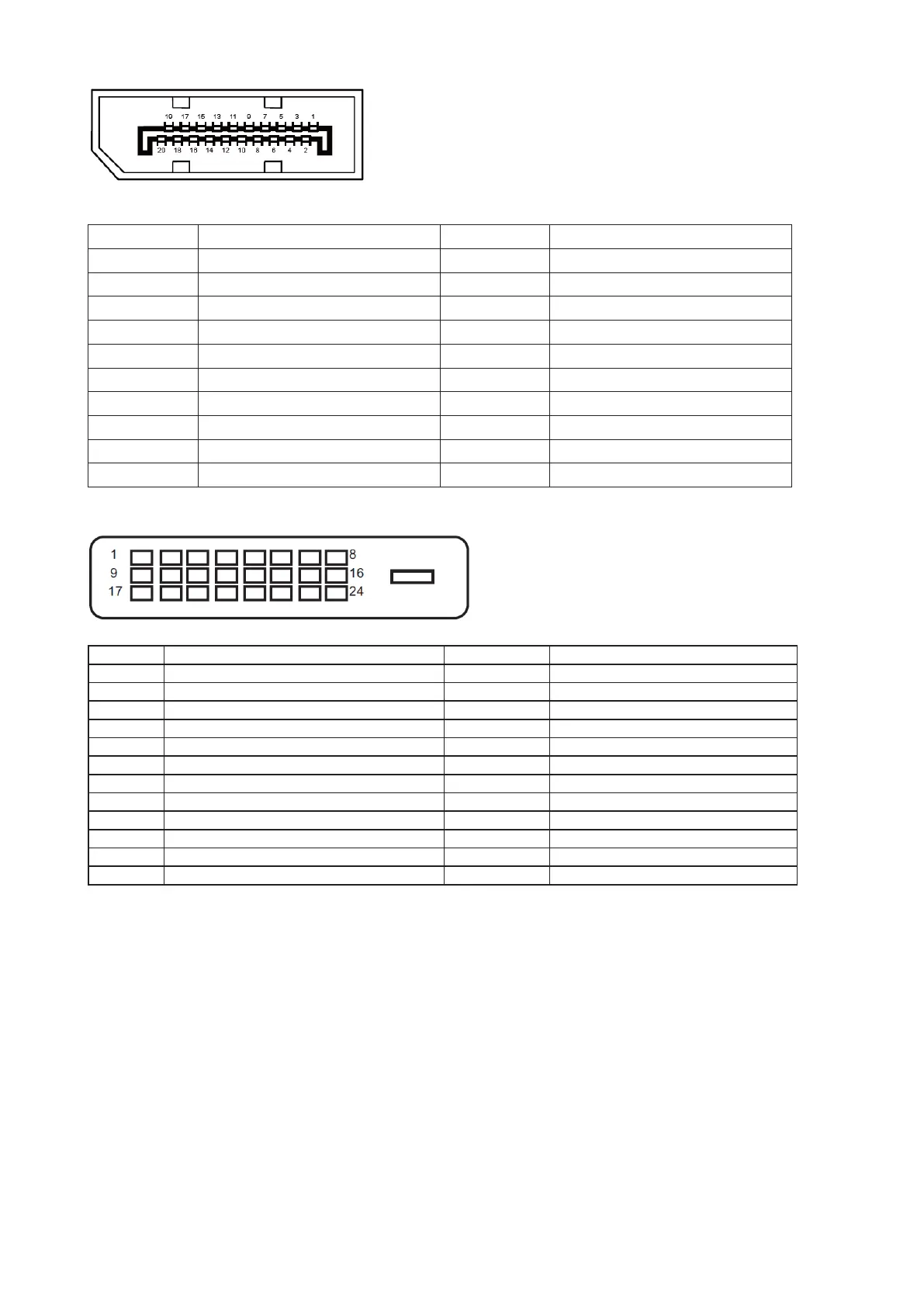

20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1
ML_Lane 3 (n)
11
GND
2
GND
12
ML_Lane 0 (p)
3
ML_Lane 3 (p)
13
CONFIG1
4
ML_Lane 2 (n)
14
CONFIG2
5
GND
15
AUX_CH(p)
6
ML_Lane 2 (p)
16
GND
7
ML_Lane 1 (n)
17
AUX_CH(n)
8
GND
18
Hot Plug Detect
9
ML_Lane 1 (p)
19
Return DP_PWR
10
ML_Lane 0 (n)
20
DP_PWR
24-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 TMDS data 2- 13 TMDS data 3+
2 TMDS data 2+ 14 +5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4 TMDS data 4- 16 Hot Plug Detect
5 TMDS data 4+ 17 TMDS data 0-
6 DDC Clock 18 TMDS data 0+
7 DDC Data 19 TMDS data 0/5 Shield
8 N.C. 20 TMDS data 5-
9 TMDS data 1- 21 TMDS data 5+
10 TMDS data 1+ 22 TMDS Clock Shield
11 TMDS data 1/3 Shield 23 TMDS Clock +
12 TMDS data 3- 24 TMDS Clock -
