AOC 7KLR

v2_123102

Operating Instructions

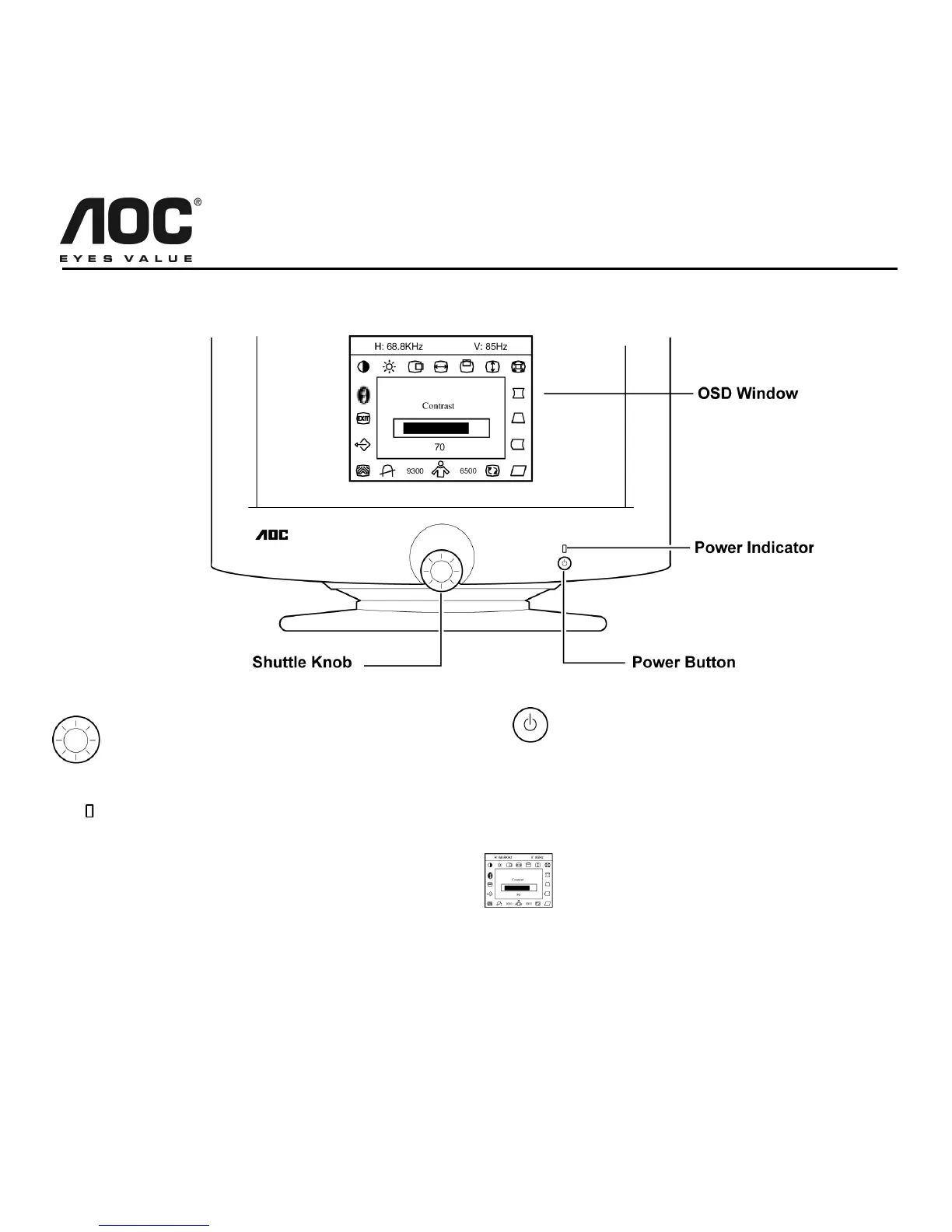

Front Panel Buttons

Shuttle Knob: Press this knob to open the

OSD window or select a highlighted function.

Rotate this knob to switch functions or adjust

settings.

Power Indicator: A green light indicates that

the monitor is on. An orange light indicates

that the monitor is in Off mode.

Note: This monitor automatically turns on

when it is plugged into an AC outlet.

Power: Press this button to put the monitor

into Off mode. The power indicator will turn

orange. Press and hold this button again to

restore the monitor to normal operation

mode.

On-screen Display (OSD): Press the

Shuttle Knob to open the OSD window

and adjust settings on your monitor.

(See next page.)
