AOC 917SW User Manual

19" LCD Color Monitor AOC 917Sw
9

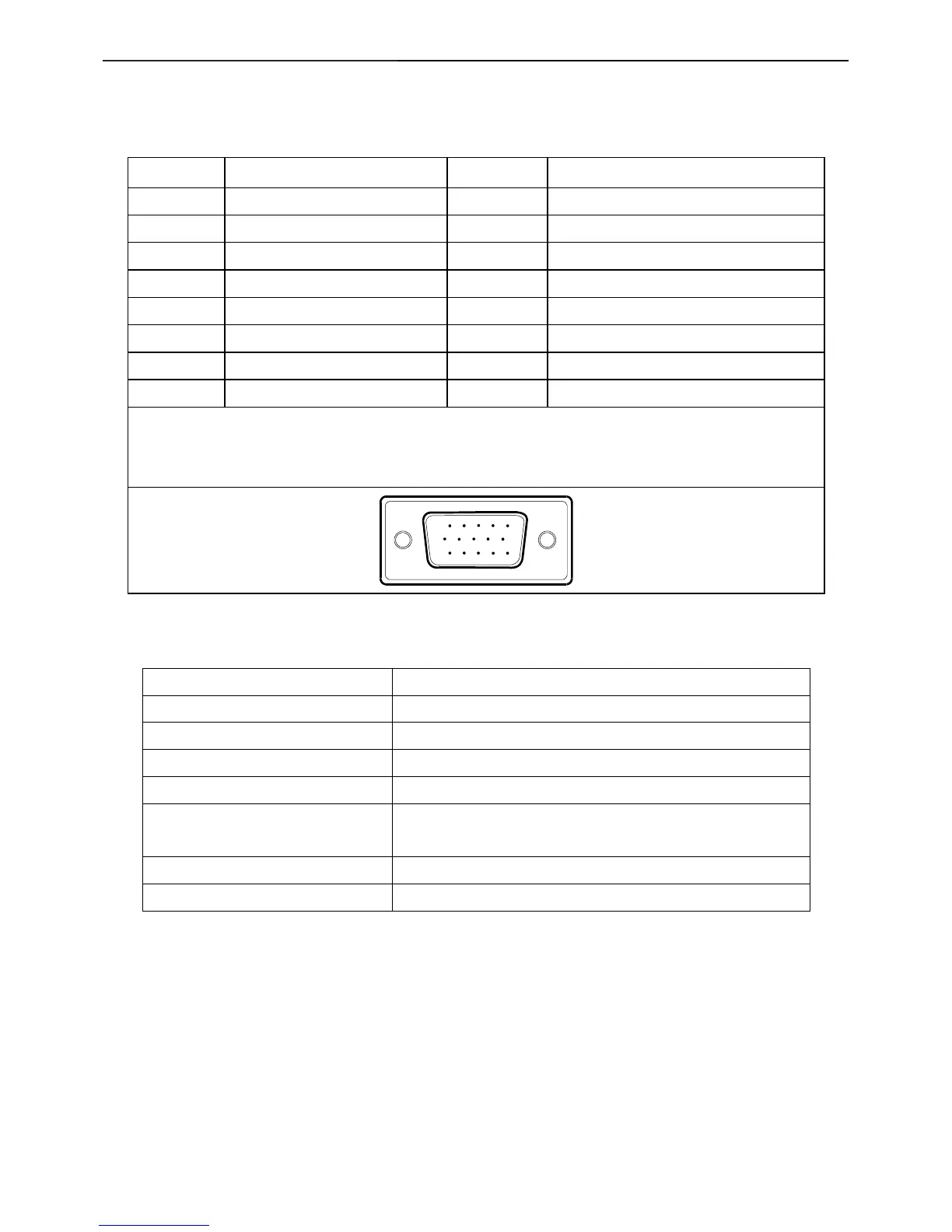

4. Input/Output Specification
4.1 Input Signal Connector
Analog connectors
Pin No. Description Pin No. Description
1. Red Video 9. +5V
2. Green Video 10. Ground
3. Blue Video 11. N.C.
4. N.C. 12. DDC-Serial Data
5. Detect Cable 13. H-Sync
6. Red Ground 14. V-Sync
7. Green Ground 15. DDC-Serial Clock
8. Blue Ground
VGA connector layout
15
6
10
11 15
4.2 Power Supply Requirements
A/C Line voltage range 100 V ~ 240 V
A/C Line frequency range
50 ± 3Hz, 60 ± 3Hz
Current 1.5A max at 100V; 0.8A max at 240 V
Peak surge current < 55A peak at 240 VAC and cold starting
Leakage current < 3.5mA
Power line surge
No advance effects (no loss of information or defect)
with a maximum of 1 half-wave missing per second
DC output Voltage
: 5VDC ± 5％; 12VDC± 5％
CURRENT
1.5Amp (5V) ；2 Amp (12V)
\

AOC 917SW Specifications

General

Pixel pitch	0.2835 x 0.2835 mm
Aspect ratio	16:10
Display diagonal	19 \
Display resolution	1440 x 900 pixels
Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 60 kHz
Viewable size, vertical	255 mm
Contrast ratio (typical)	3000:1
Viewable size, horizontal	408 mm
Viewing angle, horizontal	160 °
Display brightness (typical)	300 cd/m²
Certification	cUL, FCC, CE, TUV-S, EPA, ISO13406-2, RoHS, GOST, Pixel Fault Class II
Product color	Black
Market positioning	-
Compliance industry standards	DDC 1/2B/CI
Power requirements	110-240VAC 50/60Hz
Plug and Play	Yes
LED indicators	Stand-by
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	36 W
Package weight	4700 g

Weight and Dimensions

Depth (with stand)	204 mm
Width (with stand)	439 mm
Height (with stand)	358 mm
Weight (without stand)	3800 g
