Connecting the Monitor

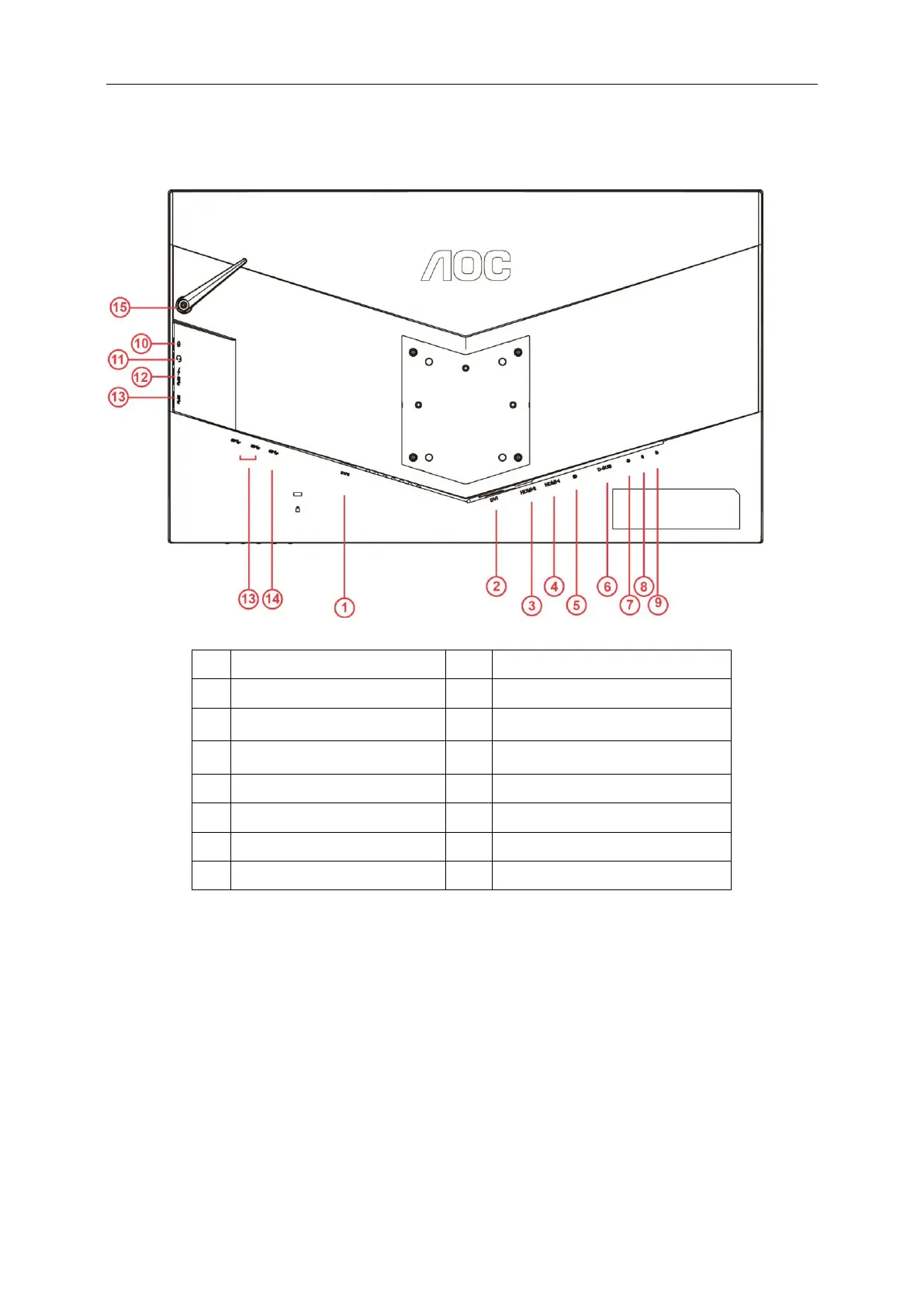

Cable Connections In Back of Monitor and Computer:
1
Power
9
Quick Switch port
2
DVI Dual-Link
10
Microphone in
3
HDMI-2(HDMI1.4)
11
Earphone( Combined with
Microphone)
4
HDMI-1(HDMI2.0)
12
USB3.0 downstream + fast
charging
5
DP
13
USB3.0 downstream
6
D-SUB
14
USB3.0 upstream
7
Audio line in
15
Headphone hook
8
Microphone out
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the DC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3 (Optional – Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.
4 (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the
monitor and connect the other end to the computer’s HDMI port.
5 (Optional –Requires a video card with Audio port) - Connect one end of the Audio cable to the back of the
monitor and connect the other end to the computer’s Audio port.
6 (Optional–Requires a video card with DP port) –Connect one end of the DP cable to the back of the monitor
and connect the other end to the computer’s DP port.
