Connecting the Monitor

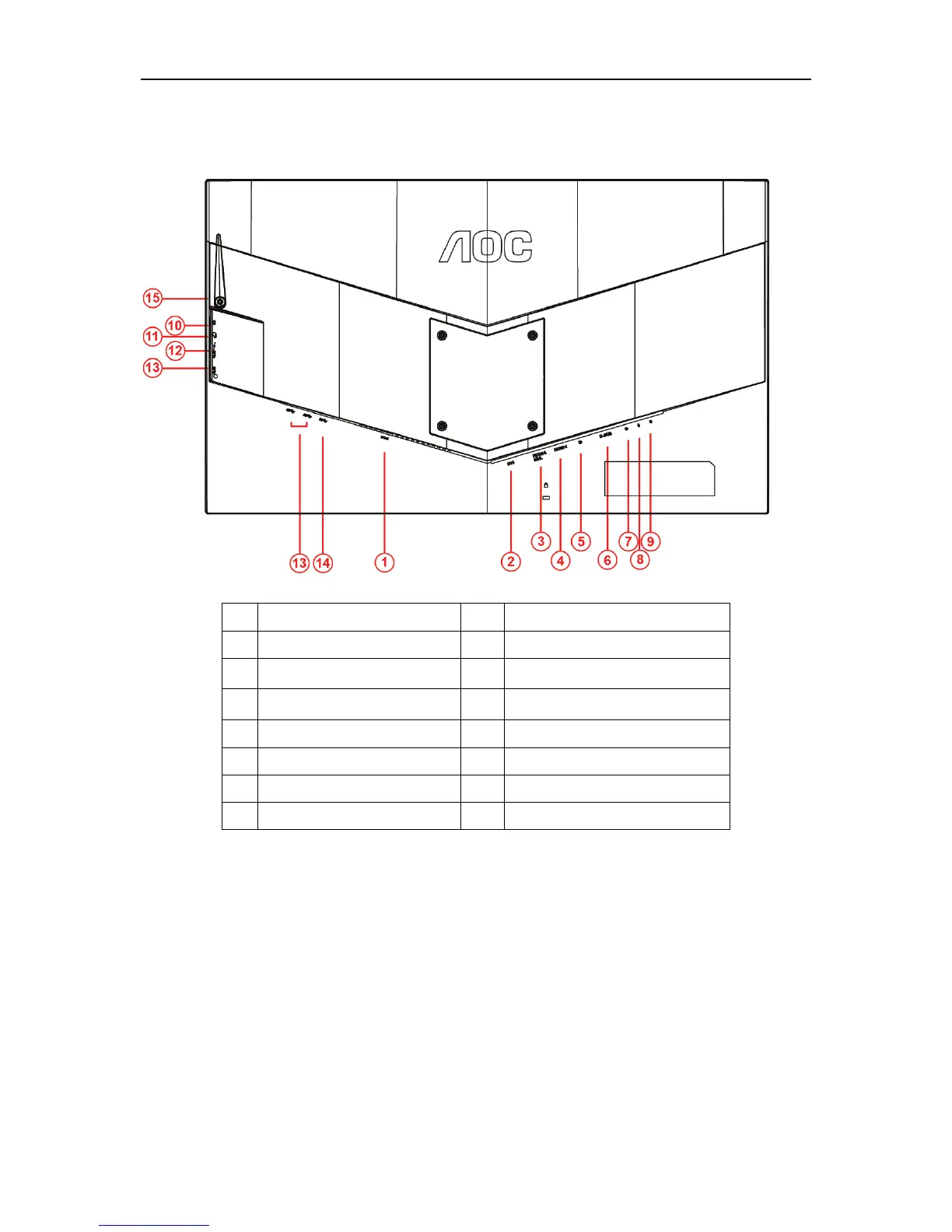

Cable Connections In Back of Monitor and Computer:

1 Power 9 Quick Switch port

2 DVI Dual-Link 10 Microphone in

3 HDMI-2(HDMI1.4)/MHL 11

Earphone( Combined with

Microphone)

4 HDMI-1(HDMI1.4/2.0) 12

USB3.0 downstream + fast

charging

5 DP 13 USB3.0 downstream

6 D-SUB 14 USB3.0 upstream

7 Audio line in 15 Headphone hook

8 Microphone out

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the DC port on the back of the monitor.

2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port..

3 (Optional – Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the monitor

and connect the other end to the computer’s DVI port.

4 (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the

monitor and connect the other end to the computer’s HDMI port.

5 (Optional –Requires a video card with Audio port) - Connect one end of the Audio cable to the back of the

monitor and connect the other end to the computer’s Audio port.

6 (Optional–Requires a video card with DP port) –Connect one end of the DP cable to the back of the monitor

and connect the other end to the computer’s DP port.
