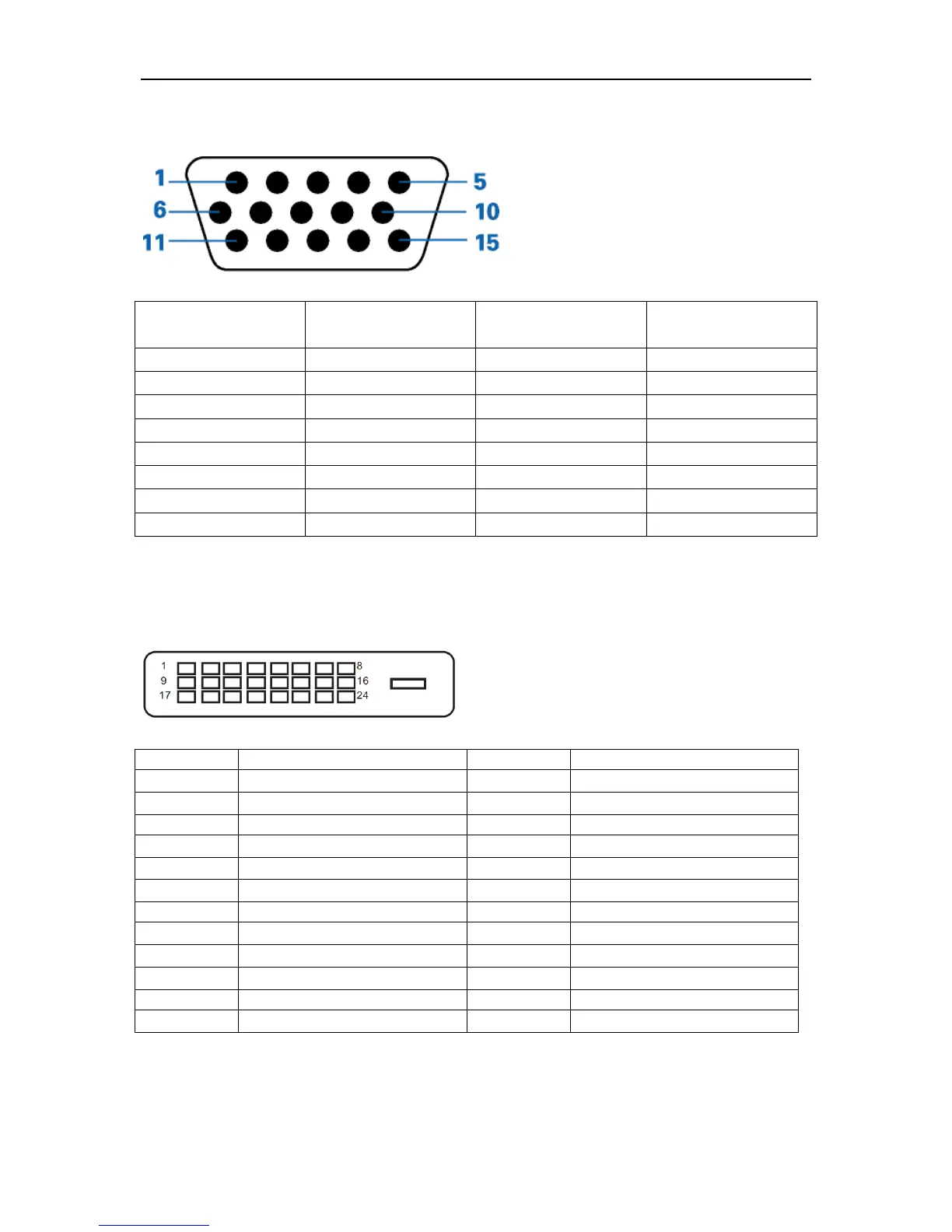

Pin Assignments
15-Pin Color Display Signal Cable
Pin Number
15-Pin Side of the
Signal Cable
Pin Number 15-Pin Side of the
Signal Cable
1
Video-Red
9
+5V
2
Video-Green
10
Ground
3
Video-Blue
11
N.C.
4
N.C.
12
DDC-Serial data
5
Detect Cable
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
24-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1 TMDS data 2－ 13 TMDS data 3＋
2
TMDS data 2＋
14
＋5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4 TMDS data 4－ 16 Hot Plug Detect
5 TMDS data 4＋ 17 TMDS data 0－
6 DDC Clock 18
TMDS data 0＋
7 DDC Data 19 TMDS data 0/5 Shield
8 N.C. 20 TMDS data 5－
9 TMDS data 1－ 21 TMDS data 5＋
10
TMDS data 1＋
22 TMDS Clock Shield
11
TMDS data 1/3 Shield
23
TMDS Clock +
12 TMDS data 3－ 24 TMDS Clock －

AOC AG271QX Specifications

General

Color	black/red, multi
Screen Type	led
Tiltable	yes
Webcam	no
OS Compatibility	windows
Screen Size	27 inches
Aspect Ratio	16:9
Resolution	2560 x 1440
Native Resolution	2560 x 1440
Refresh Rate	144hz
Horizontal Viewing Angle	170 degrees
Vertical Viewing Angle	160 degrees
Response Time	1 milliseconds
Brightness	350 candela per square meter
Contrast Ratio	50, 000, 000:1
Synchronization	freesync (amd adaptive sync)
Horizontal Scan Rate	160 kilohertz
Built-In Speakers	no
Power Consumption	47 watts
Width with Stand	24.5 inches
Net Weight without Stand	15 pounds
