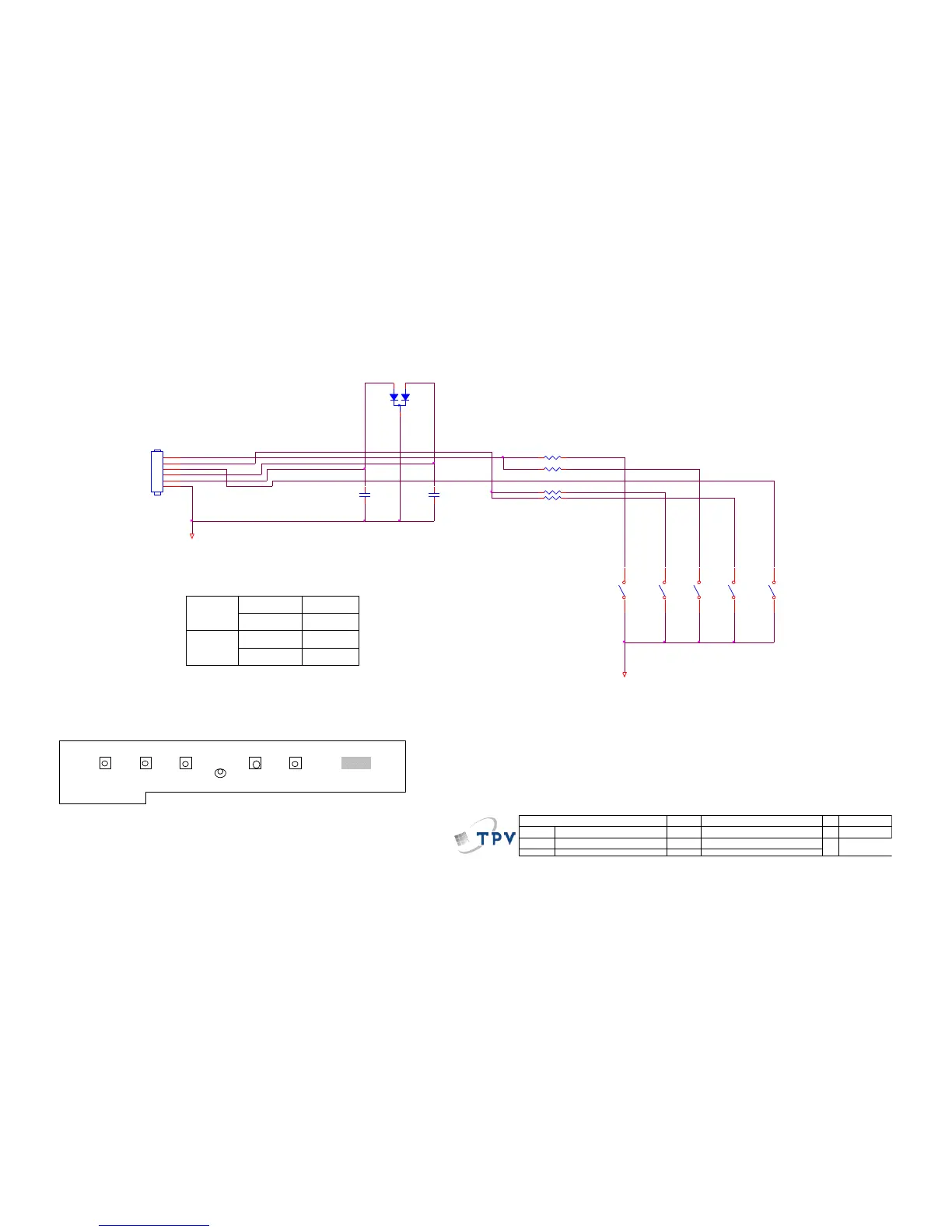

6.3 Key Board
715G4747K02000001C
UP
MENU
POWER
LBADC2
LED_1#
LED_2#
DC_POWERON
UB
SUR
LED001
1 3
2
DOWN
LBADC2
UP
(AUTO)(DOWN-)
(2K)
(UP+)
(0)
CONNECTOR
(MENU) (Power)
AUTO(2.0K)
LBADC1
0V
1.118V
MENU
LED
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 e950Sw B
N/A
B
2 2Tuesday, Nov ember 02, 2010
715G4747
<称爹>
2.0.key
G4747-K0B-000-0040-101026
SW002
SW
SW003
SW
SW001
SW
SW004
SW
R003 2KOHM 1% 1/10W
R002 0R01 1/10W
C001
NC/0.1uF 50V
R001 2KOHM 1% 1/10W
SW005
SW
C002
NC/0.1uF 50V
R004 1K 1/10W
DOWN
LBADC1
1.118V
0.673V(1K)
CN001
Wire Harness
1
2
3
4
5
6
SGND
SGND
AUTO
