AOC e2351f User Manual

13
Connecting the Monitor

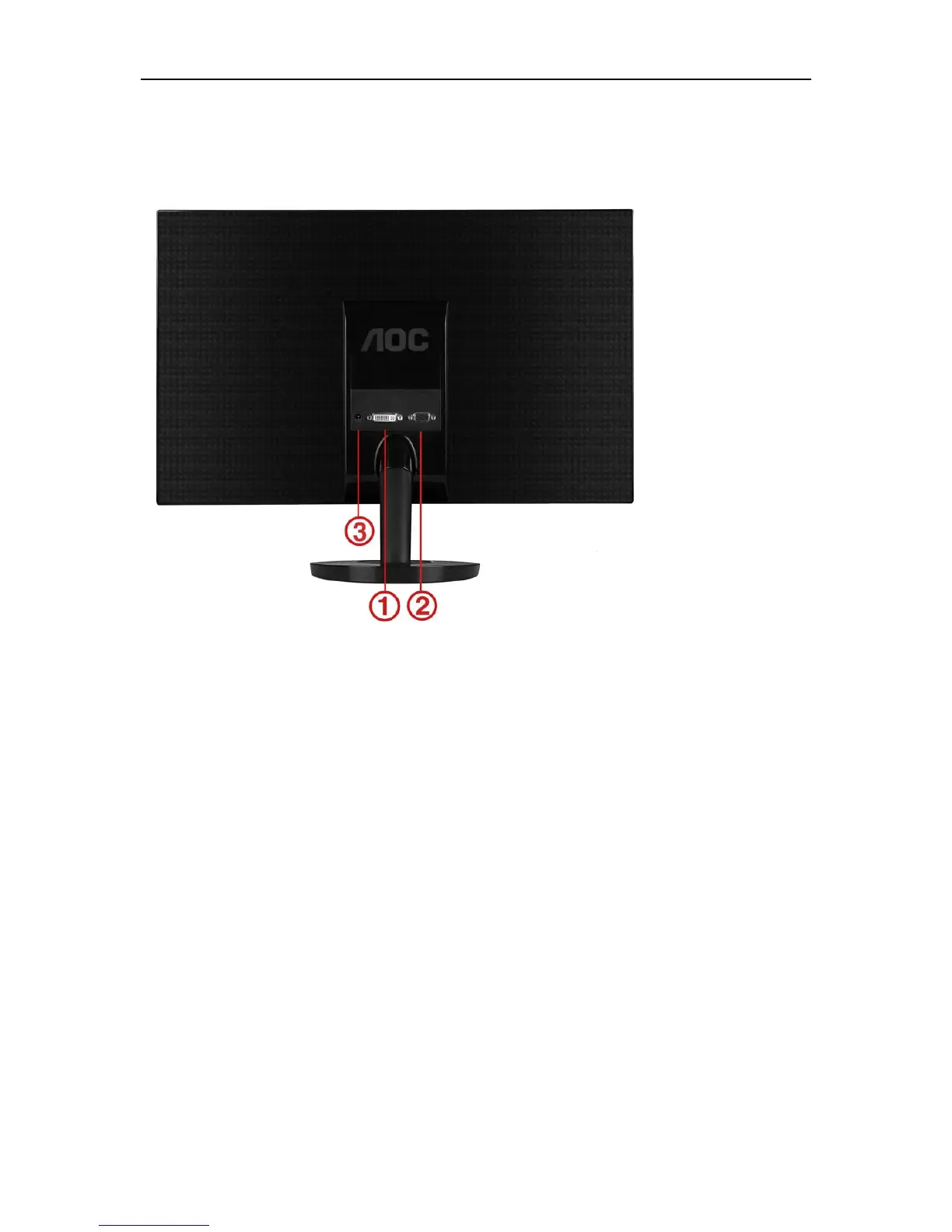

Cable Connections In Back of Monitor and Computer:
1 DVI
2 D-SUB
3 Power
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3 (Optional-Requires a video card with DVI port) -Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.
4 Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.

AOC e2351f Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Viewable size, vertical	286.4 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Viewing angle, horizontal	170 °
Digital vertical frequency	50 - 75 Hz
Digital horizontal frequency	64 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-I ports quantity	0
VESA mounting	-
Number of OSD languages	15
Panel mounting interface	- mm
On Screen Display (OSD) languages	ENG, FRE
Power consumption (max)	36 W
Power consumption (standby)	- W
Sustainability certificates	ENERGY STAR
Package depth	113 mm
Package width	609 mm
Package height	414 mm
Package weight	3830 g

Weight and Dimensions

Depth (without stand)	194 mm
Width (without stand)	551 mm
Height (without stand)	409 mm
Weight (without stand)	2480 g

Summary

Safety and Initial Setup

Safety Precautions

Covers national conventions, notes, cautions, and warnings for safe operation.

Power and Installation

Guidelines for safe power connection and physical installation of the monitor.

Setup and Connectivity

Details package contents, stand assembly, and monitor connection steps.

Viewing Angle Adjustment

Instructions for adjusting the monitor's tilt for optimal viewing.

Adjusting Display Settings

Setting Optimal Resolution

Guide to setting the monitor's screen resolution for best display quality.

Windows Vista Resolution

Steps to set optimal resolution in Windows Vista.

Windows XP Resolution

Steps to set optimal resolution in Windows XP.

Windows ME/2000 Resolution

Steps to set optimal resolution in Windows ME/2000.

Hotkeys and OSD Navigation

Explanation of monitor hotkeys and basic OSD menu operation.

OSD Settings Menu

Detailed guide to adjusting luminance, image, color, and picture settings.

Extra OSD Options

Configuration of OSD transparency, language, and other advanced settings.

Exit and LED Indicator

Options to exit OSD and information on LED status lights.

Software and Driver Installation

Monitor Driver Installation

Step-by-step instructions for installing monitor drivers on various Windows versions.

Windows 7 Driver

Guide for installing monitor drivers on Windows 7.

Windows Vista Driver

Guide for installing monitor drivers on Windows Vista.

Windows XP Driver

Guide for installing monitor drivers on Windows XP.

Windows 2000 & ME Driver

Instructions for installing drivers on Windows 2000 and ME.

AOC Utility Software

Overview of i-Menu, e-Saver, and Screen+ utility software for enhanced functionality.

Specifications, Troubleshooting, and Service

Troubleshooting Common Issues

Solutions for problems related to power, display, and picture quality.

Monitor Specifications

Technical details, preset modes, and pin assignments for the monitor.

Regulatory Compliance

Information on FCC, WEEE, and EPEAT declarations and compliance.

Warranty and Service Information

Details on warranty coverage and service procedures for different regions.

EASE Program

Information on the AOC EASE Program for monitor replacement and support.
