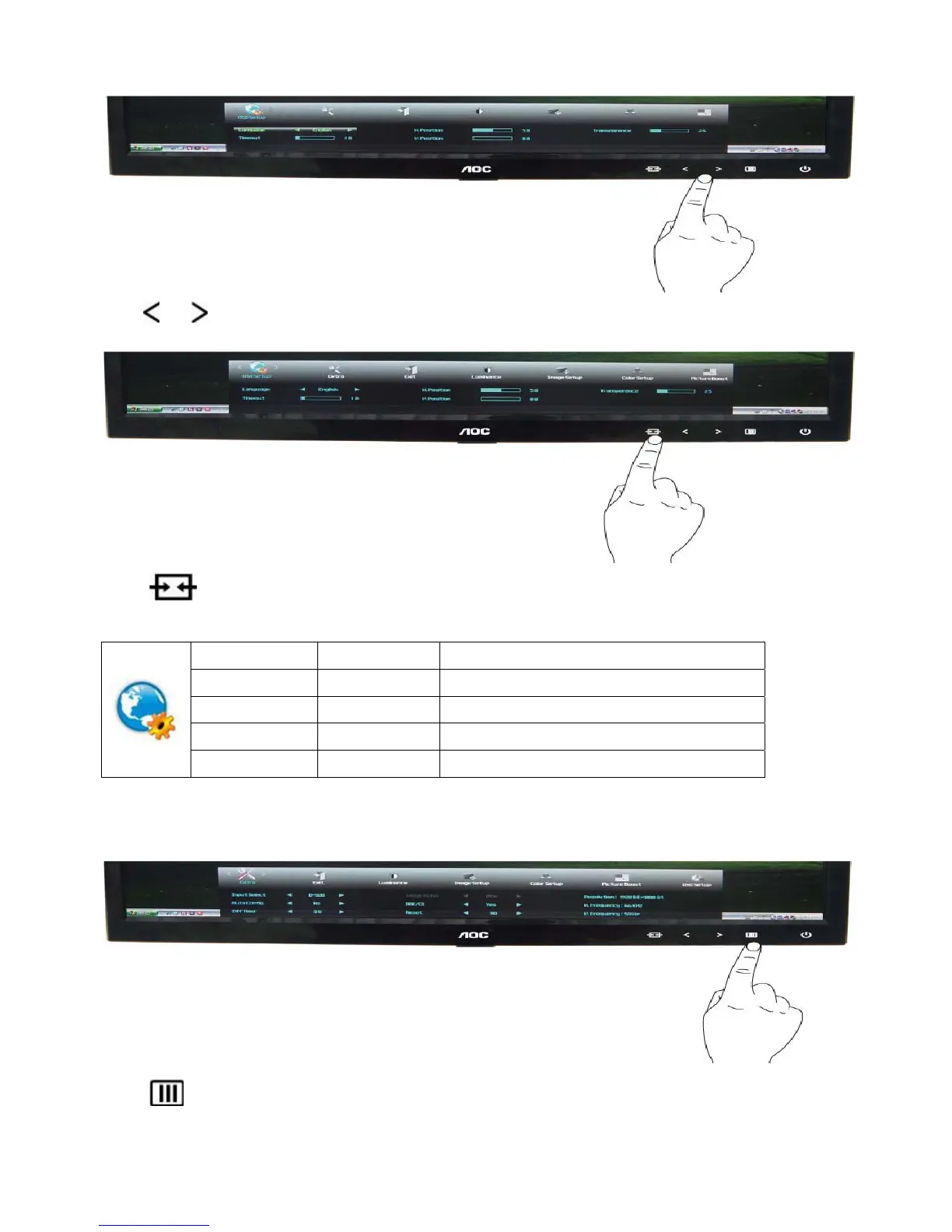

16
4
Press
o
r
to
adjust.
5
Press
to
exit
.
H.Position
0-100
Adjust the horizontal position of OSD
V.Position
0-100
Adjust the vertical position of OSD
Timeout
5-120
Adjust the OSD Timeout
Transparence
0-100
Adjust the transparence of OSD
Language
Select the OSD language
Extra
1
Press
(Menu)
to
display
menu.
15
17
Table of Contents
Default Chapter
1
Table of Contents
1
Revision List
2
Important Safety Notice
3
1 Monitor Specification
4
2 LCD Monitor Description
5
3 Operation Instruction
6
General Instructions
6
Hotkeys
6
OSD Setting
7
Image Setup
10
Osd Setup
15
4 Input/Output Specification
19
Input Signal Connector
20
Factory Preset Display Modes
20
Panel Specification
21
5 Block Diagram
24
6 Schematic
25
Main Board
25
Key Board
31
7 PCB Layout
32
Main Board
32
Key Board
34
8 Maintainability
35
Equipments and Tools Requirement
35
Trouble Shooting
36
9 White-Balance, Luminance Adjustment
40
10 Monitor Exploded View
42
11 BOM List
44
Other manuals for AOC e2351Fh
User Manual
58 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the AOC e2351Fh and is the answer not in the manual?
Ask a question
