Page #48 background imageLoading...

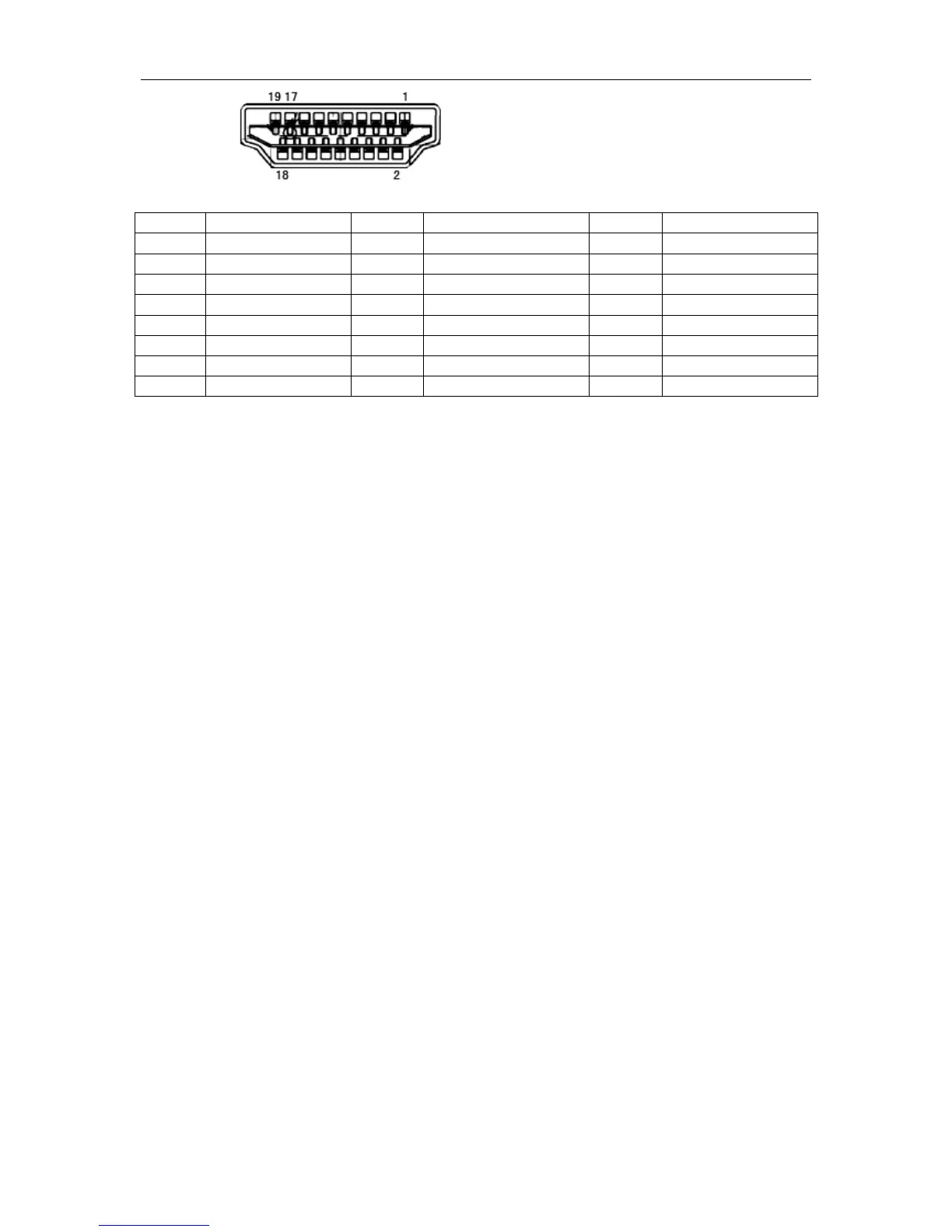

Page #48 background image
48
Pin No.
Signal Name Pin No. Signal Name Pin No. Signal Name
1
TMDS Data 2+ 9 TMDS Data 0 17 DDC/CEC Ground
2
TMDS Data 2 Shield 10 TMDS Clock + 18 +5V Power
3
TMDS Data 2 11 TMDS Clock Shield 19 Hot Plug Detect
4
TMDS Data 1+ 12 TMDS Clock
5
TMDS Data 1Shield 13 CEC
6
TMDS Data 1 14 Reserved (N.C. on device
7
TMDS Data 0+ 15 SCL
8
TMDS Data 0 Shield 16 SDA
