AOC E2727SHE User Manual

57

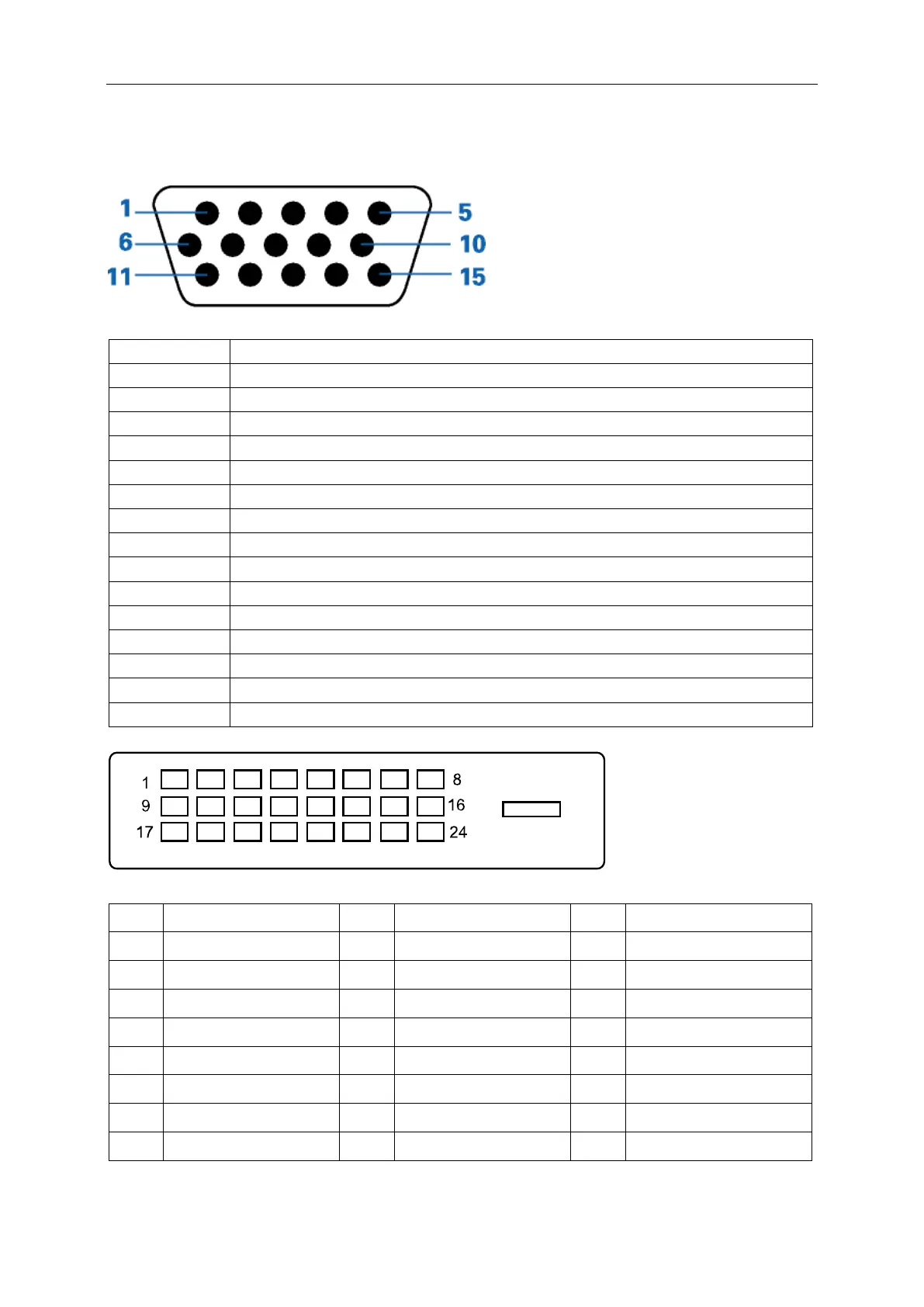

Pin Assignments
15-Pin Color Display Signal Cable
Pin NO.
Signal Name
1 Video-Red
2
Video-Green
3
Video-Blue
4 N.C.
5
Detect Cable
6 GND-R
7
GND-G
8
GND-B
9 +5V
10
Ground
11 N.C.
12
DDC-Serial data
13
H-sync
14 V-sync
15
DDC-Serial clock
24-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2- 9. TMDS Data 1- 17. TMDS Data 0-
2. TMDS Data 2+ 10. TMDS Data 1+ 18. TMDS Data 0+
3. TMDS Data 2/4 Shield 11. TMDS Data 1/3 Shield 19. TMDS Data 0/5 Shield
4. TMDS Data 4- / N.C. 12. TMDS Data 3- / N.C. 20. TMDS Data 5- / N.C.
5. TMDS Data 4+ / N.C. 13. TMDS Data 3+ / N.C. 21. TMDS Data 5+ / N.C.
6. DDC Clock 14. +5V Power 22. TMDS Clock Shield
7. DDC Data 15. Ground（for +5V） 23. TMDS Clock +
8. N.C. 16. Hot Plug Detect 24. TMDS Clock -
