Connecting the Monitor

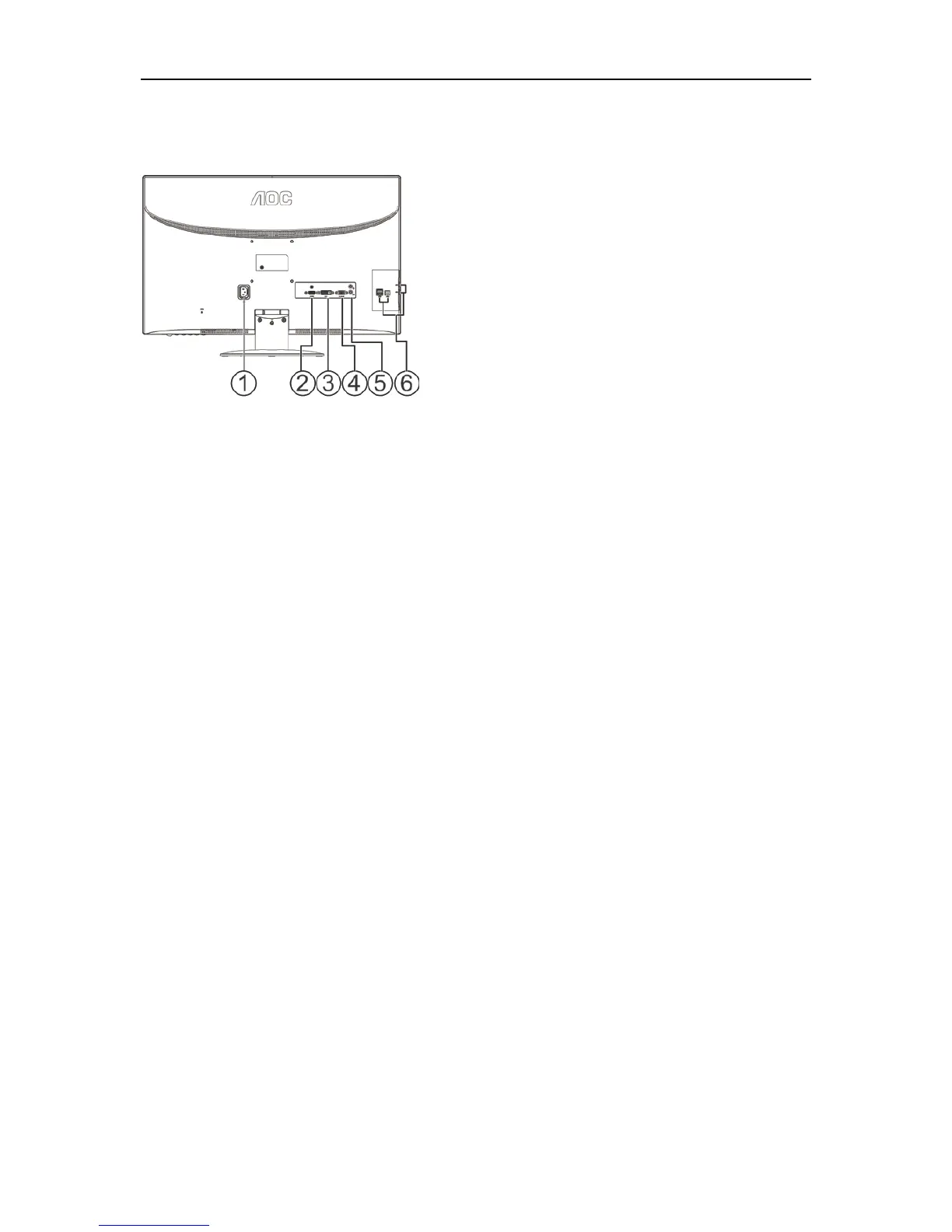

Cable Connections In Back of Monitor and Computer:
1. Power
2. HDMI
3. DVI
4. D-SUB
6. Audio
7. USB
To protect equipment, always turn off the PC and LCD monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3. Connect one end of the DVI cable to the back of the monitor and connect the other end to the computer’s DVI
port.
4. (Optional – Requires a video card with HDMI) - Connect one end of the HDMI/Displayport cable to the back of
the monitor and connect the other end to the computer’s HDMI.
5. Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
