AOC e2752Vh - Pin Assignments

52

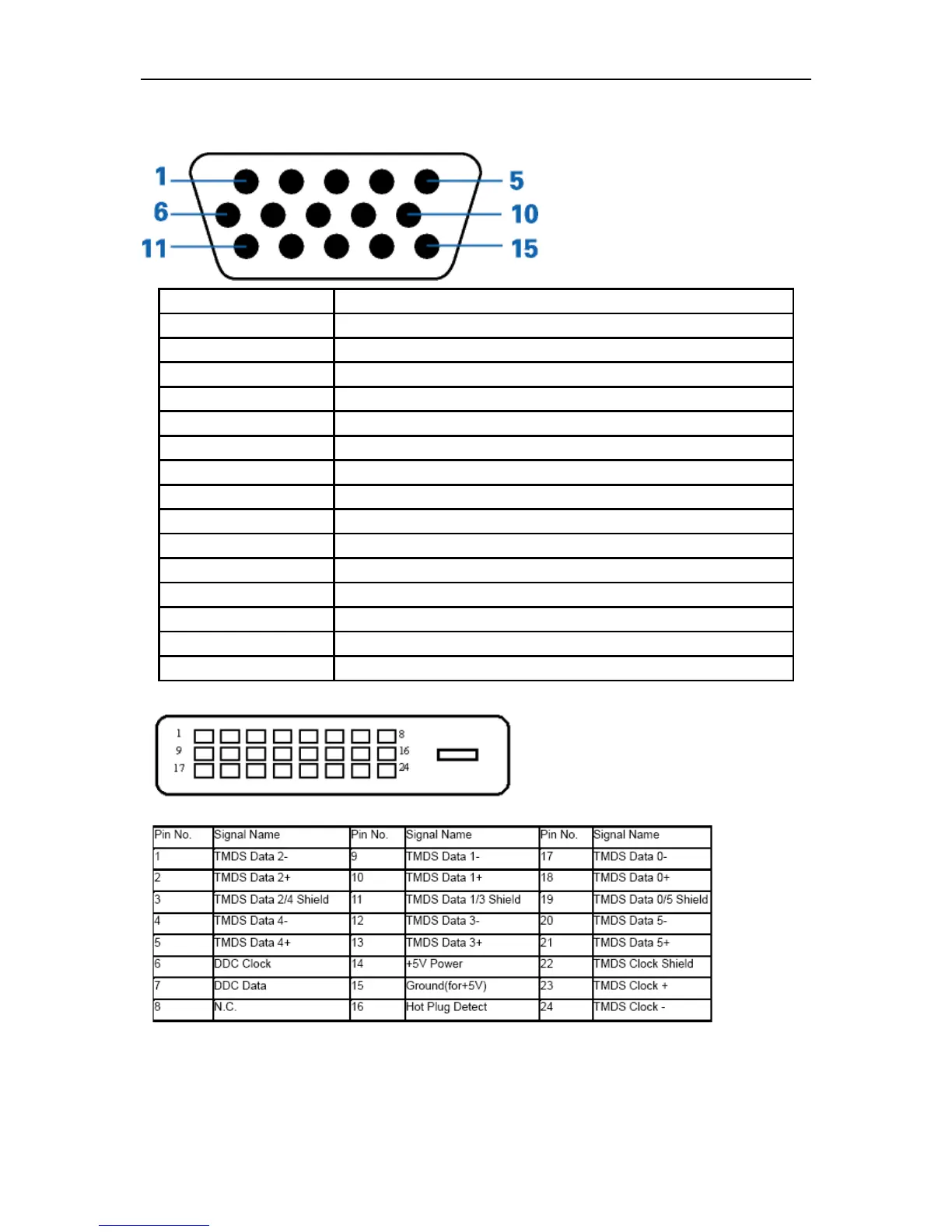

Pin Assignments
Pin Number 15-Pin Side of the Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4 N.C.
5
Detect Cable
6
GND-R
7
GND-G
8 GND-B
9
+5V
10
Ground
11 N.C.
12
DDC-Serial data
13
H-sync
14
V-sync
15 DDC-Serial clock
